39 - Junction Connector (CAN Front) Inner Circuit
39 - Junction Connector (CAN Front) Inner Circuit

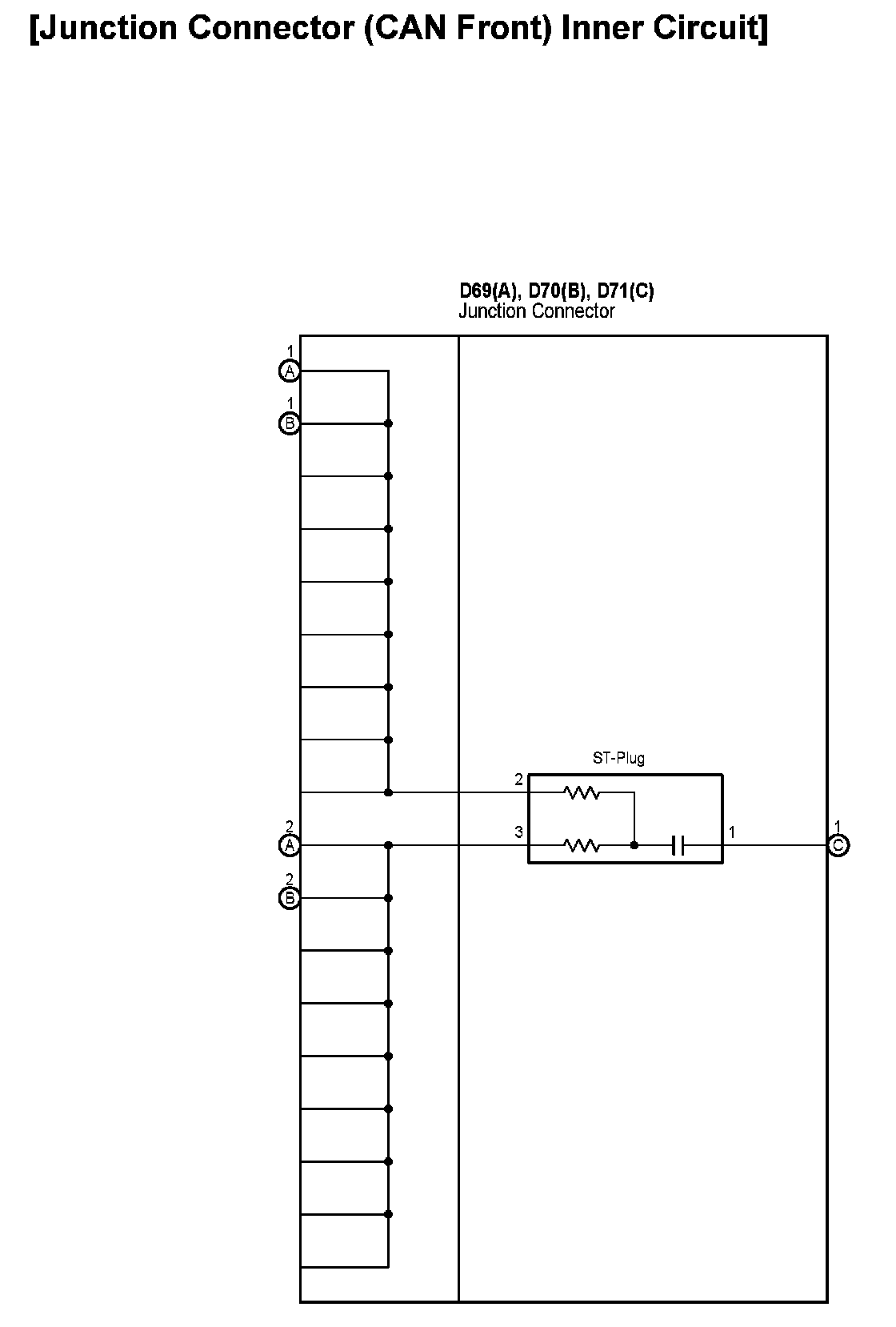

39 - Junction Connector (CAN Front) Inner Circuit:
