Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Driver Side J/B Assembly
Driver Side J/B Assembly

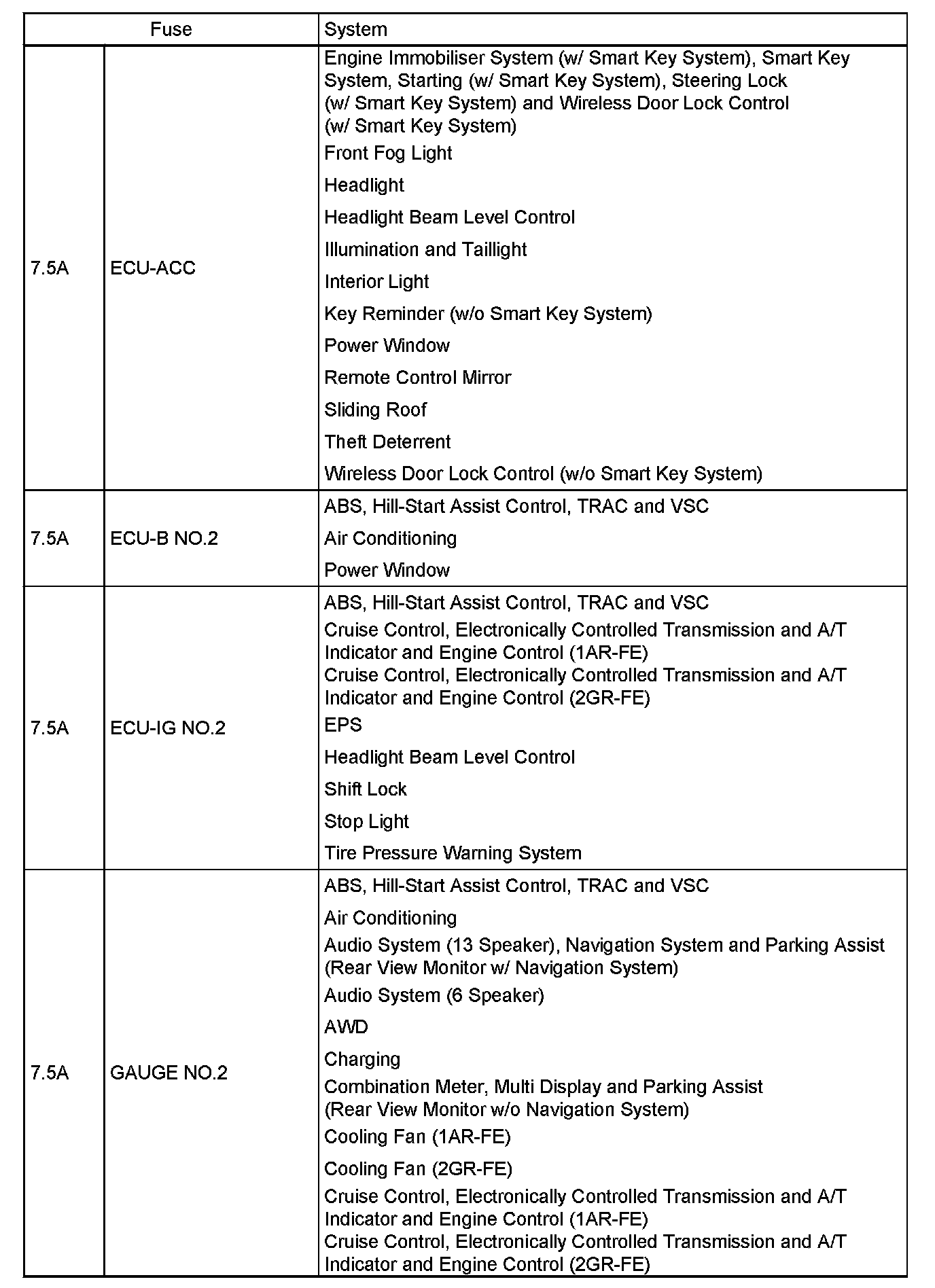

Driver Side J/B Assembly:

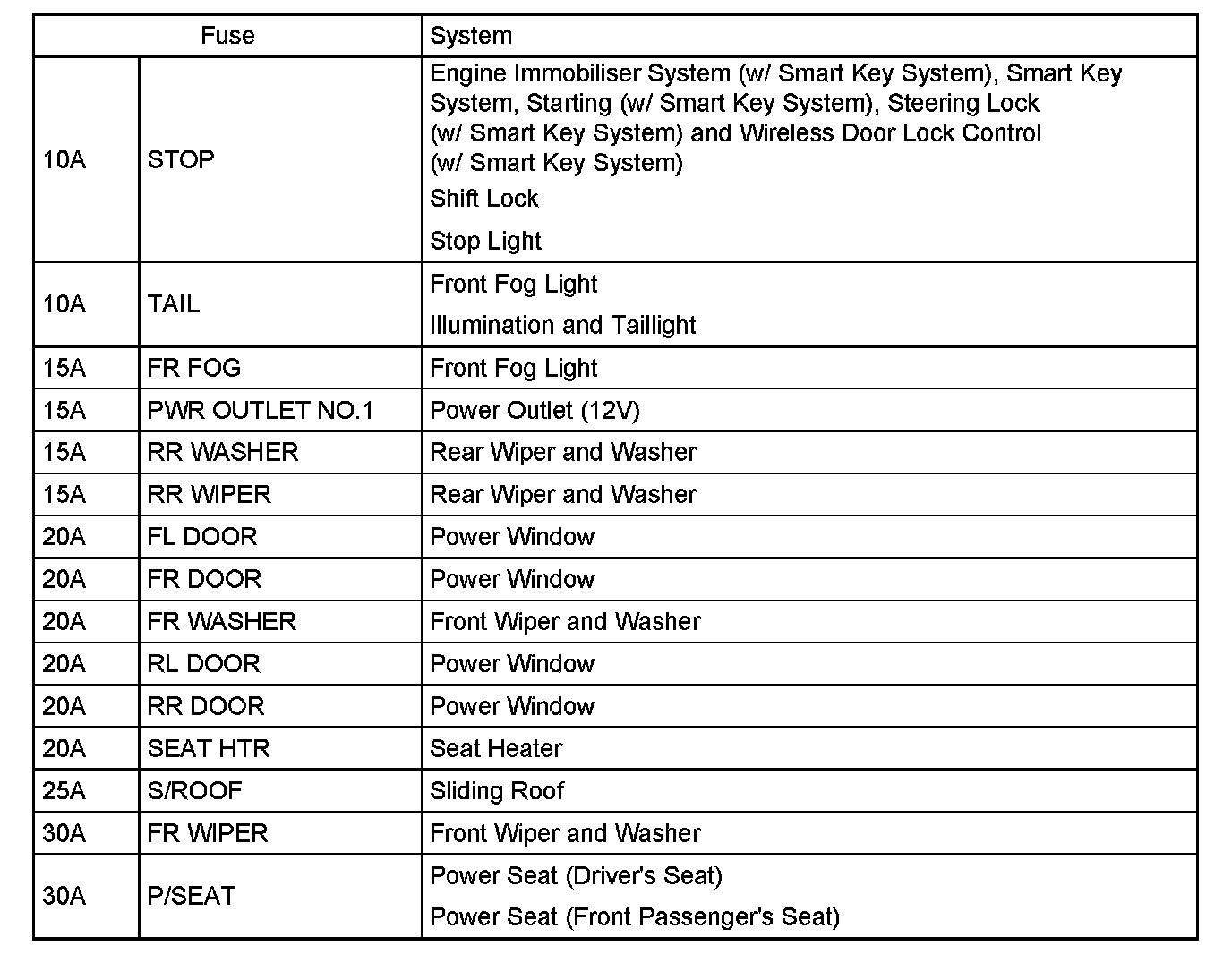

Driver Side J/B Assembly:

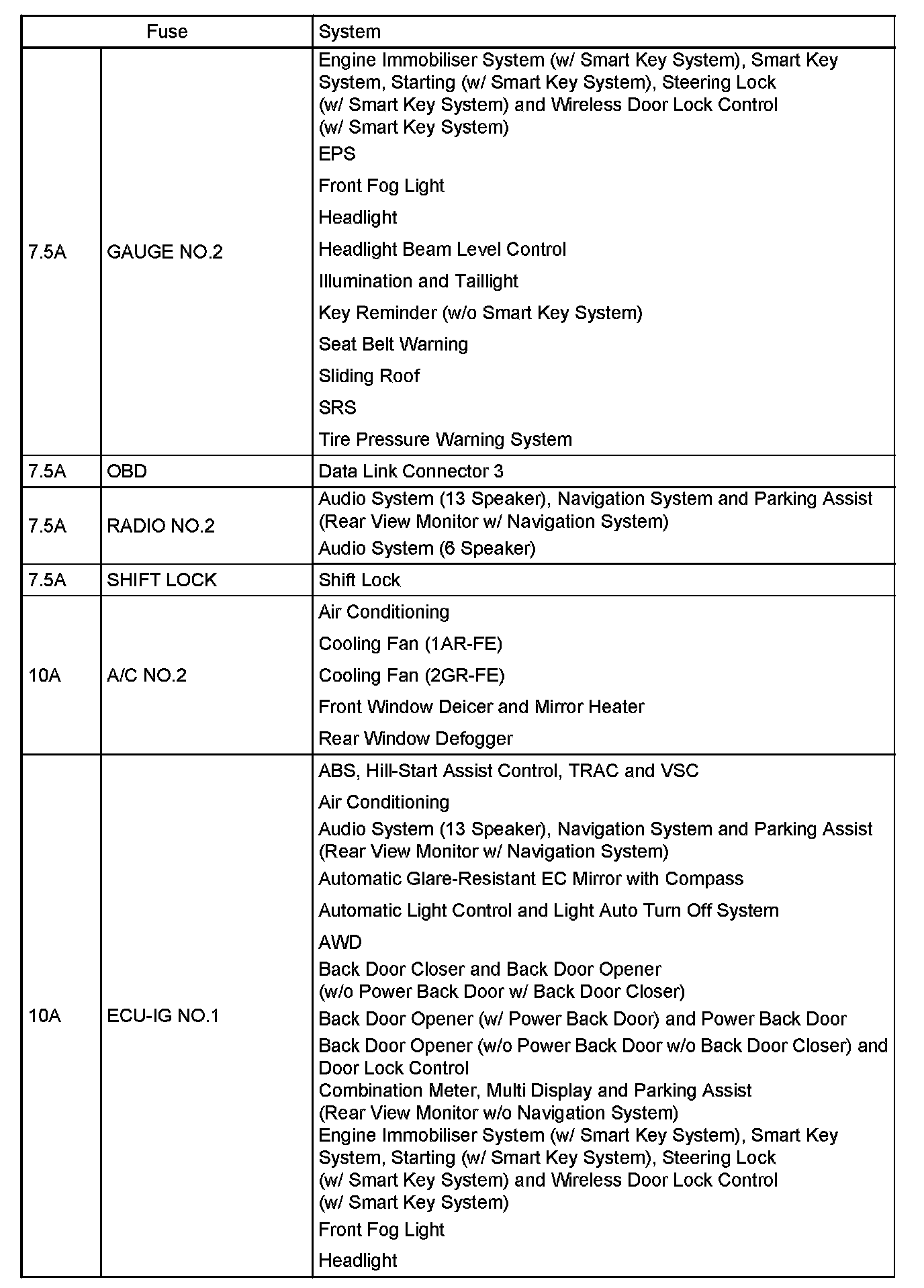

Driver Side J/B Assembly:
Driver Side J/B Assembly:
Driver Side J/B Assembly:
