Water Pump: Testing and Inspection

2GR-FE COOLING: WATER PUMP: ON-VEHICLE INSPECTION

1. REMOVE V-RIBBED BELT

Removal

2. INSPECT WATER PUMP ASSEMBLY

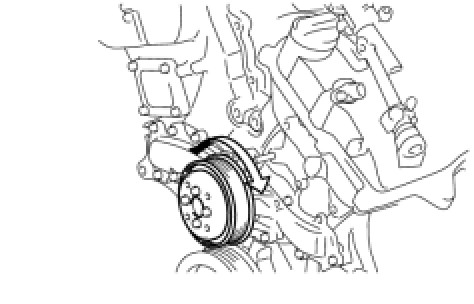

(a) Turn the pulley, and check that the water pump bearing moves smoothly and noiselessly.





If the bearing does not move smoothly and noiselessly, replace the water pump assembly.

3. INSTALL V-RIBBED BELT

Installation
