Home
>>
Toyota
>>
2012
>>
Venza FWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Water Pump
>>
Service and Repair
>>
Components
Components

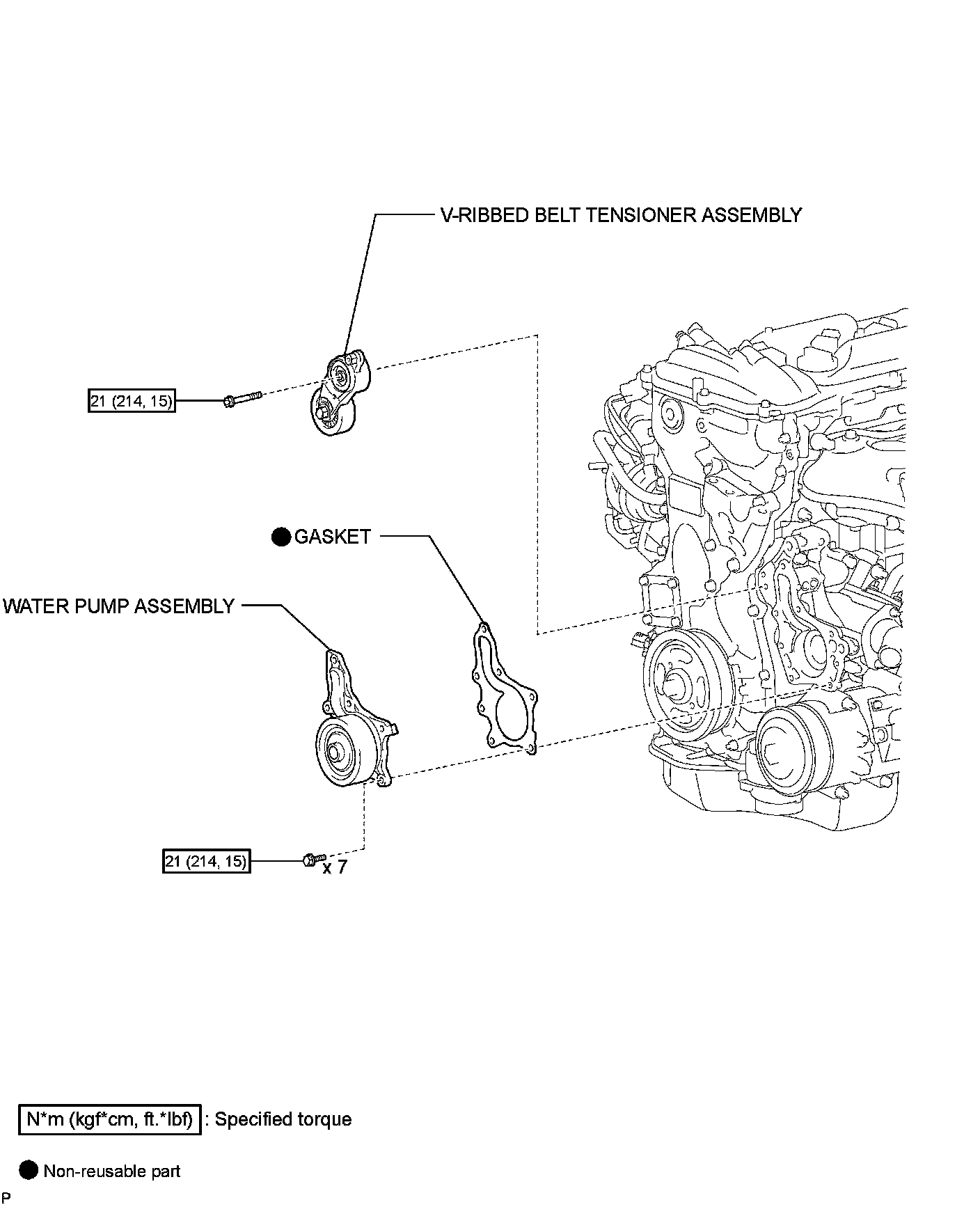

1AR-FE COOLING: WATER PUMP: COMPONENTS
