Power Back Door System
>>

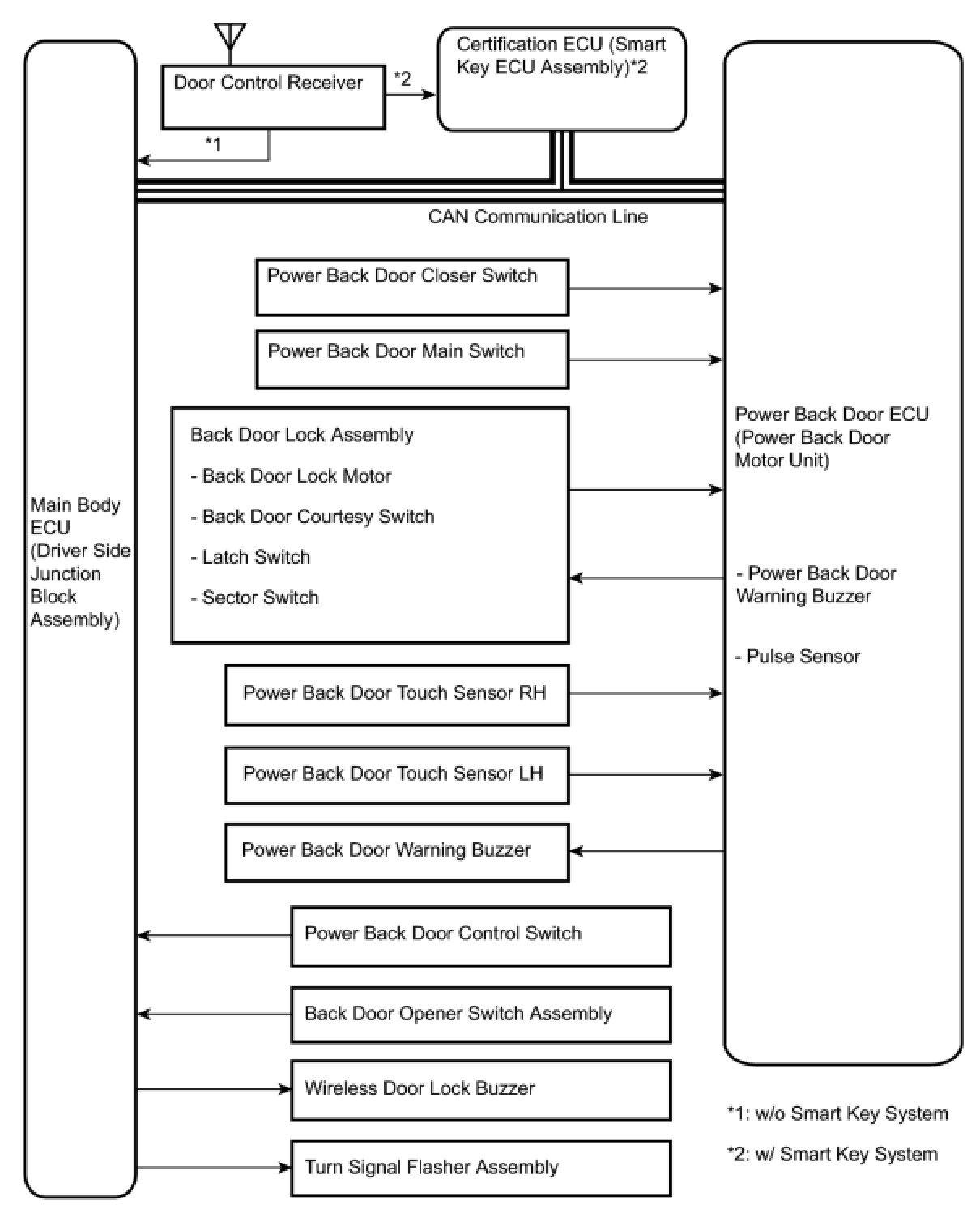

System Diagram
System Diagram
DOOR / HATCH: POWER BACK DOOR SYSTEM: SYSTEM DIAGRAM

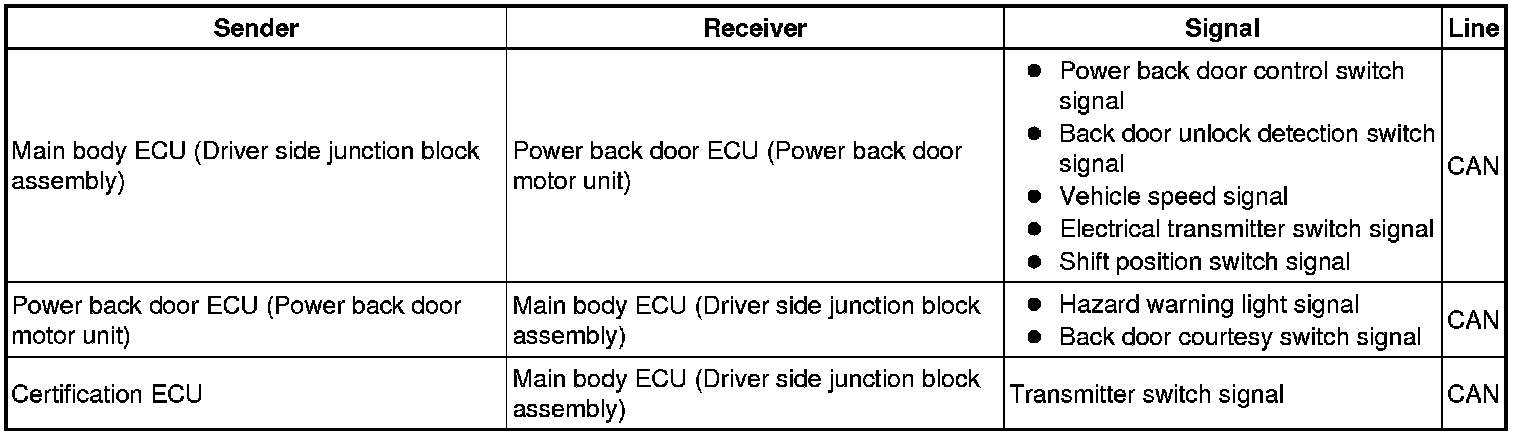

Communication Table
