Garage Door Opener Transmitter
>>
Description and Operation
>>

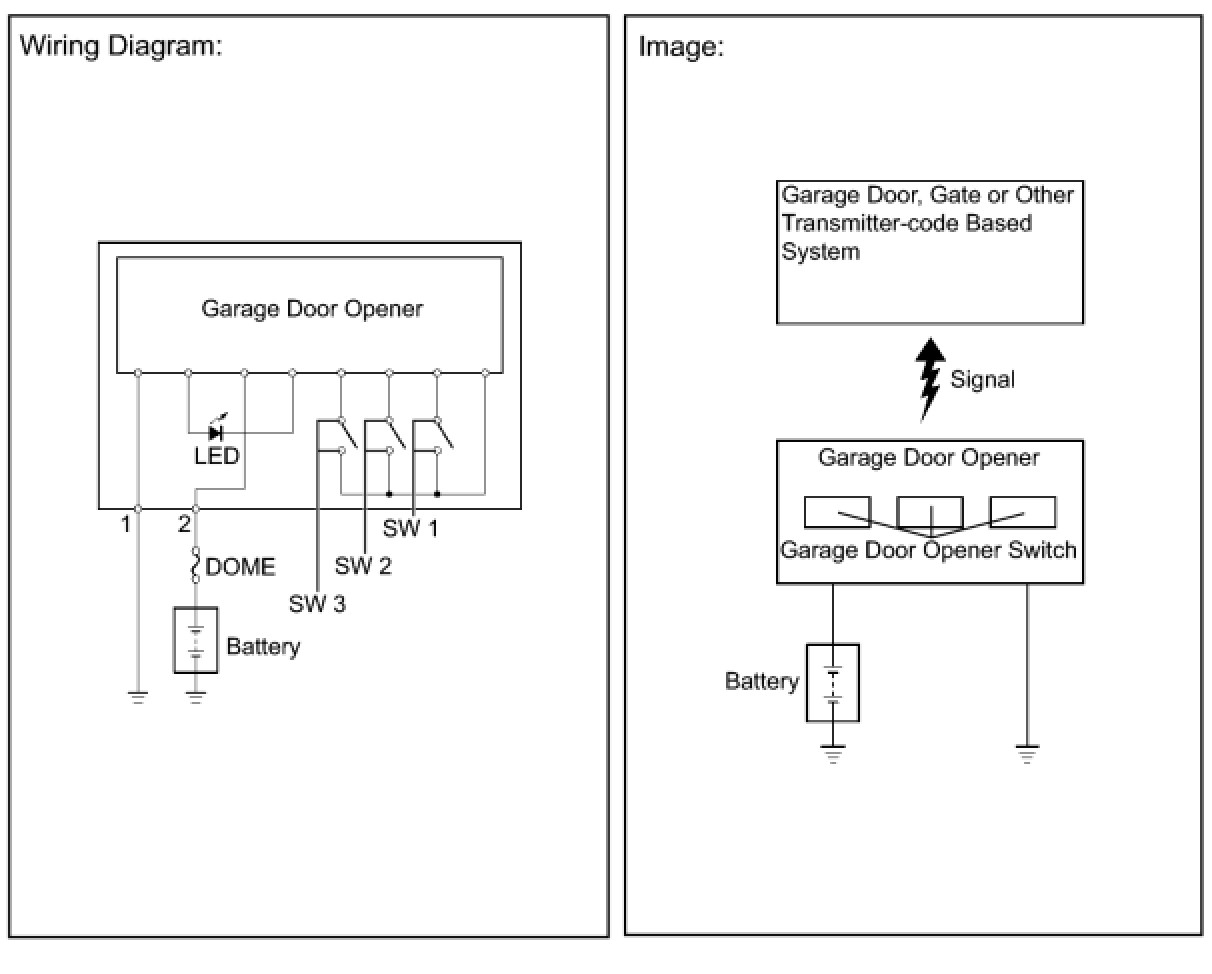

System Diagram
System Diagram
GARAGE DOOR OPENER: GARAGE DOOR OPENER SYSTEM: SYSTEM DIAGRAM
