Installation
SUPPLEMENTAL RESTRAINT SYSTEMS: REAR AIRBAG SENSOR: INSTALLATION
HINT
* Use the same procedure for the RH side and LH side.
* The procedure listed below is for the LH side.
1. INSTALL SIDE NO. 2 AIRBAG SENSOR ASSEMBLY
(a) Check that the power switch is off.
(b) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

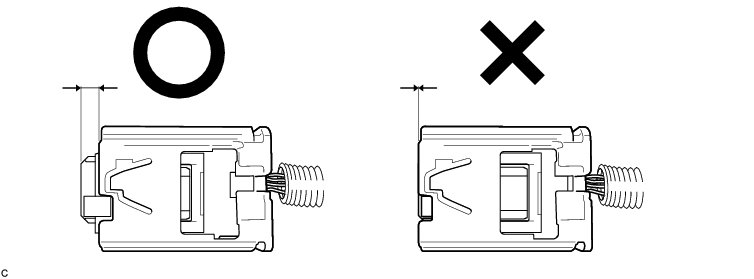

(c) Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.
(d) Insert the pin (stopper) into the body hole and install the side No. 2 airbag sensor assembly to the vehicle body with the bolt.
Text in Illustration
Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)
NOTICE:
* If the side No. 2 airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
* When installing the side No. 2 airbag sensor assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
* Make sure that the pin (stopper) is securely inserted into the body hole.
* Tighten the bolt while holding the side No. 2 airbag sensor assembly because the side No. 2 airbag sensor assembly pin (stopper) is easily damaged.
(e) Connect the connector to the side No. 2 airbag sensor assembly.
NOTICE:
When connecting any airbag connector, take care not to damage the airbag wire harness.
(1) Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).
HINT
When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.
(f) Check that there is no looseness in the installation parts of the side No. 2 airbag sensor assembly.
2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY Installation
3. INSTALL NO. 2 ROOM LIGHT ASSEMBLY Installation
4. CONNECT REAR SEAT OUTER BELT ASSEMBLY Installation
5. INSTALL FRONT DECK SIDE TRIM COVER Installation
6. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation
7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP
8. INSTALL REAR DOOR SCUFF PLATE Installation
9. INSTALL BACK DOOR SCUFF PLATE Installation
10. INSTALL REAR NO. 1 FLOOR BOARD Installation
11. INSTALL FRONT DECK FLOOR BOX Installation
12. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) Installation
13. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
14. INSTALL DECK FLOOR BOX RH Installation
15. INSTALL REAR DECK FLOOR BOX Installation
16. INSTALL NO. 1 DECK BOARD Installation
17. INSTALL NO. 2 DECK BOARD Installation
18. INSTALL DECK BOARD ASSEMBLY Installation
19. PERFORM DIAGNOSTIC SYSTEM CHECK
Reading and Clearing Diagnostic Trouble Codes
20. INSPECT SRS WARNING LIGHT
Diagnosis System
