LIN Communication System
LIN Communication System
NETWORKING: LIN COMMUNICATION SYSTEM: PARTS LOCATION
Engine Compartment:

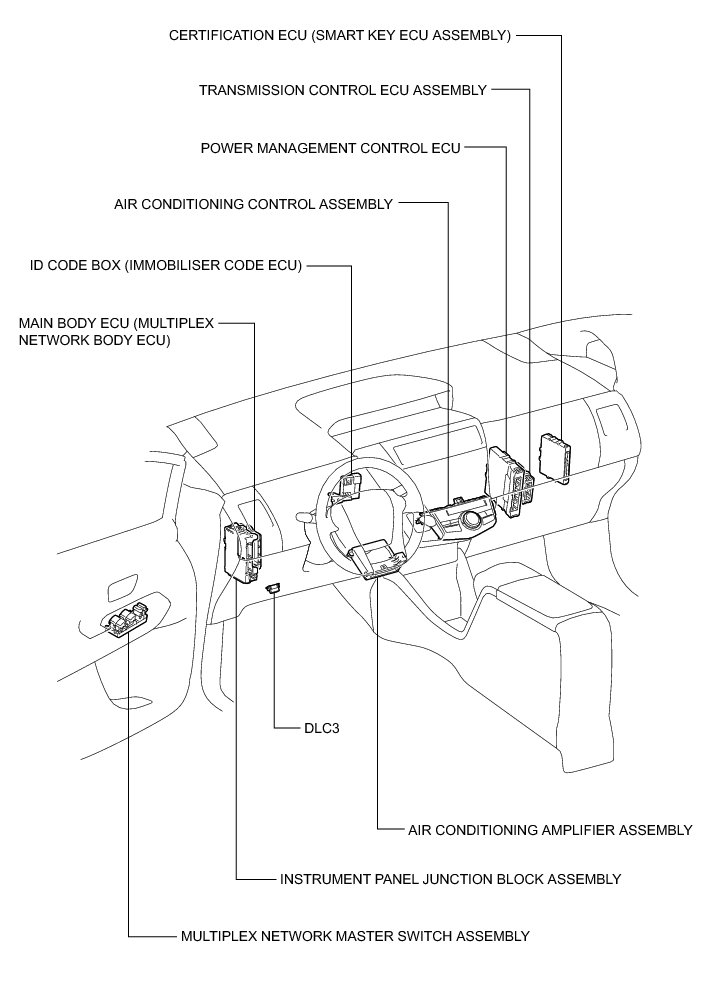

Instrument Panel:
