Prius V L4-1.8L (2ZR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Description and Operation
>>
Hybrid Control System
>>
System Diagram
System Diagram

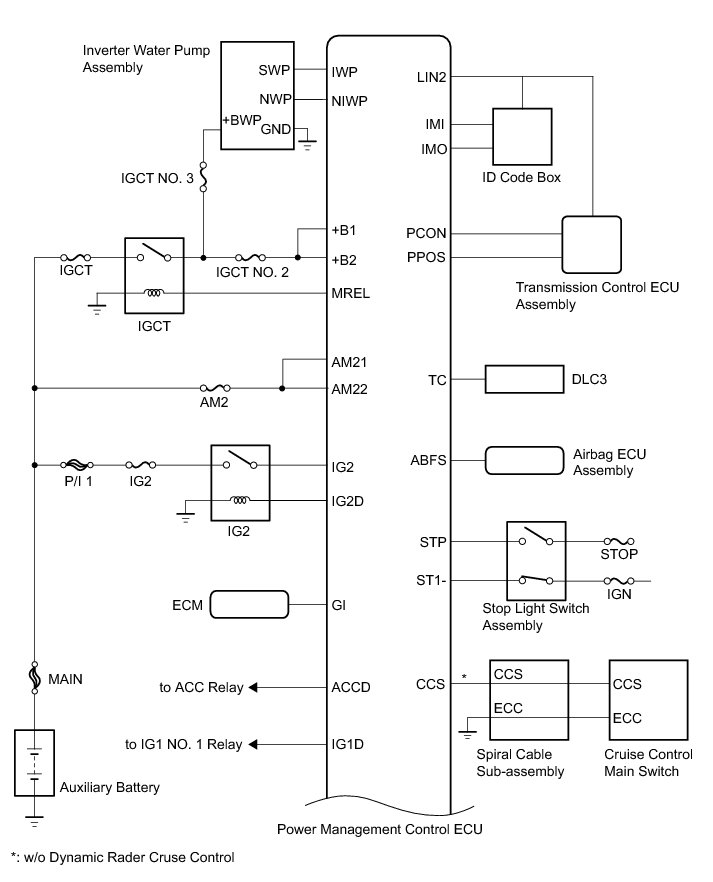

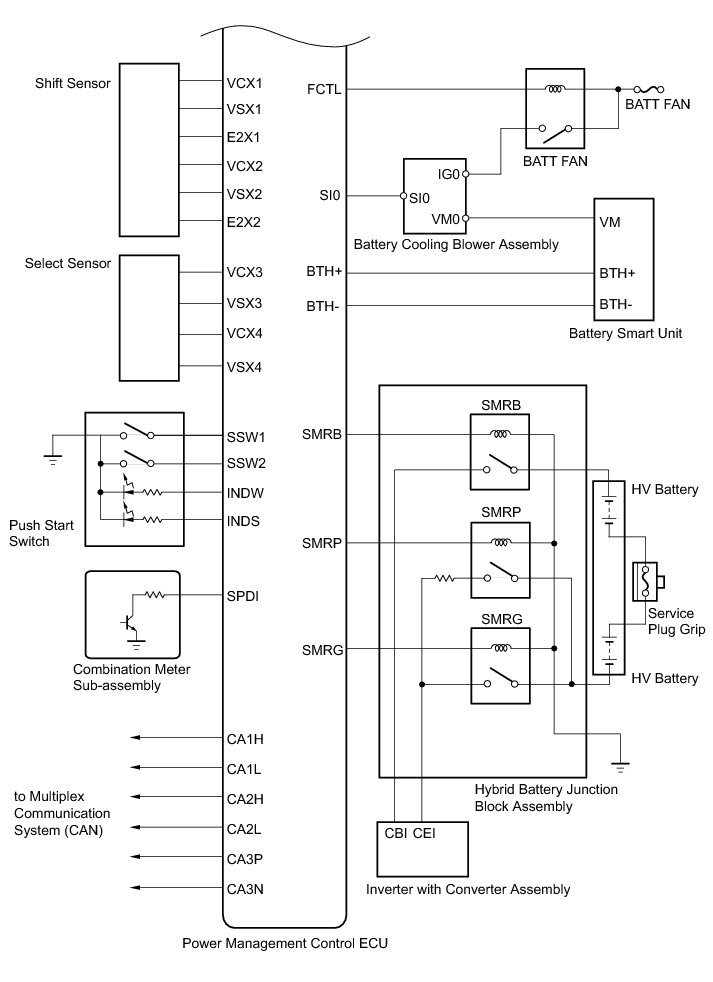

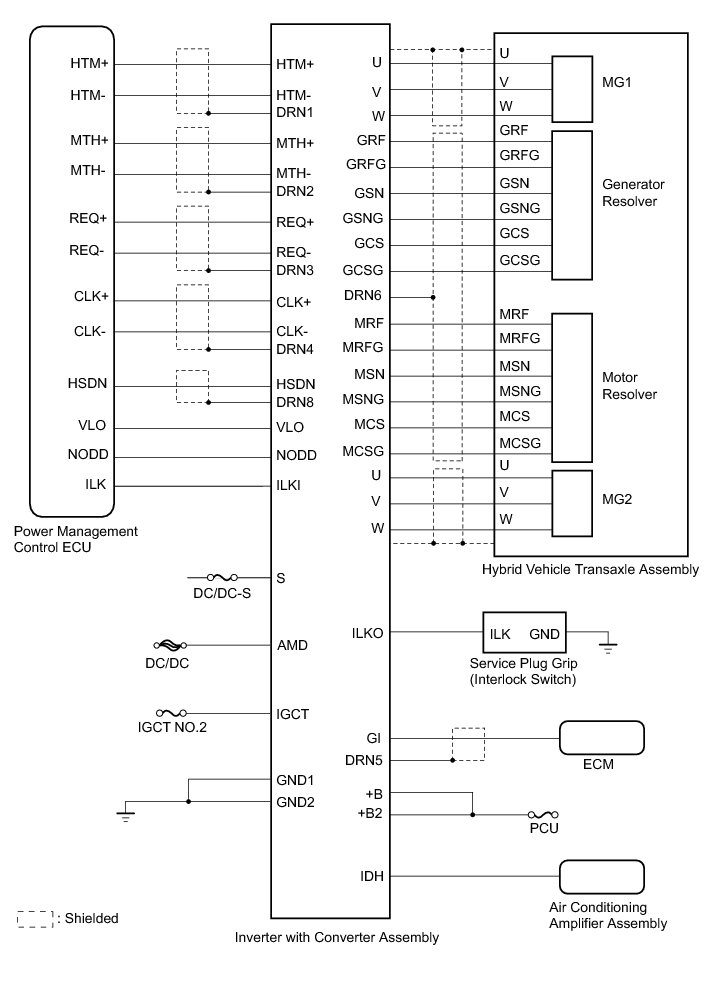

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: SYSTEM DIAGRAM
