Water Pump: Specifications
INVERTER WATER PUMP ASSEMBLYInstall the inverter water pump assembly and water pump bracket with the 3 bolts.
Torque 6.1 Nm (62 kgf-cm, 54 in-lbf)
ENGINE WATER PUMP ASSEMBLY
Install the engine water pump assembly with the 5 bolts.
Bolt A - Torque 26 Nm (260 kgf-cm, 19 ft-lbf)
Bolt B - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

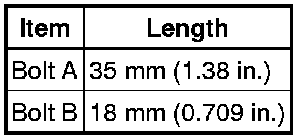

Bolt Length
