Home >> Toyota >> 2012 >> Prius V L4-1.8L (2ZR-FXE) Hybrid >> Repair and Diagnosis >> Diagrams >> Grounds

Grounds

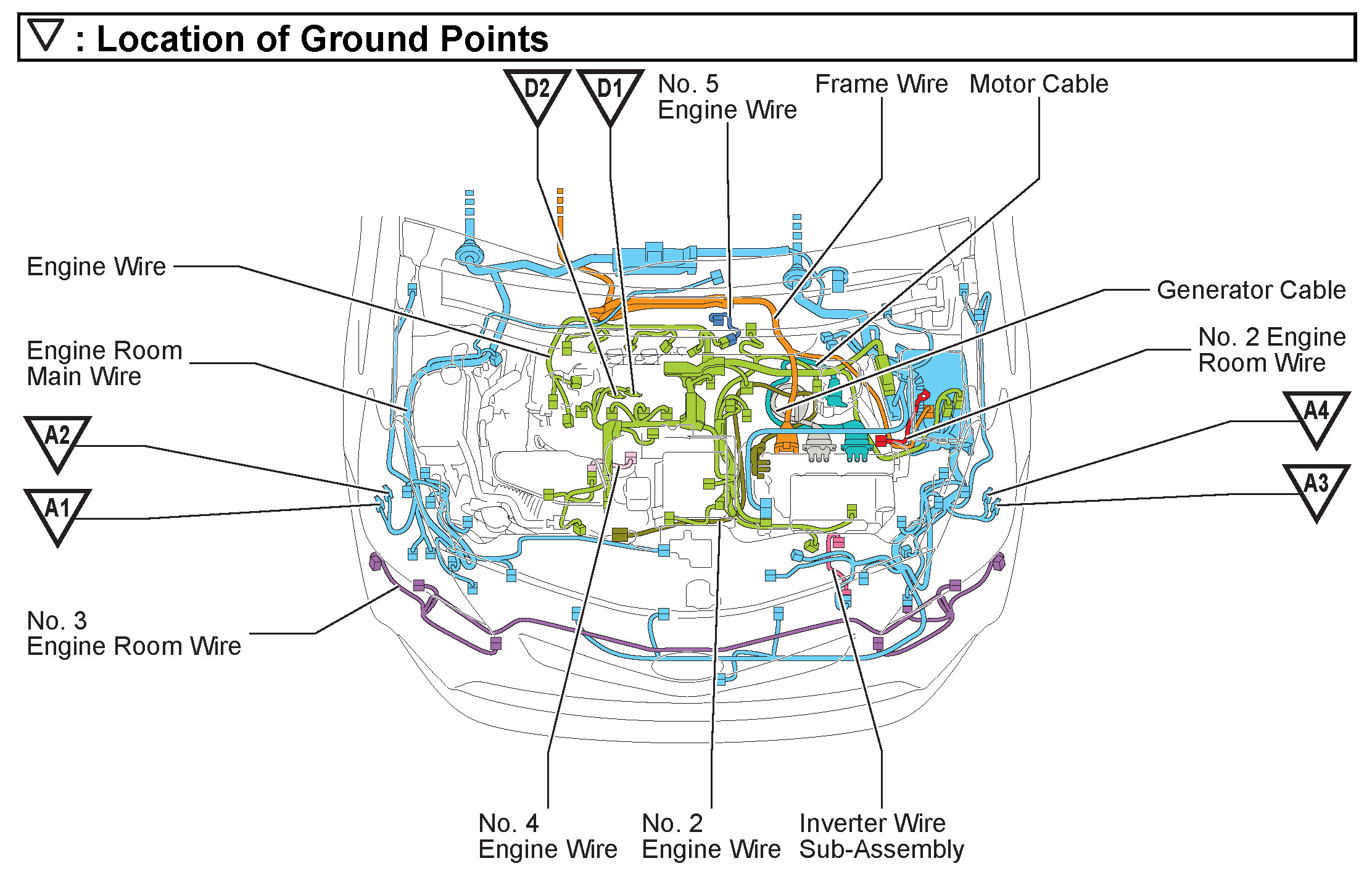

64 - A1-D2:

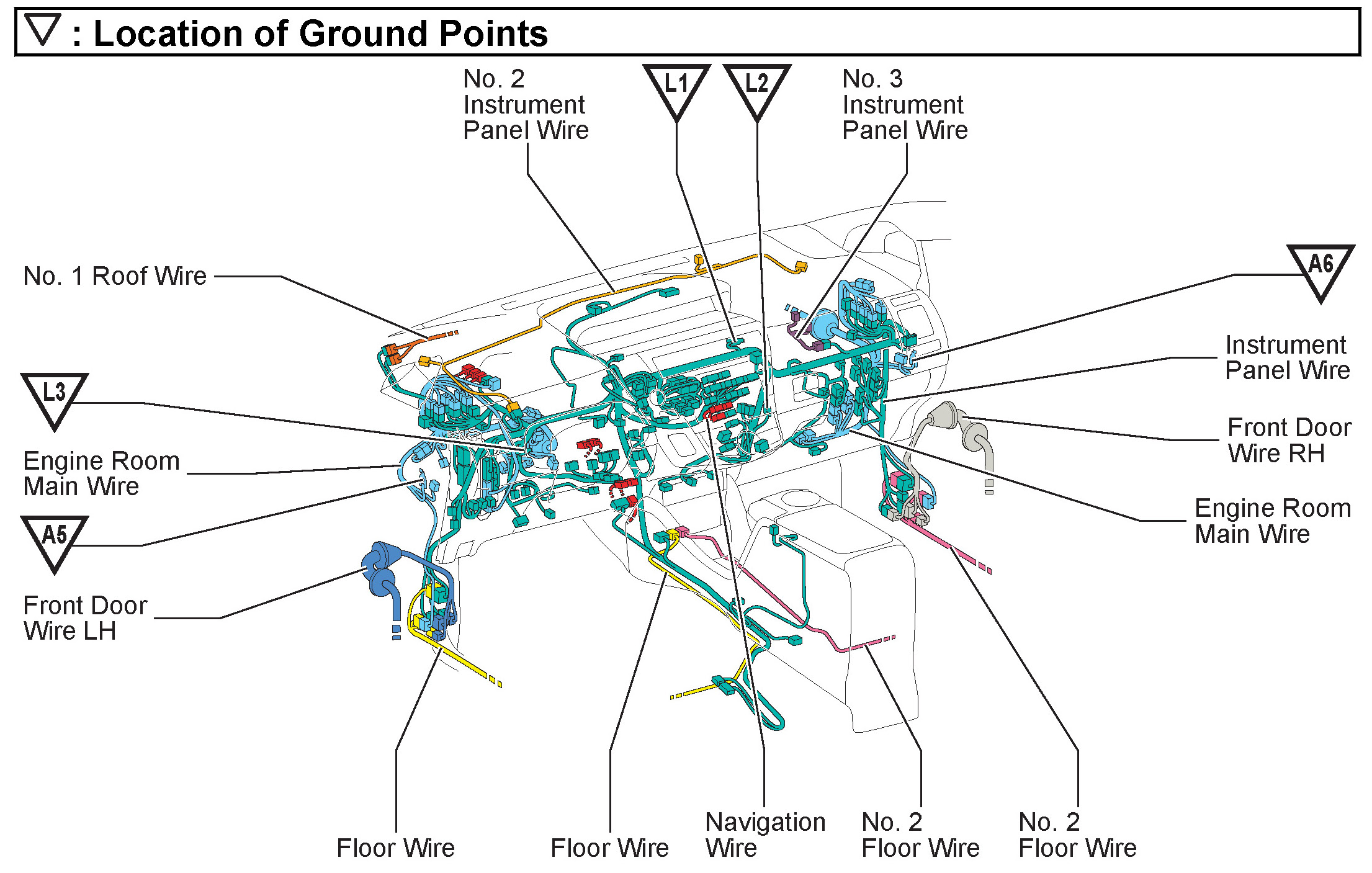

65 - A5-L3:

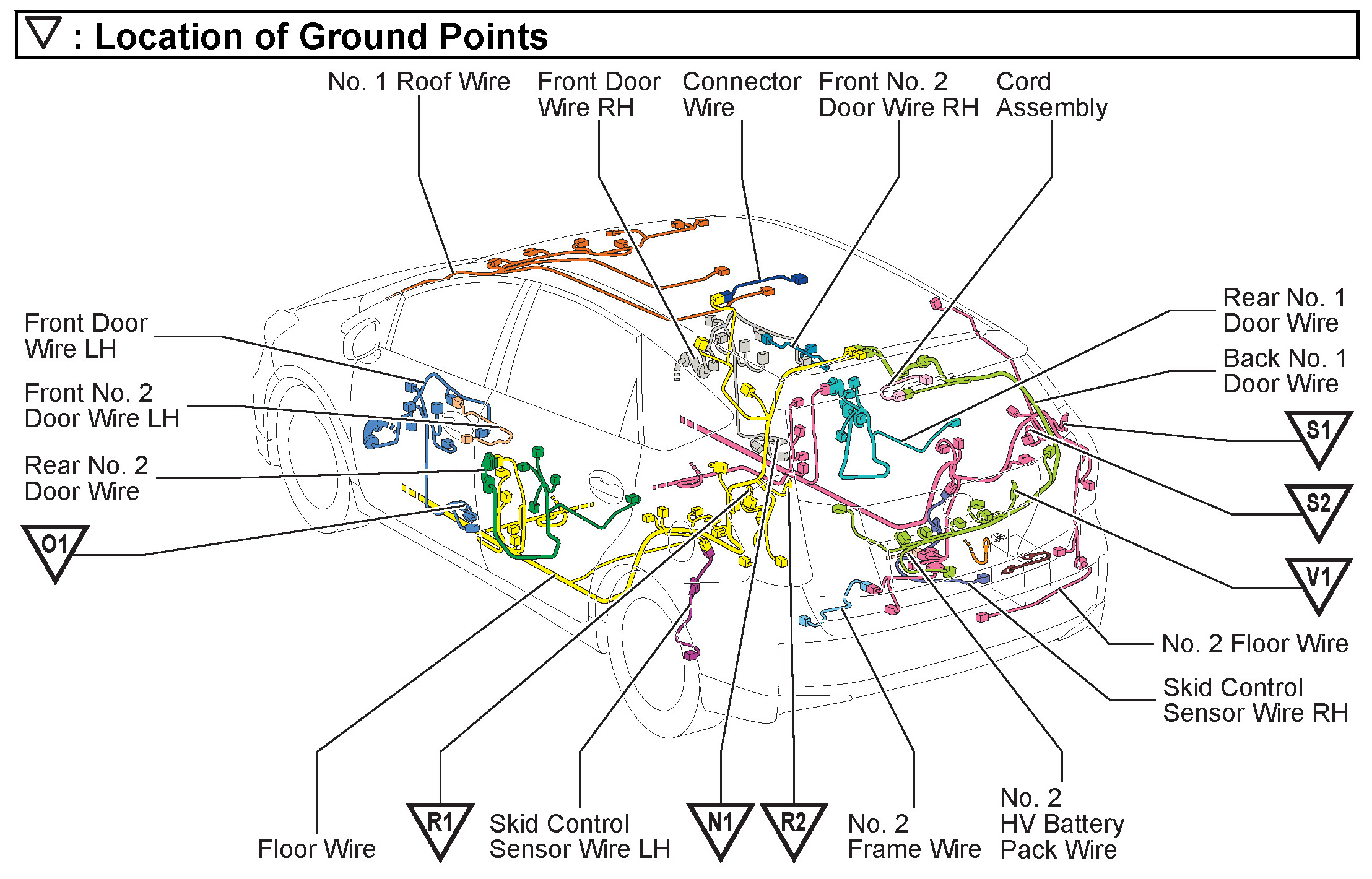

66 - N1-V1:
