Installation

PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION

1. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY

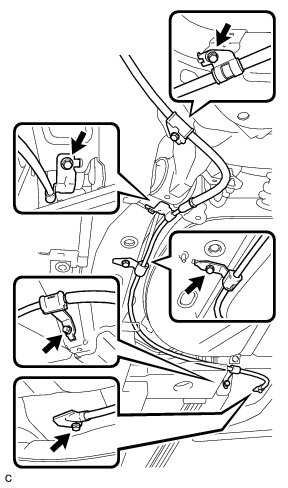

(a) Install the No. 3 parking brake cable assembly with the 5 bolts.

Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)

(b) Install the No. 3 parking brake cable assembly to the parking brake plate sub-assembly with the bolt.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

2. INSTALL PARKING BRAKE SHOE LEVER

Reassembly

3. INSTALL FRONT NO. 2 FLOOR HEAT INSULATOR

(a) Install the front No. 2 floor heat insulator with the 3 nuts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

4. INSTALL FRONT EXHAUST PIPE ASSEMBLY

Installation

5. INSTALL NO. 1 PARKING BRAKE PULL ROD SUB-ASSEMBLY

(a) Connect the No. 3 parking brake cable assembly to the No. 1 parking brake pull rod sub-assembly as shown in the illustration.

Text in Illustration

(b) Connect the No. 2 parking brake cable assembly to the No. 1 parking brake pull rod sub-assembly.

HINT
Perform the same procedure as for the No. 3 parking brake cable assembly.

6. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY

(a) Pass the No. 1 parking brake cable assembly through the parking brake pedal assembly.

(b) Install the clip to the No. 1 parking brake cable assembly.

(d) Temporarily install the adjusting nut.

7. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY

Installation
