Home >> Toyota >> 2012 >> Prius V L4-1.8L (2ZR-FXE) Hybrid >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations

Antilock Brakes / Traction Control Systems: Locations

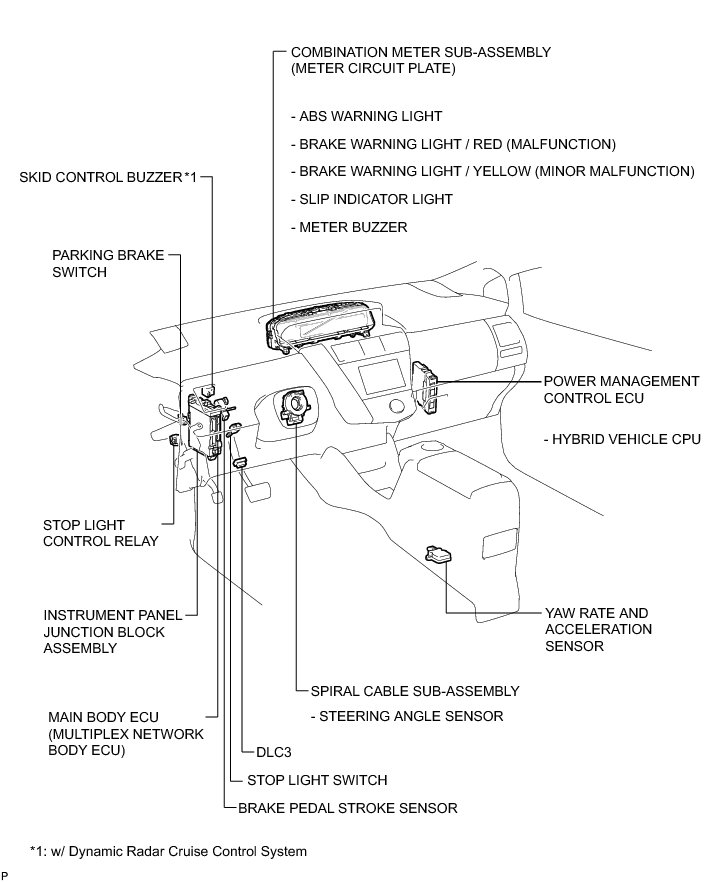

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: PARTS LOCATION
