Installation

EXTERIOR PANELS / TRIM: WINDSHIELD OUTSIDE MOULDING: INSTALLATION

NOTICE:
Perform the following procedure only if the windshield outside sub moulding will be replaced with a new one without removing the windshield glass.

1. CLEAN WINDSHIELD GLASS

(a) Using a scraper, remove the adhesive tape and adhesive sticking to the windshield glass.

NOTICE:
Be careful not to damage the windshield glass.

(b) Clean the windshield outside sub moulding installation surfaces of the windshield glass with a non-residue solvent.

NOTICE:
Do not touch the windshield glass surface after cleaning it.

2. INSTALL WINDSHIELD OUTSIDE SUB MOULDING

(a) Using a brush or a sponge, coat the application area of a new windshield outside sub moulding with Primer G.

NOTICE:
* Do not apply too much primer.
* Allow the primer to dry for 3 minutes or more.
* Throw away any leftover primer.

HINT
If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

(b) Apply adhesive to the windshield outside sub moulding.

Adhesive:

Toyota Genuine Windshield Glass Adhesive or equivalent

(1) Cut off the tip of the cartridge nozzle as shown in the illustration.





Text in Illustration





Standard Dimension:





HINT

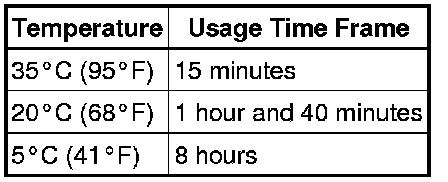

After cutting off the tip, use all adhesive within the time described in the table below.

Usage Time Frame:





(2) Load the sealer gun with the cartridge.

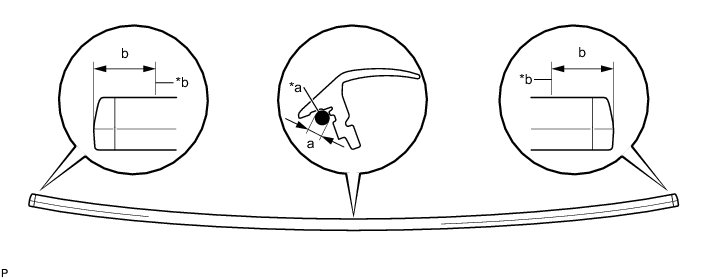

(3) Apply adhesive to the windshield outside sub moulding as shown in the illustration.





Text in Illustration

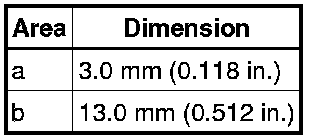

Standard Dimension:





HINT
The adhesive will be easier to apply if the windshield outside sub moulding is secured to a workbench.

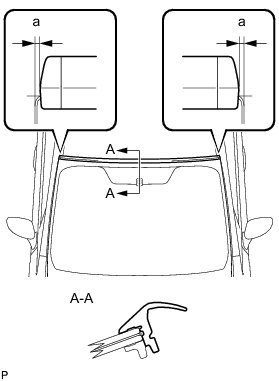

(c) Install the windshield outside sub moulding onto the windshield glass as shown in the illustration.





Standard Dimension:





NOTICE:
* Center the windshield outside sub moulding so that the distance from each end to the edges of windshield glass is equal.
* Make sure that the whole windshield outside sub molding is firmly secured.

(d) Press on the windshield outside sub moulding installation surfaces in the order shown in the illustration.





Text in Illustration





HINT
Remove any excessive adhesive that seeps out before it hardens.

(e) Hold the windshield outside sub moulding using protective tape until the adhesive becomes hard.

NOTICE:

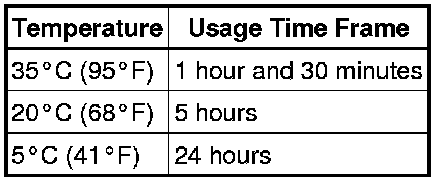

Do not drive the vehicle for the time described in the table below.

Minimum Time:





(f) After confirming that the adhesive has hardened, remove the tape.
