Steering Mounted Controls Assembly: Testing and Inspection

STEERING COLUMN: STEERING PAD SWITCH: INSPECTION

1. INSPECT STEERING PAD SWITCH ASSEMBLY

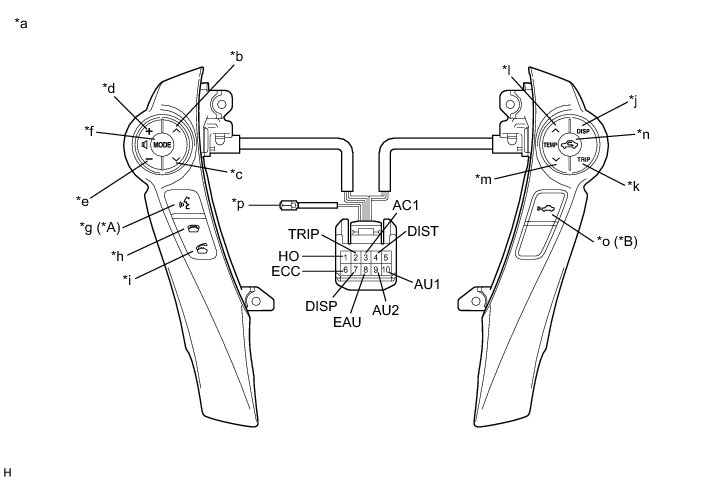

(a) Measure the resistance according to the value(s) in the table below.

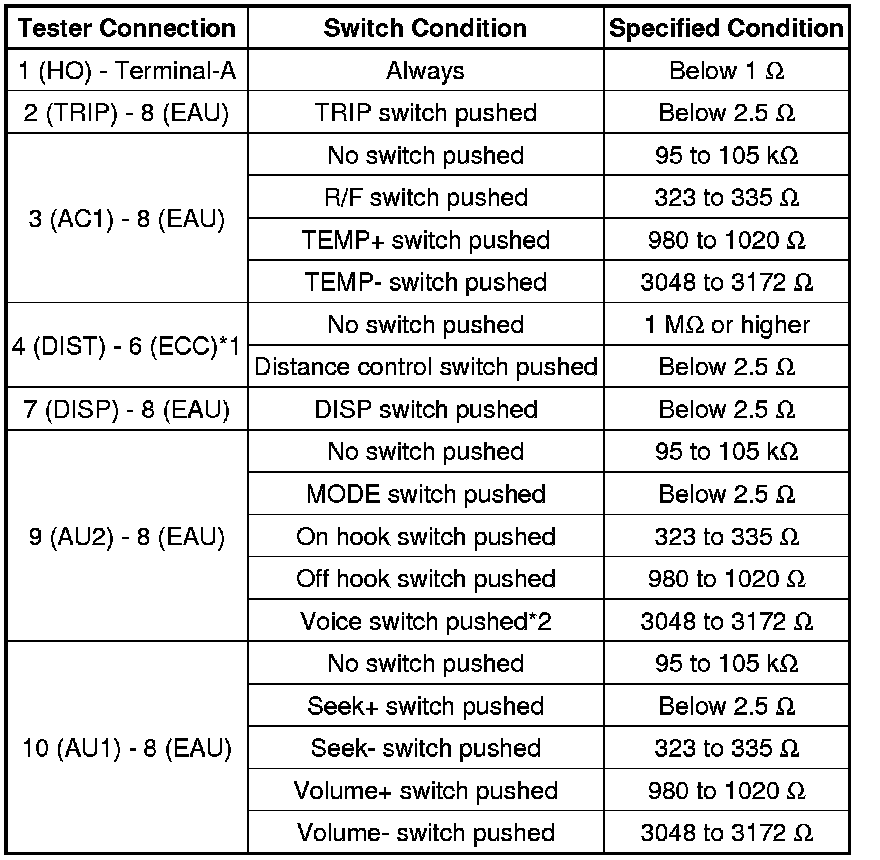

Standard Resistance:





* *1: w/ Distance Control Switch of Steering Pad Switch Assembly

* *2: w/ Voice Switch of Steering Pad Switch Assembly

HINT
If the result is not as specified, replace the steering pad switch assembly.

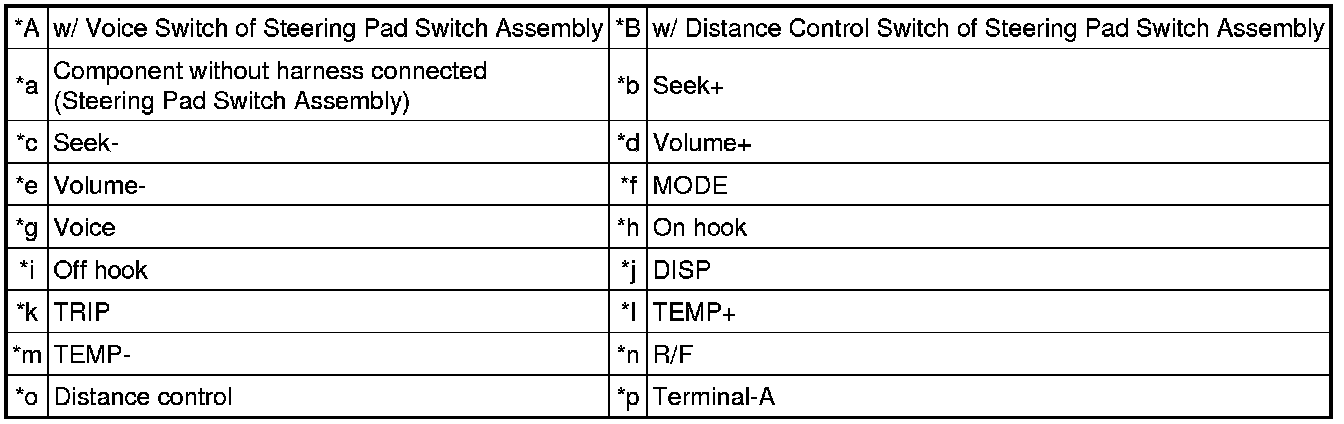

Text in Illustration





(b) Check the illumination.

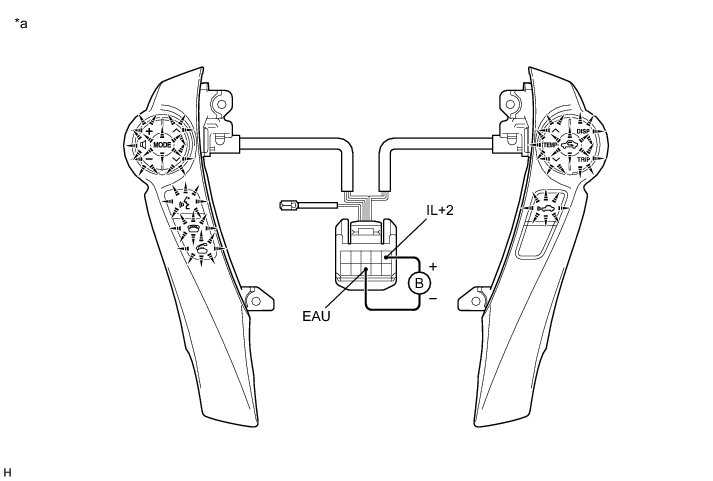

(1) Connect an auxiliary battery positive (+) lead to terminal IL+2 and a negative (-) lead to terminal EAU of the steering pad switch assembly connector.

(2) Check that the switch illumination comes on.

OK:

Steering pad switch illumination comes on.

HINT
If the result is not as specified, replace the steering pad switch assembly.

Text in Illustration
