System Diagram
System Diagram

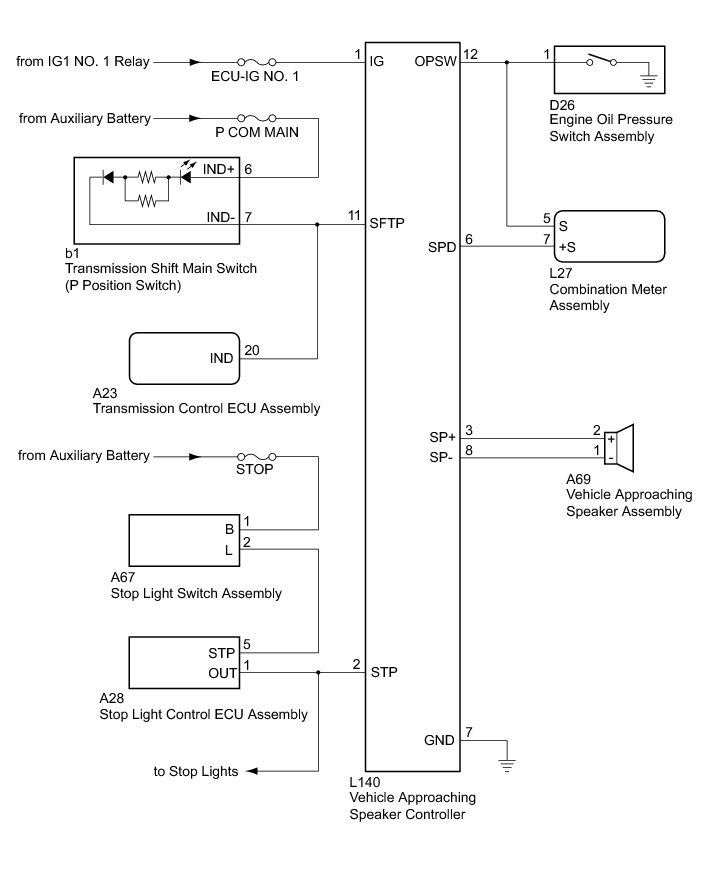

VEHICLE PROXIMITY NOTIFICATION SYSTEM: VEHICLE PROXIMITY NOTIFICATION SYSTEM: SYSTEM DIAGRAM
