Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2012
>>
Prius L4-1.8L (2ZR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Battery System, Hybrid Drive
>>
Battery Cooling Fan
>>
Service and Repair
>>
Components
Components

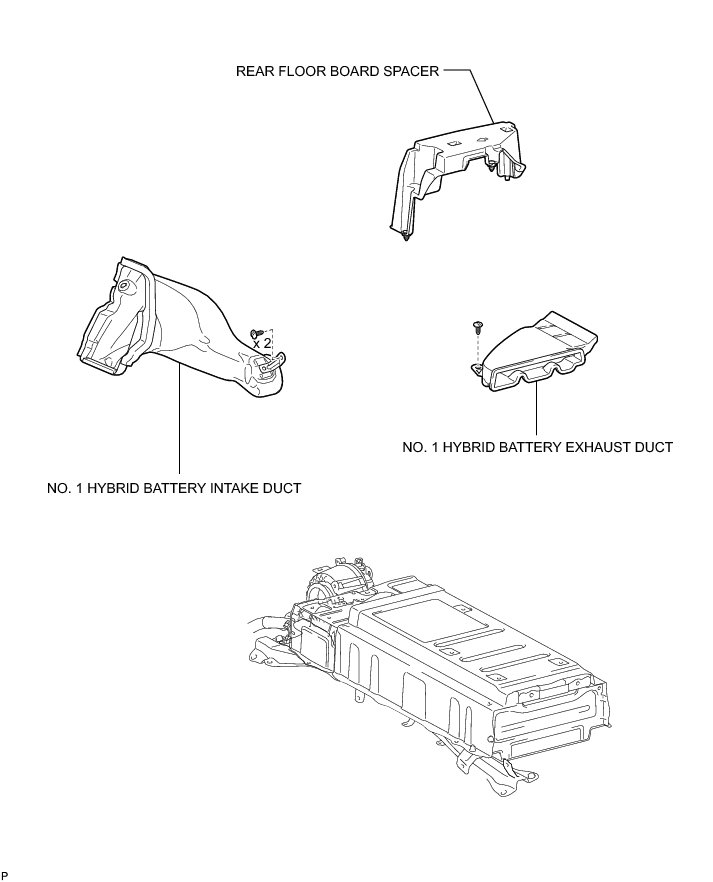

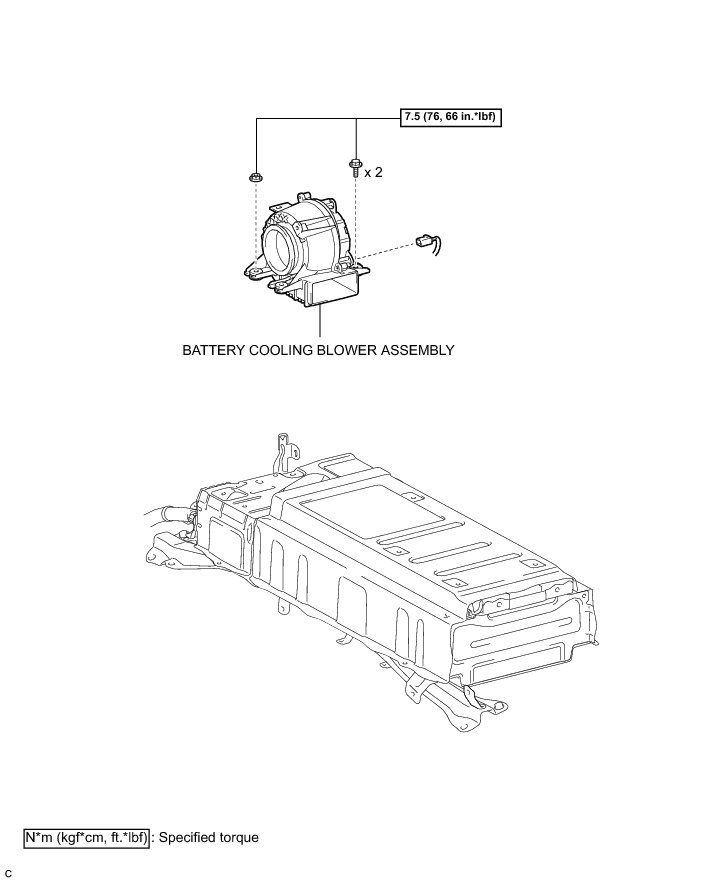

HYBRID / BATTERY CONTROL: BATTERY BLOWER: COMPONENTS
