Home
>>
Toyota
>>
2012
>>
Prius L4-1.8L (2ZR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Water Pump
>>
Service and Repair
>>
Water Pump With Motor
>>
Components
Components

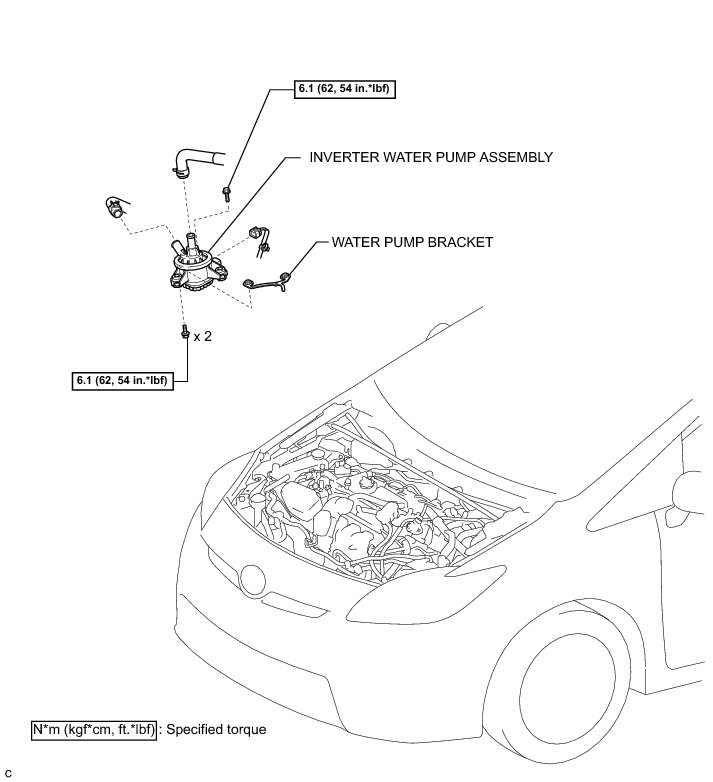

HYBRID / BATTERY CONTROL: WATER PUMP WITH MOTOR: COMPONENTS
