Installation

PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION

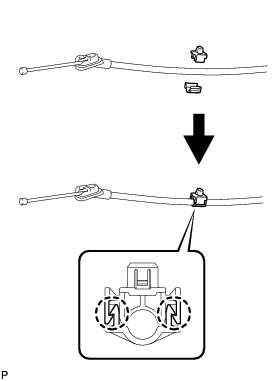

1. INSTALL NO. 2 PARKING BRAKE CABLE CLAMP

(a) Engage the 2 claws to install a new No. 2 parking brake cable clamp to the No. 3 parking brake cable assembly.

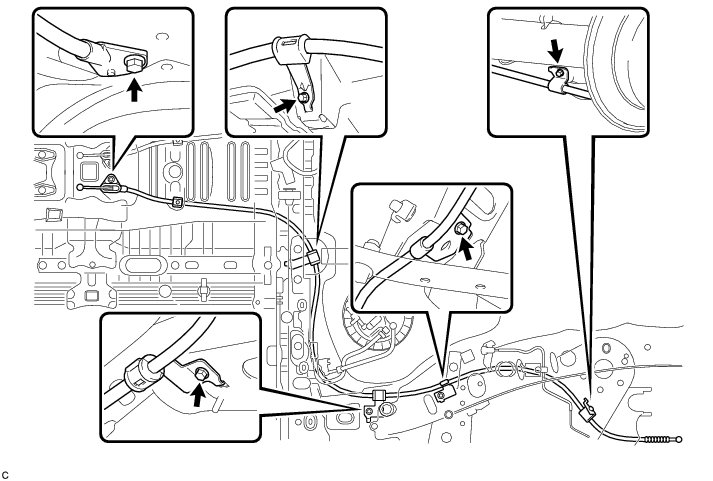

2. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Install the No. 3 parking brake cable assembly with the 5 bolts.

Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)

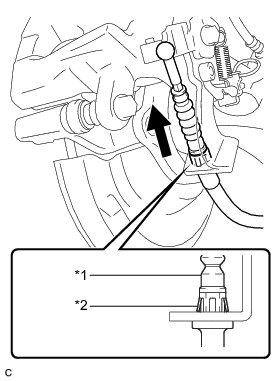

(b) Install the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly.

Text in Illustration

HINT
Be sure to engage the No. 3 parking brake cable assembly clip onto the rear disc brake cylinder assembly as shown in the illustration.

(c) Connect the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly.

(d) Engage the clamp to install the No. 2 parking brake cable clamp.

3. INSTALL REAR FLOOR SIDE MEMBER COVER LH (w/ Floor Under Cover) Installation

4. INSTALL FRONT NO. 2 FLOOR HEAT INSULATOR

(a) Install the front No. 2 floor heat insulator with the 3 nuts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

5. INSTALL FRONT EXHAUST PIPE ASSEMBLY

HINT
Refer to the instructions for Installation of the front exhaust pipe assembly Installation.

6. INSTALL NO. 1 PARKING BRAKE PULL ROD SUB-ASSEMBLY

(a) Connect the No. 3 parking brake cable assembly to the No. 1 parking brake pull rod sub-assembly as shown in the illustration.

(b) Connect the No. 2 parking brake cable assembly to the No. 1 parking brake pull rod sub-assembly.

HINT
Perform the same procedure as for the No. 3 parking brake cable assembly.

7. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY

(a) Pass the No. 1 parking brake cable assembly through the parking brake pedal assembly.

(b) Install the clip to the No. 1 parking brake cable assembly.

(d) Temporarily install the adjusting nut.

8. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY

HINT
Refer to the instructions for Installation of the parking brake control pedal assembly Installation.

9. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)
