Component Locations

Timing Component Alignment Marks

(a) Set the crankshaft in the position shown in the illustration.





Text in Illustration





HINT
The crankshaft will be set to 90° ATDC and the timing mark will be at the location shown in the illustration.

(b) Set the camshaft timing gear assembly and camshaft timing sprocket in the positions shown in the illustration.





Text in Illustration





HINT
There are 3 marks on the camshaft timing sprocket. Make sure to set the timing mark (rectangle) to 10° as shown in the illustration. Make sure to set the camshaft timing gear assembly to 10° as shown in the illustration. This is the location of the camshafts when the crankshaft is 20° ATDC.

(c) Set the crankshaft in the position shown in the illustration.





Text in Illustration





HINT
The crankshaft will be set to 20° ATDC and the timing mark will be at the location shown in the illustration.

(d) Install the No. 1 chain vibration damper with the 2 bolts.

Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

(e) Align the timing marks of the camshaft and crankshaft with the mark plates of the timing chain sub-assembly and install the timing chain sub-assembly.

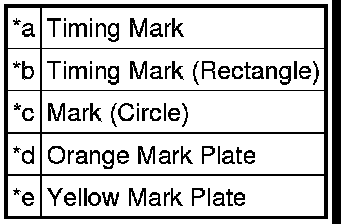

Text in Illustration





HINT
* To prevent the No. 2 camshaft from springing back, turn it using a wrench and set it at the mark on the chain.
* There are 3 marks on the camshaft timing sprocket. Make sure to align the mark plate with the timing mark (rectangle).
