Instrument Panel J/B Assembly

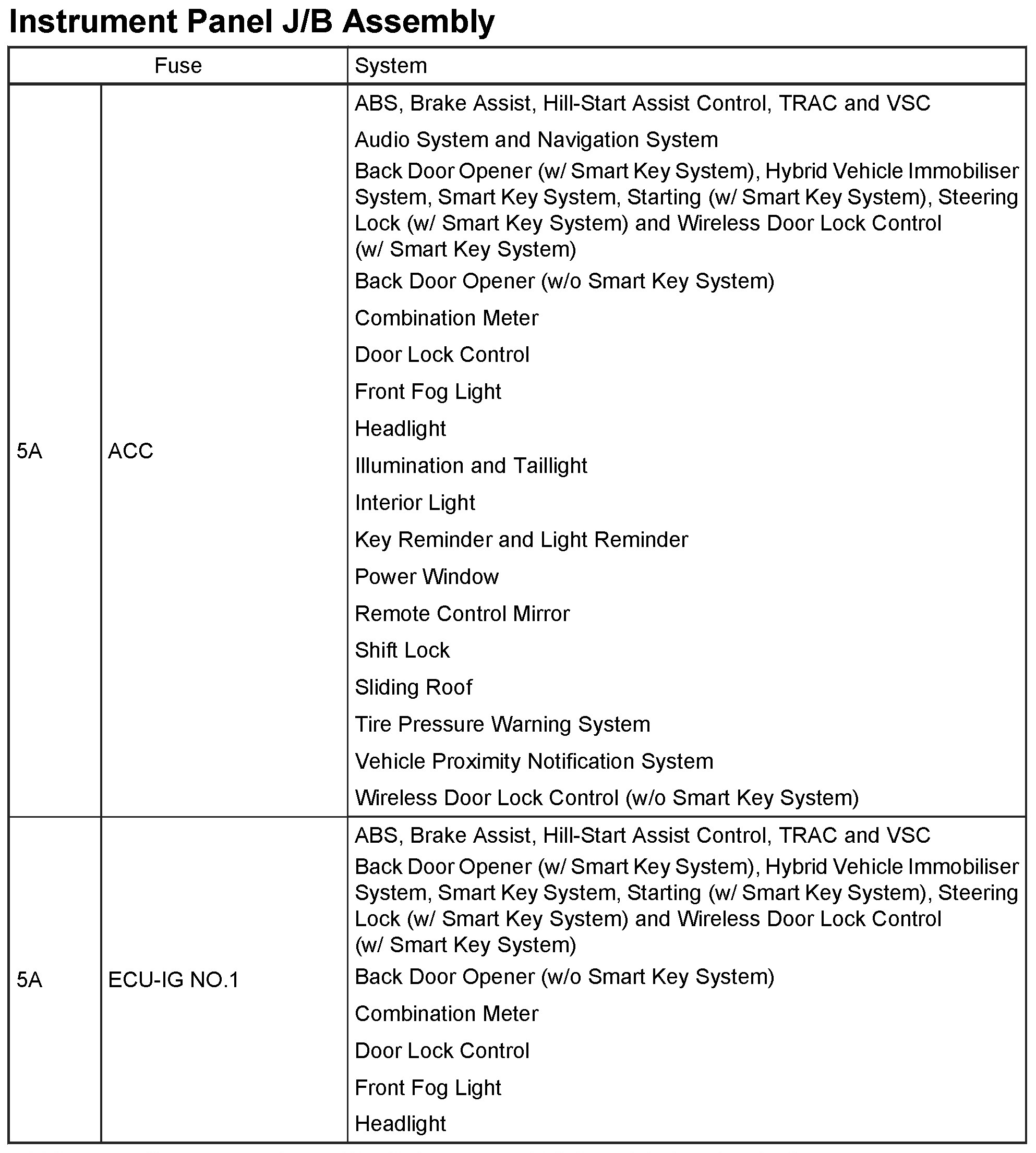

Instrument Panel J/B Assembly

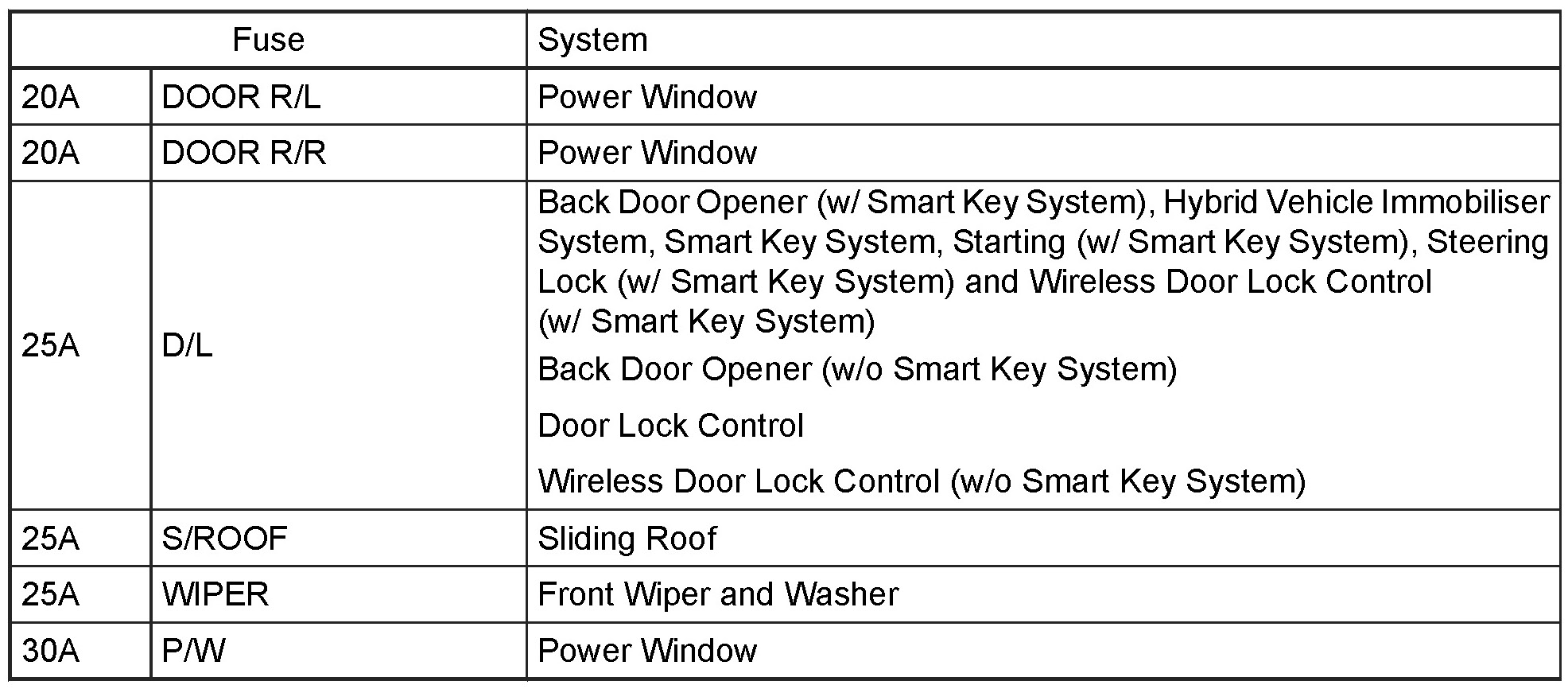

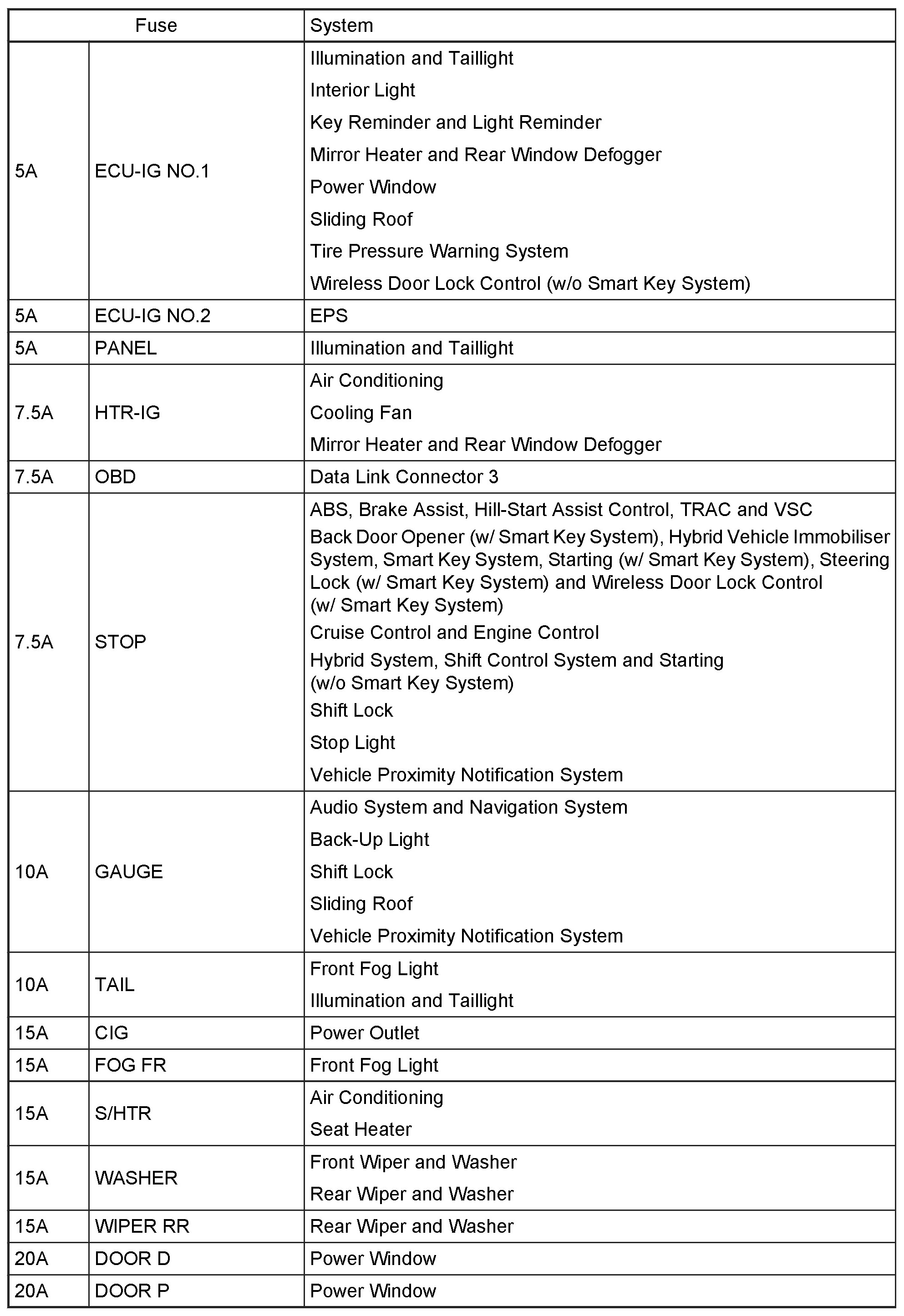

Instrument Panel J/B Assembly:
Instrument Panel J/B Assembly:
Instrument Panel J/B Assembly:
