Prius C L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Fuse Block
>>
Locations
>>
Component Locations
Component Locations

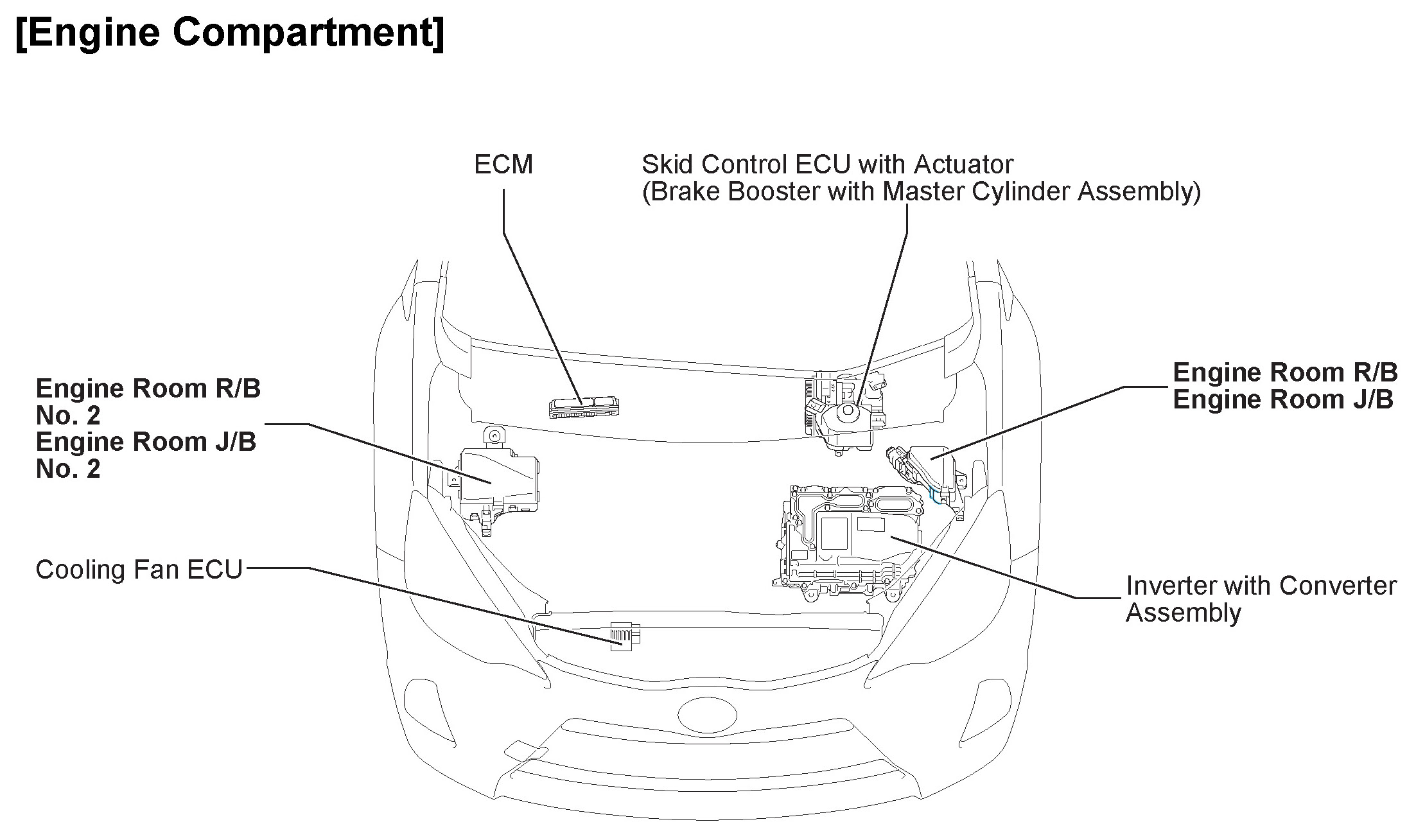

Engine Compartment:

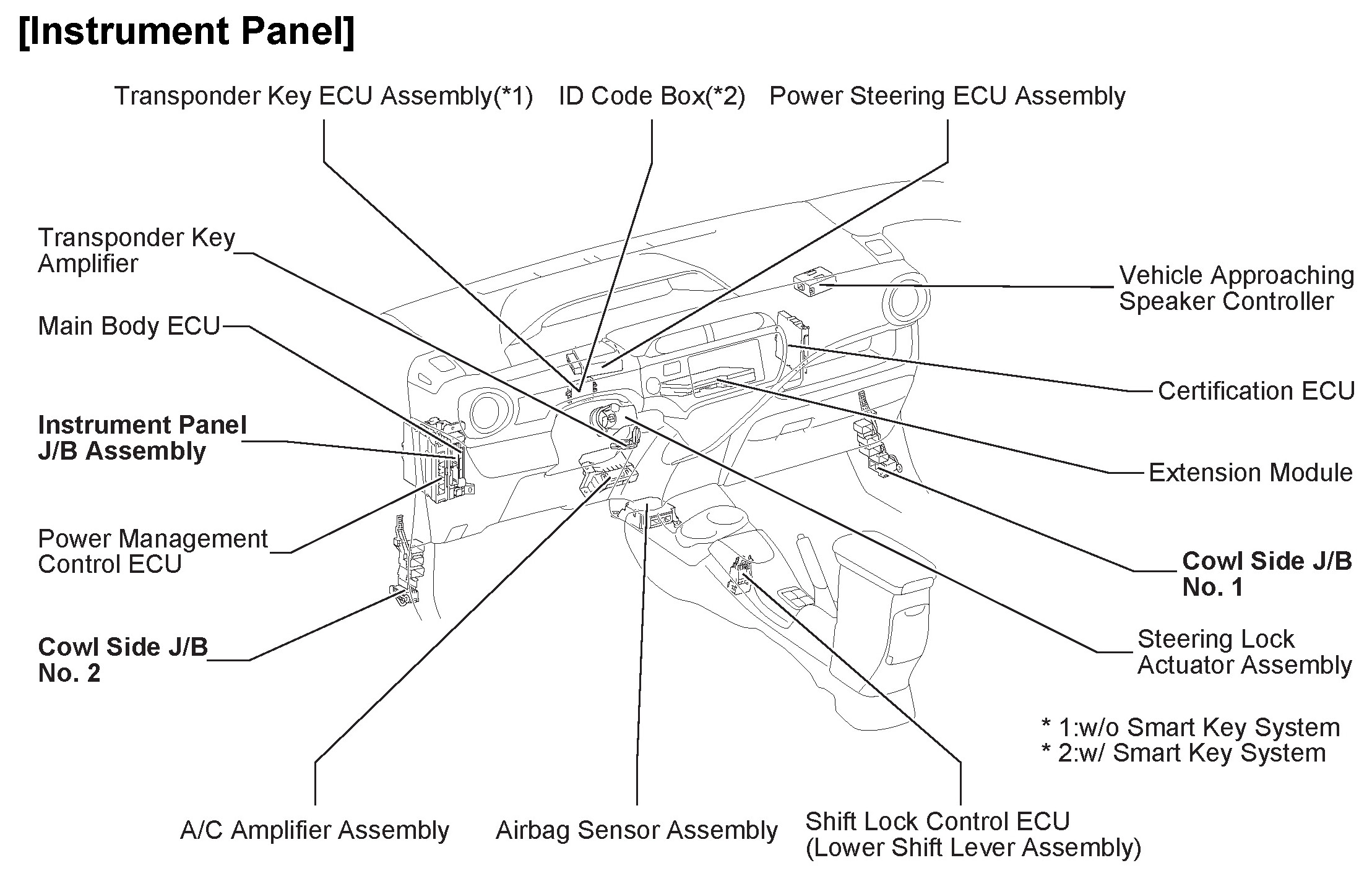

Instrument Panel:
