Home >> Toyota >> 2012 >> Matrix FWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Service and Repair >> Removal and Replacement >> Components

Components

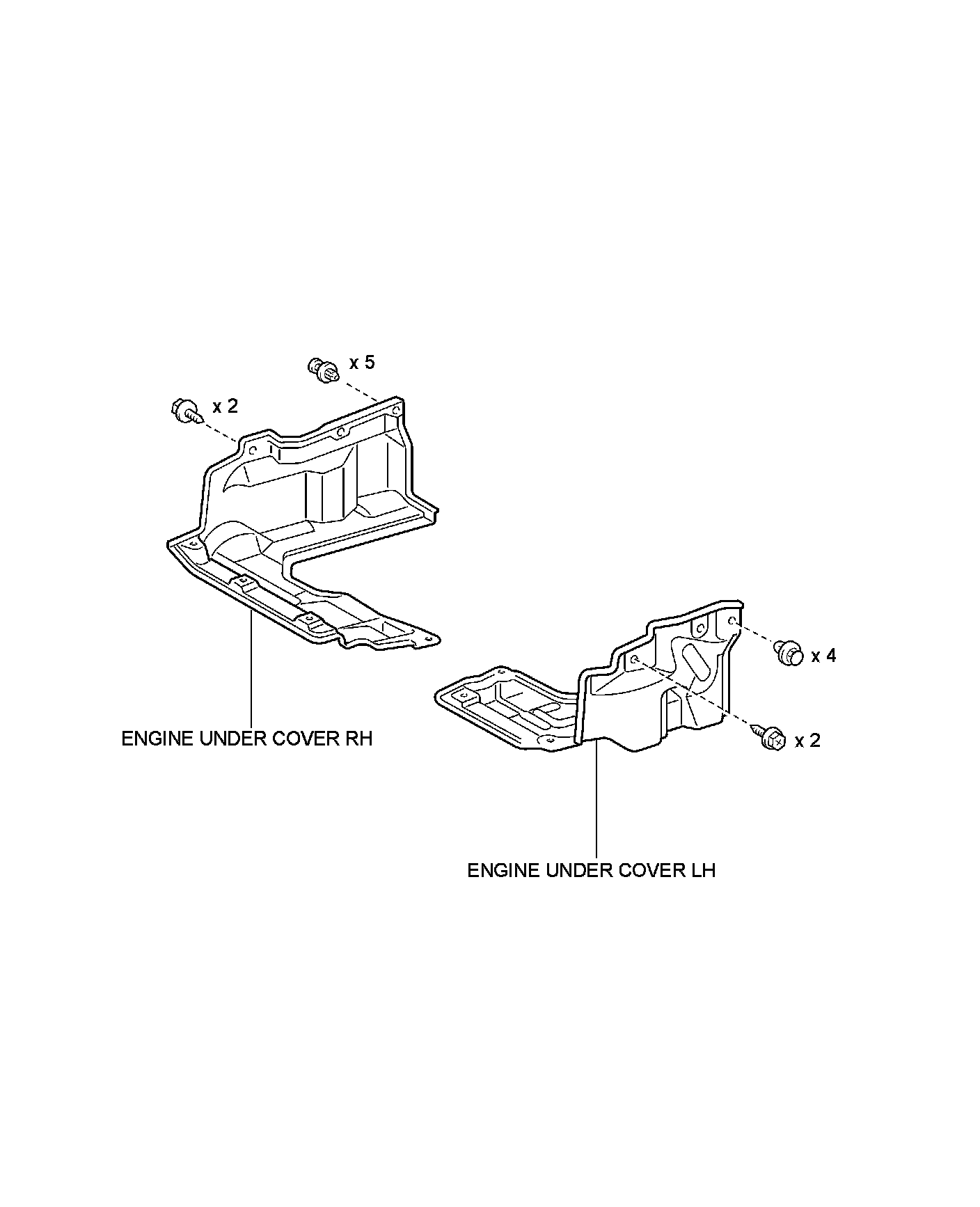

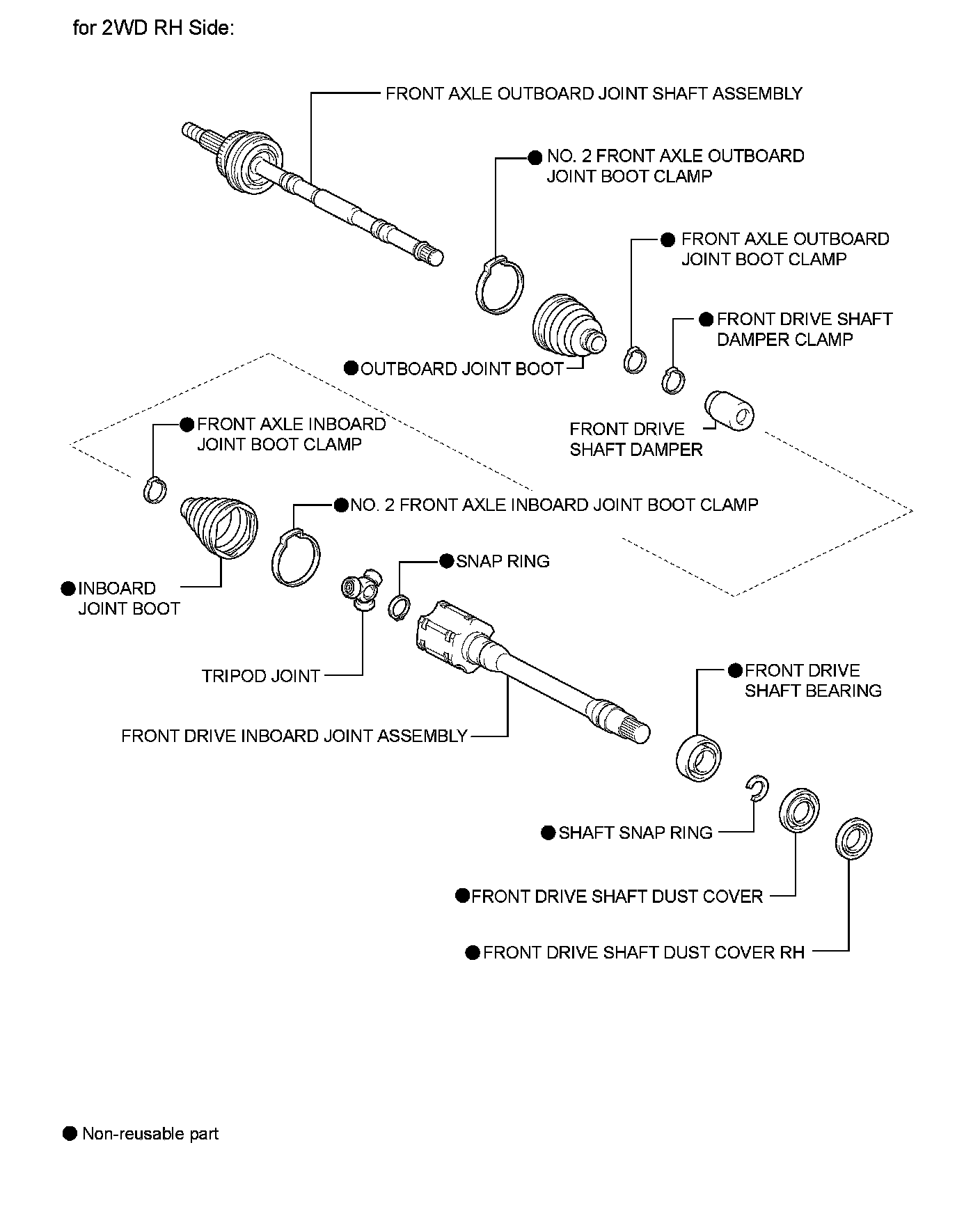

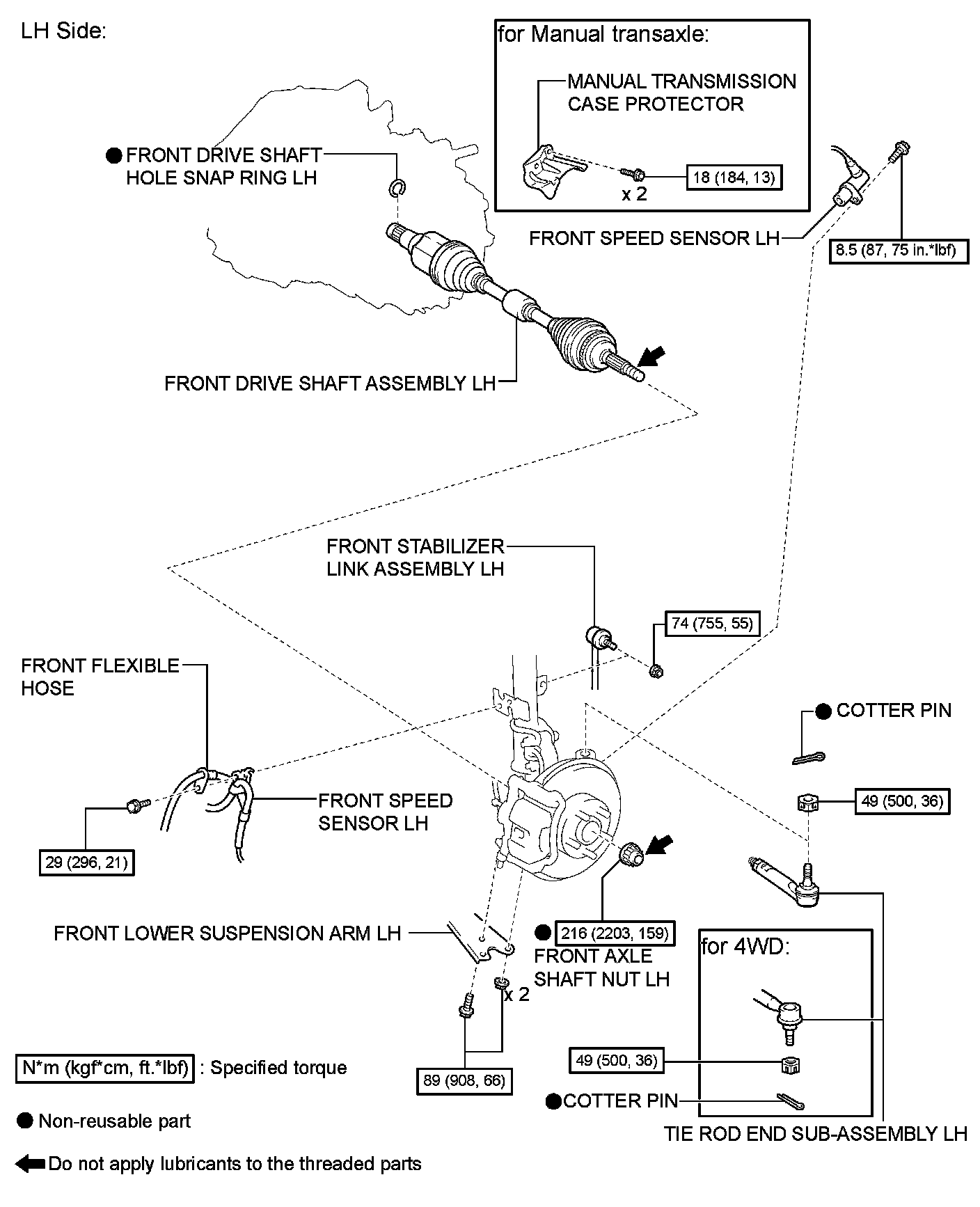

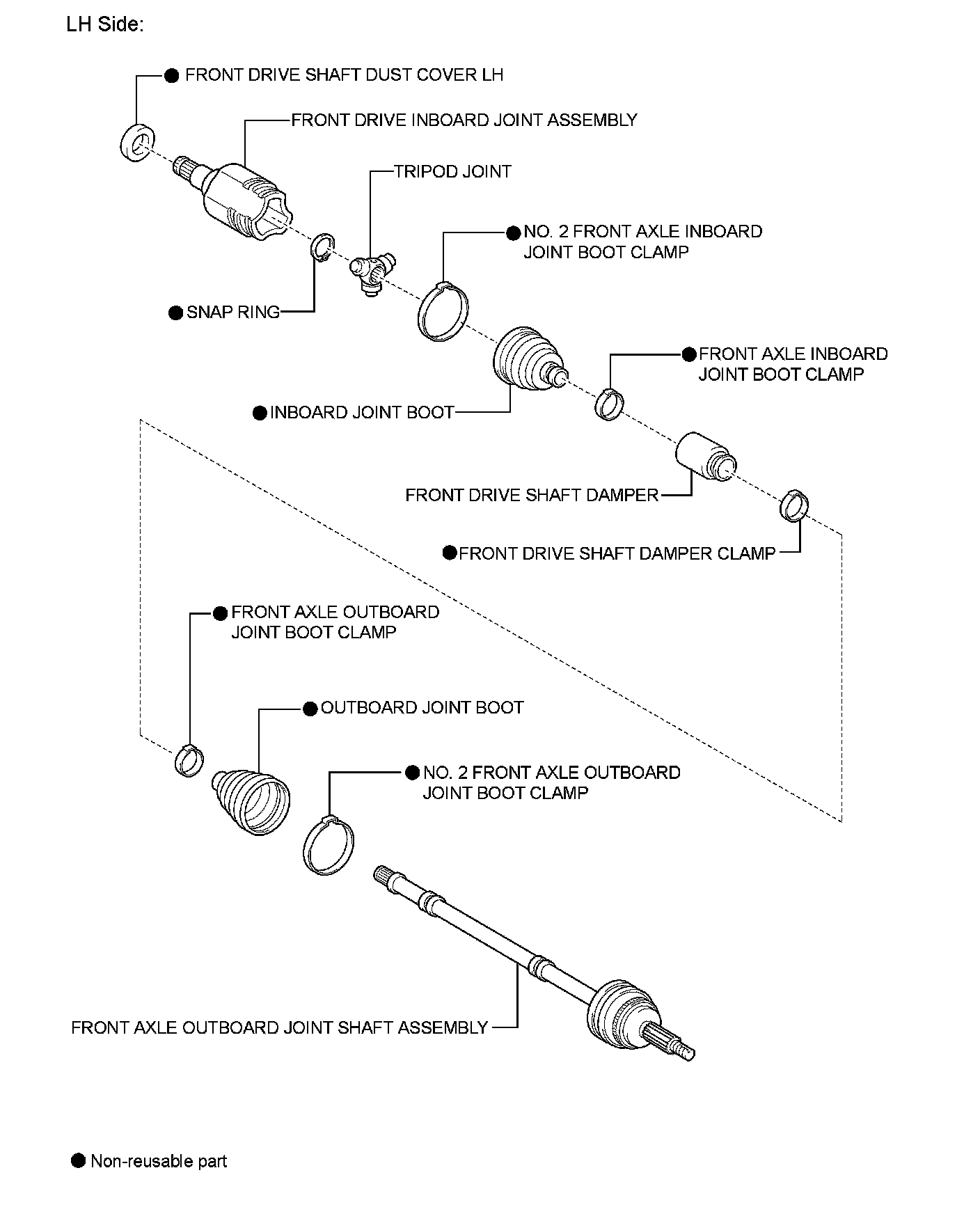

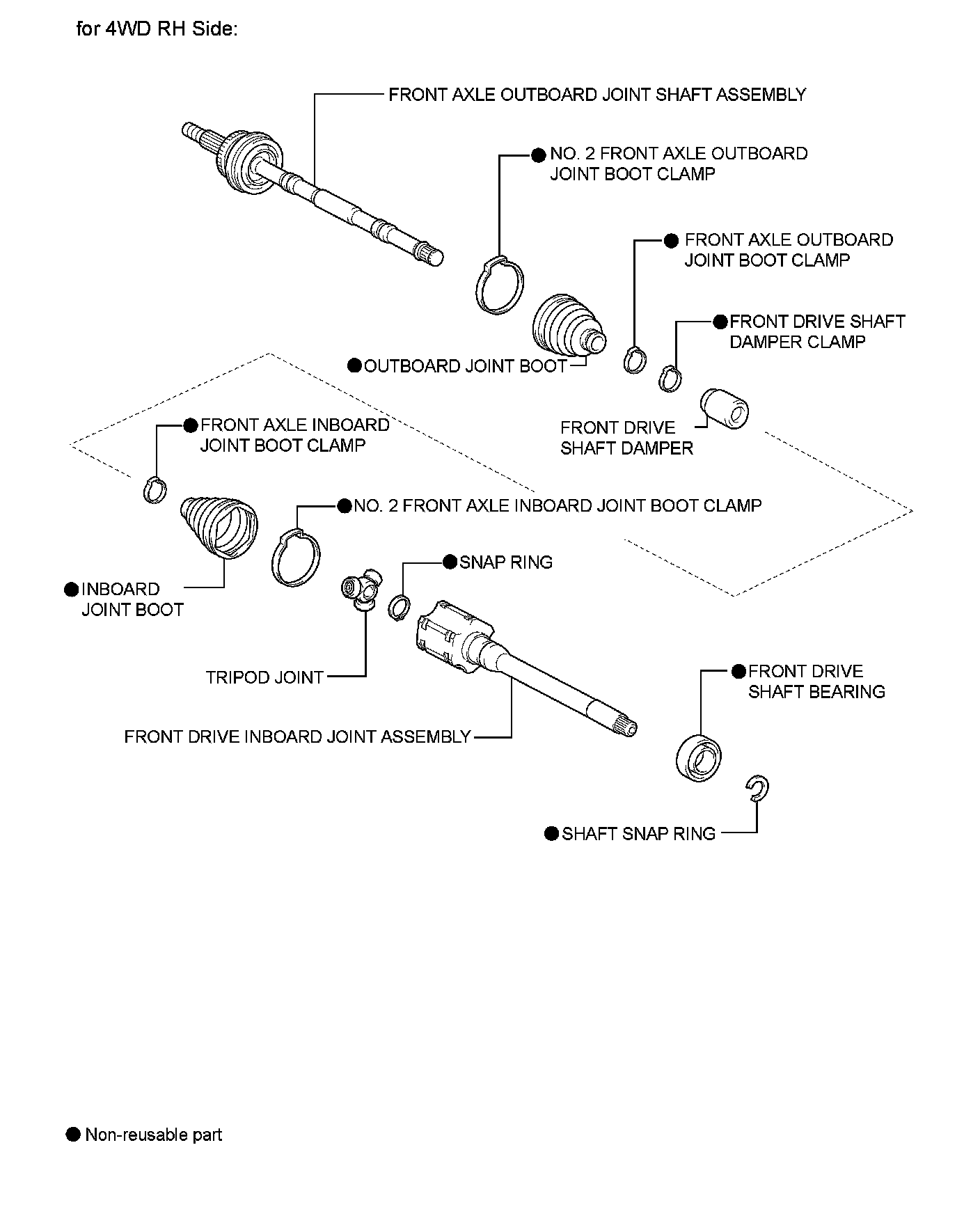

DRIVE SHAFT / PROPELLER SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for 2AZ-FE): COMPONENTS
