Home
>>
Toyota
>>
2012
>>
Matrix FWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

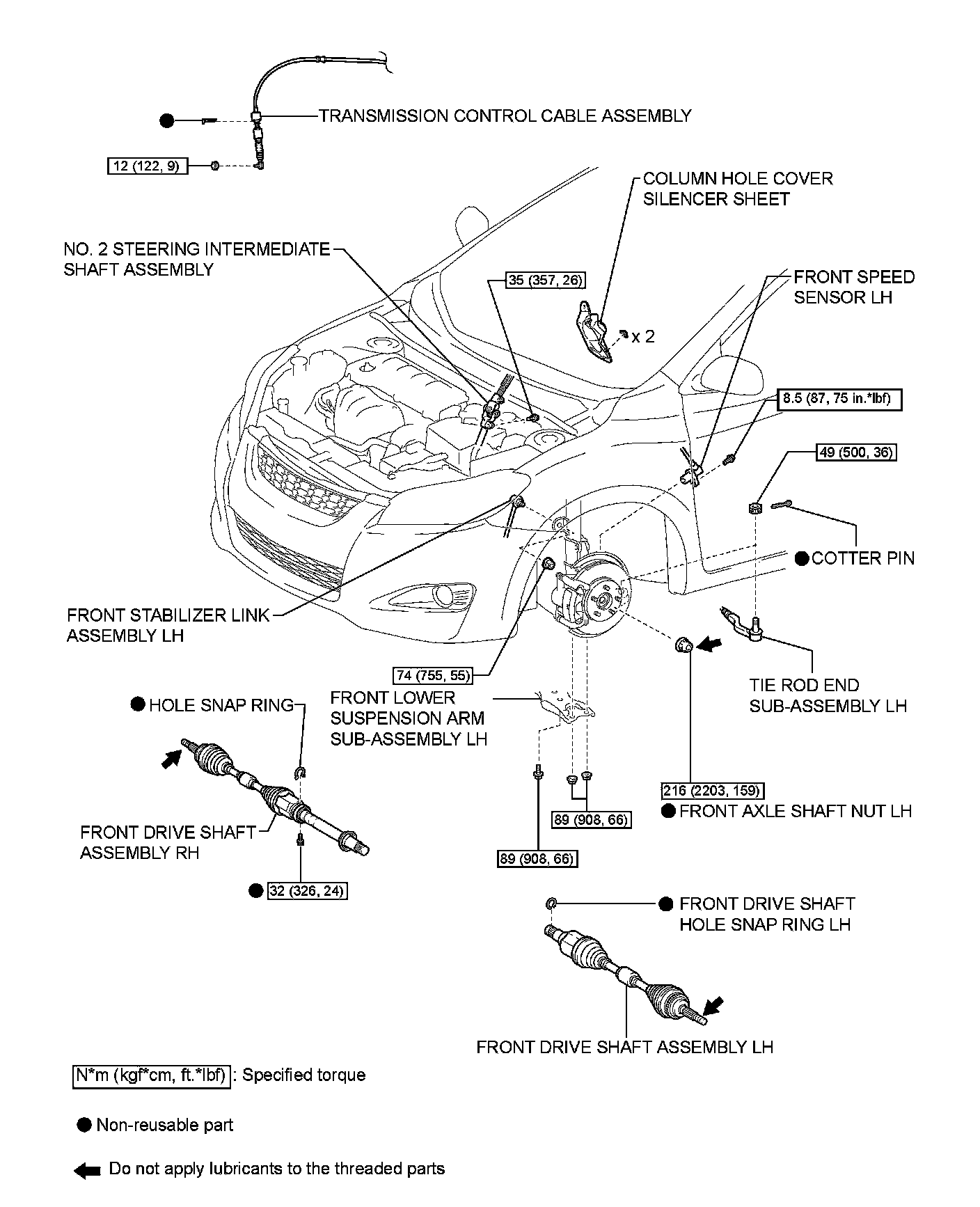

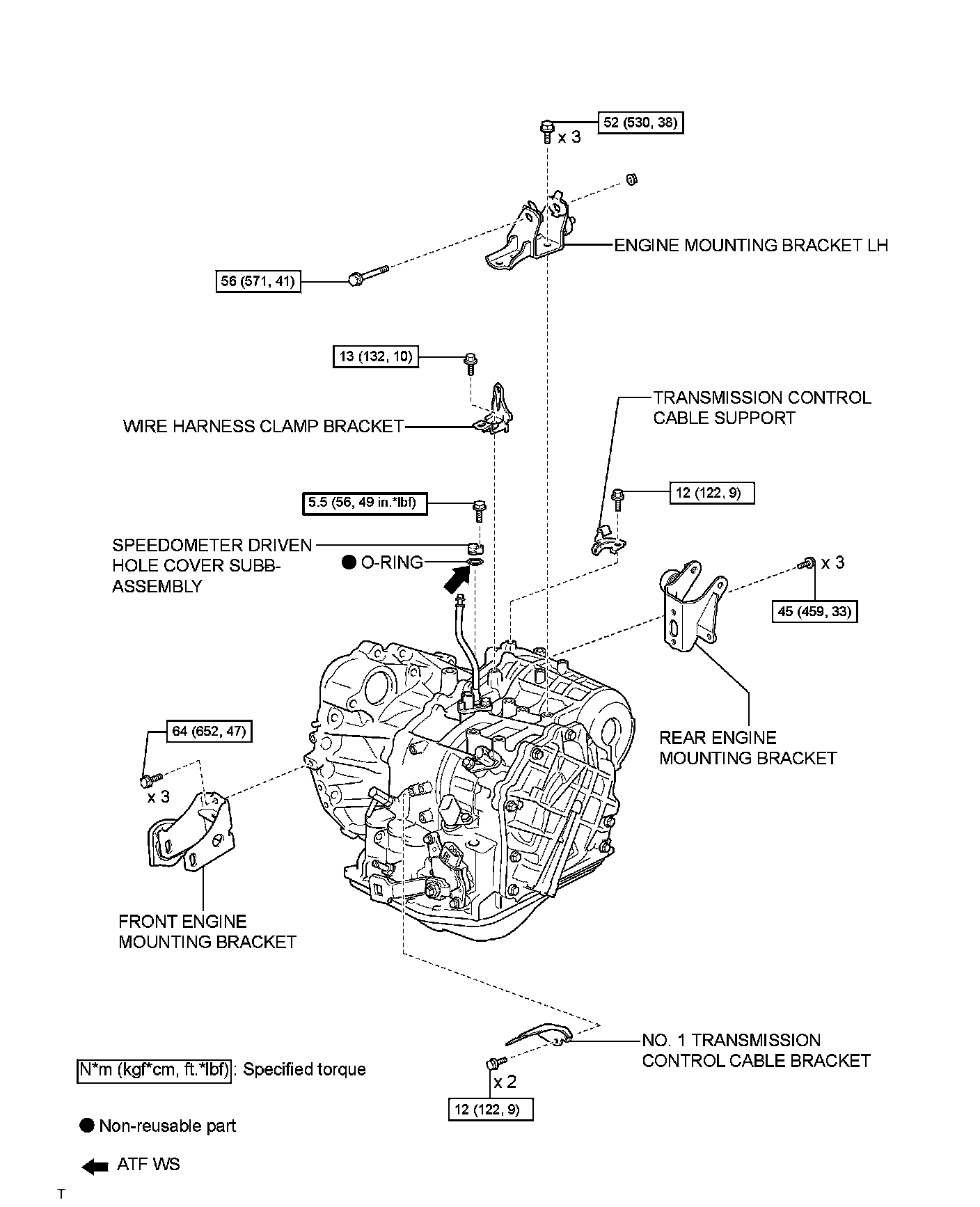

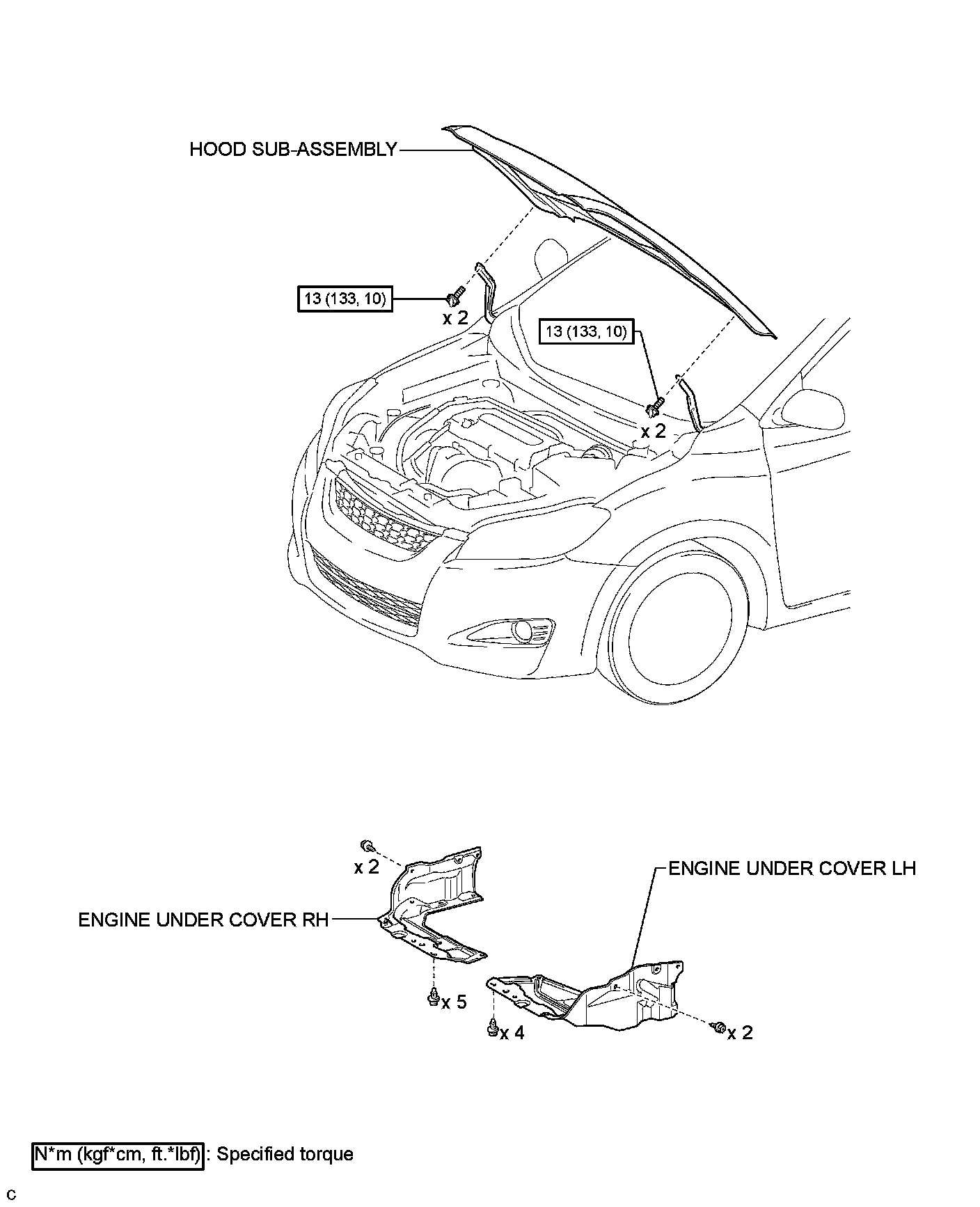

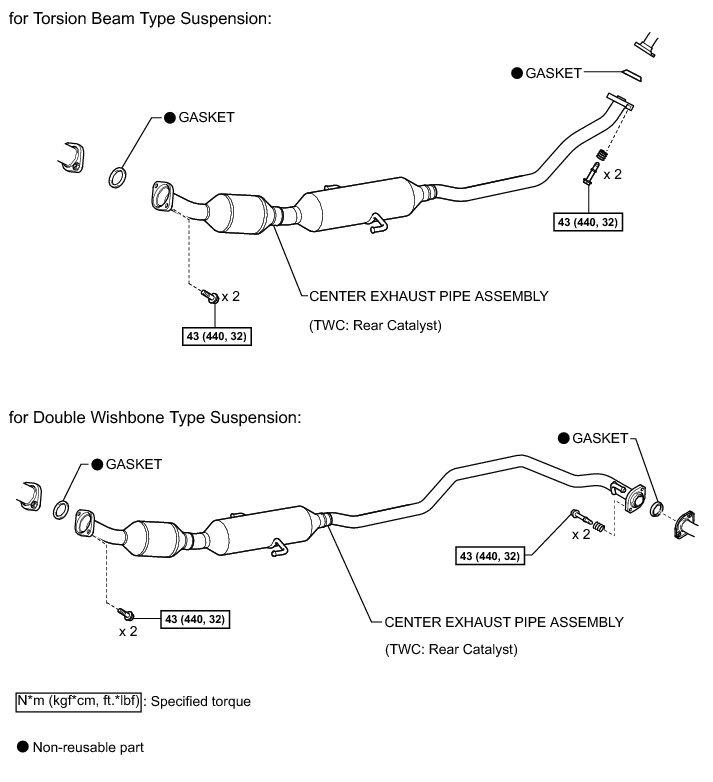

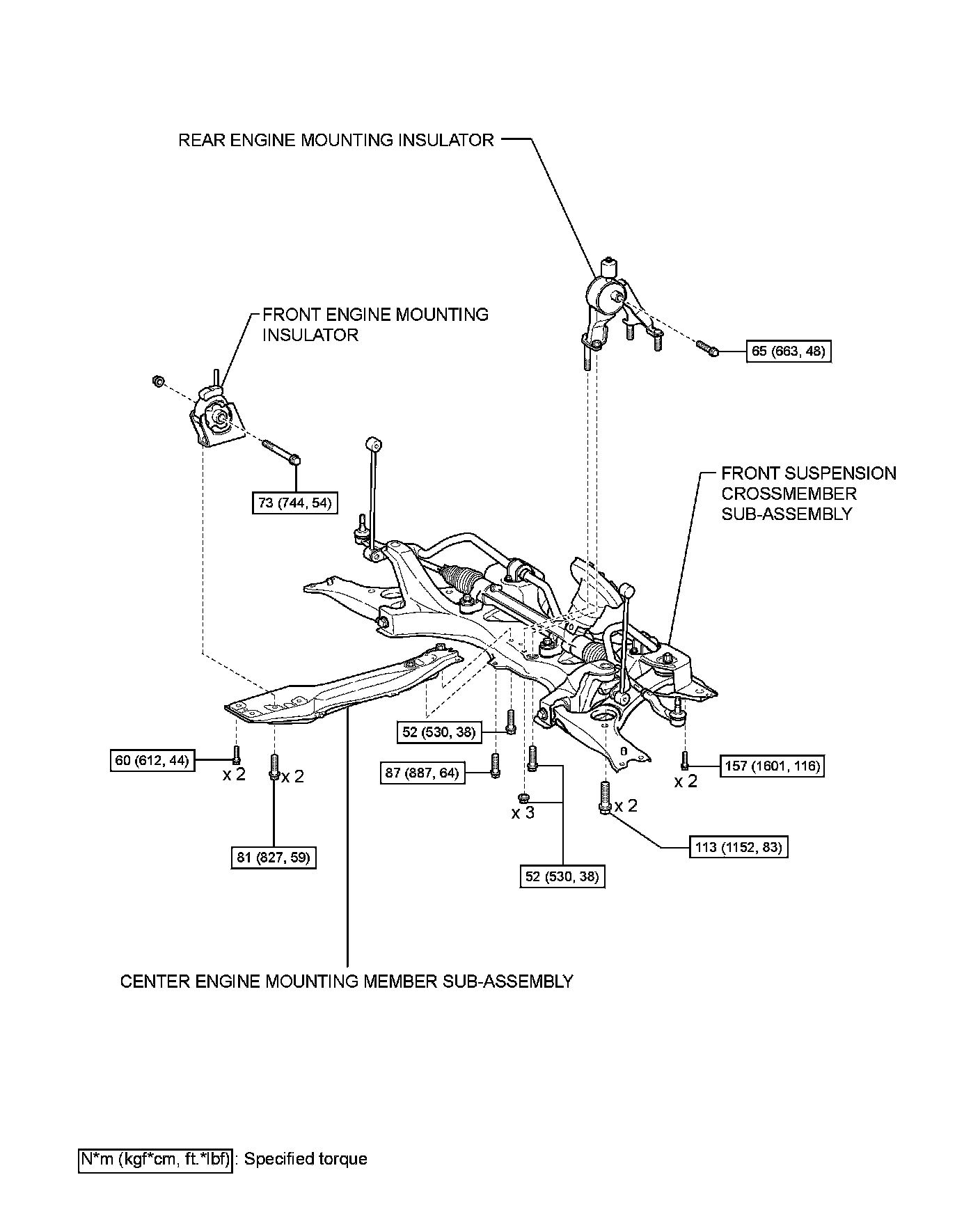

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE ASSEMBLY: COMPONENTS
