Home
>>
Toyota
>>
2012
>>
Matrix FWD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Service and Repair
>>
Removal and Replacement
>>
Rear Seat Assembly
>>
Components
Components

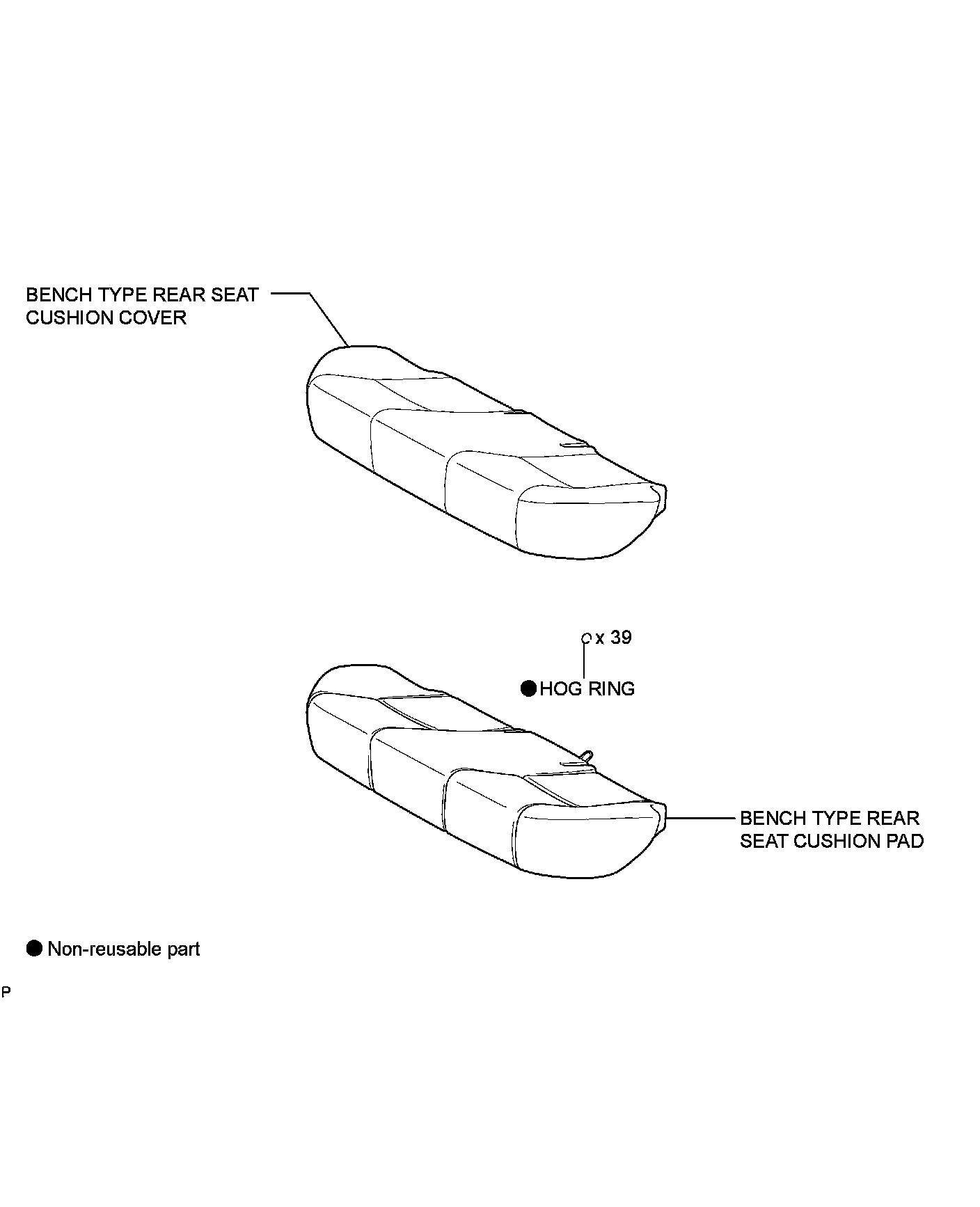

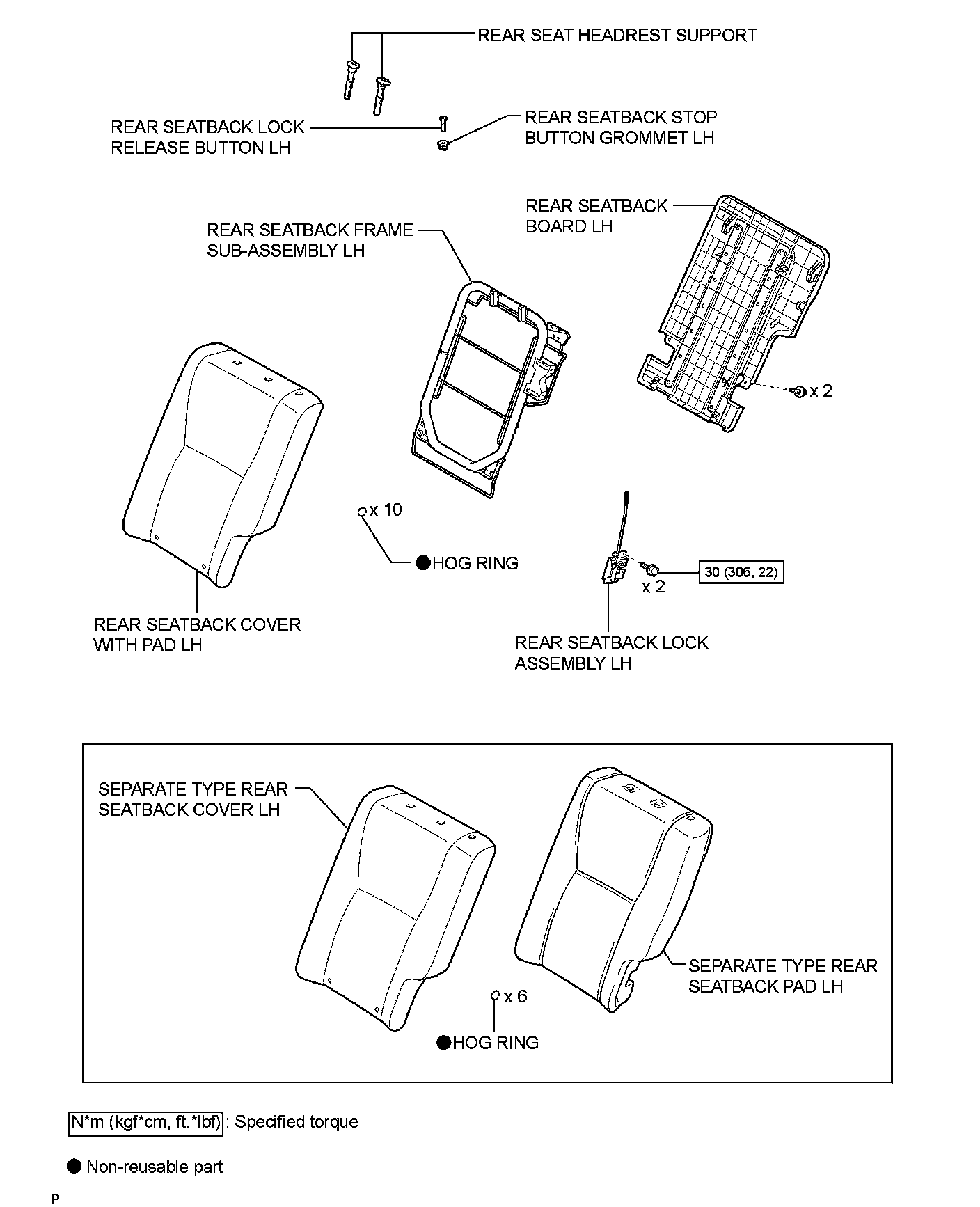

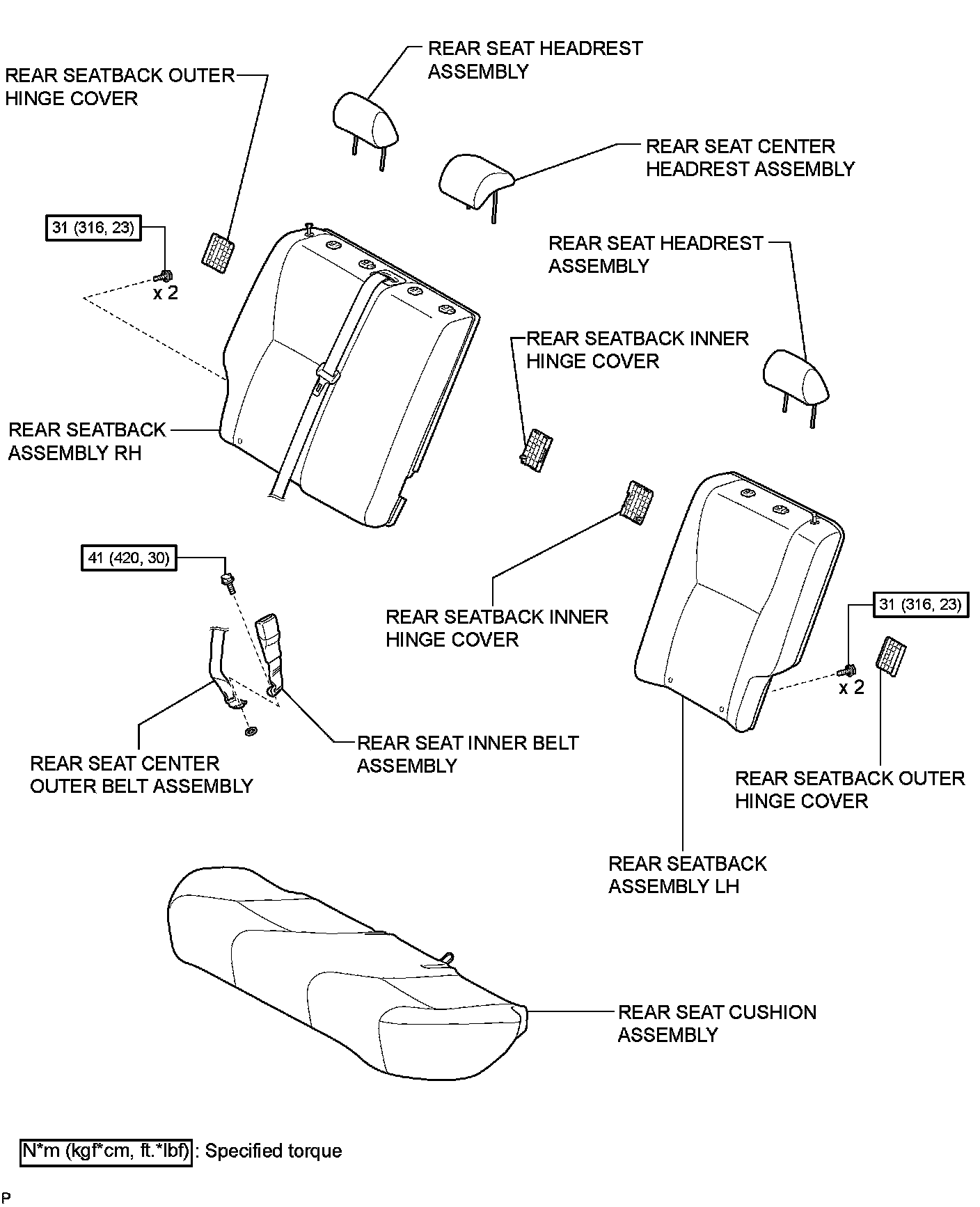

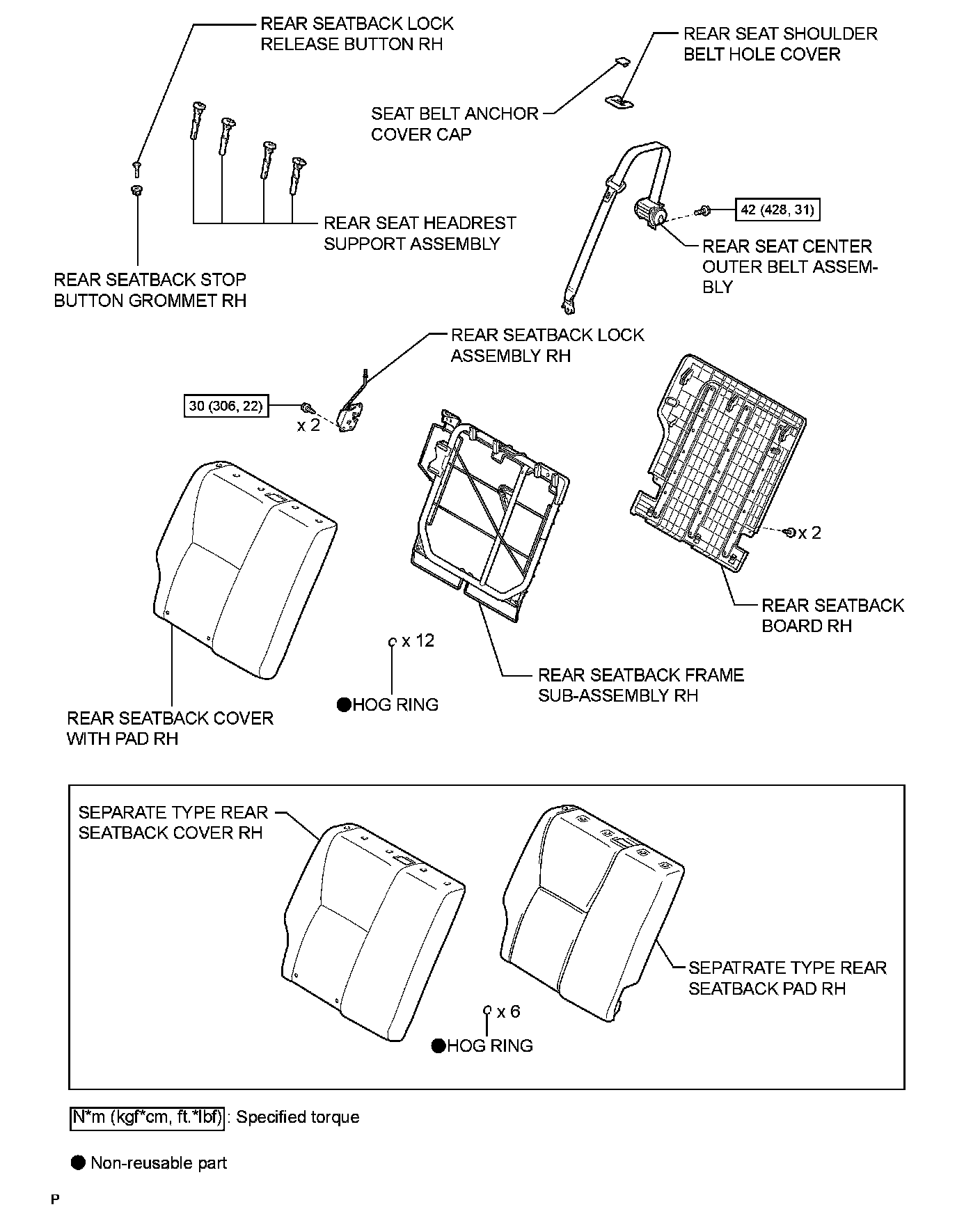

SEAT: REAR SEAT ASSEMBLY: COMPONENTS
