Home >> Toyota >> 2012 >> Matrix AWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Drive/Propeller Shaft >> Service and Repair >> Removal and Replacement >> Components

Components

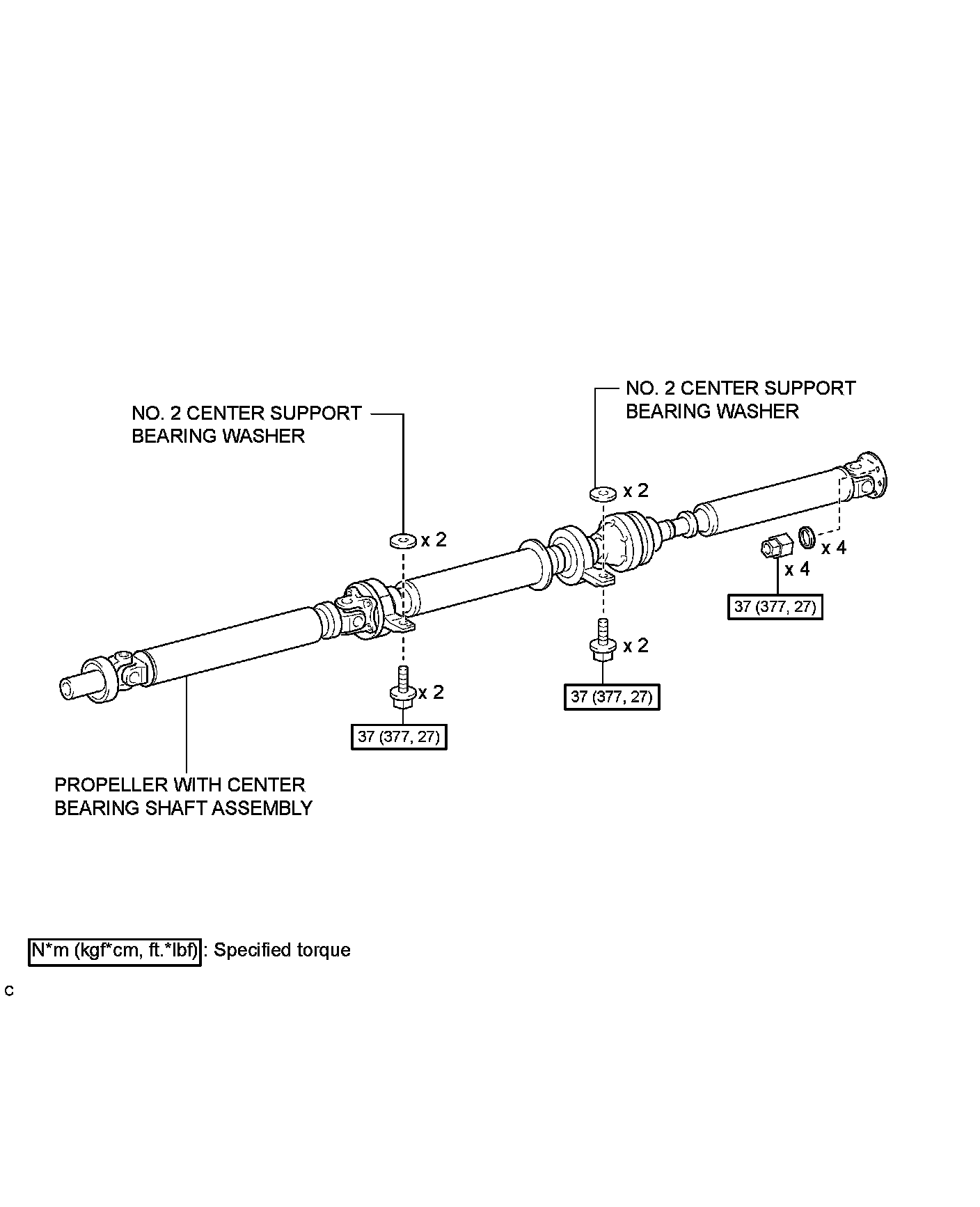

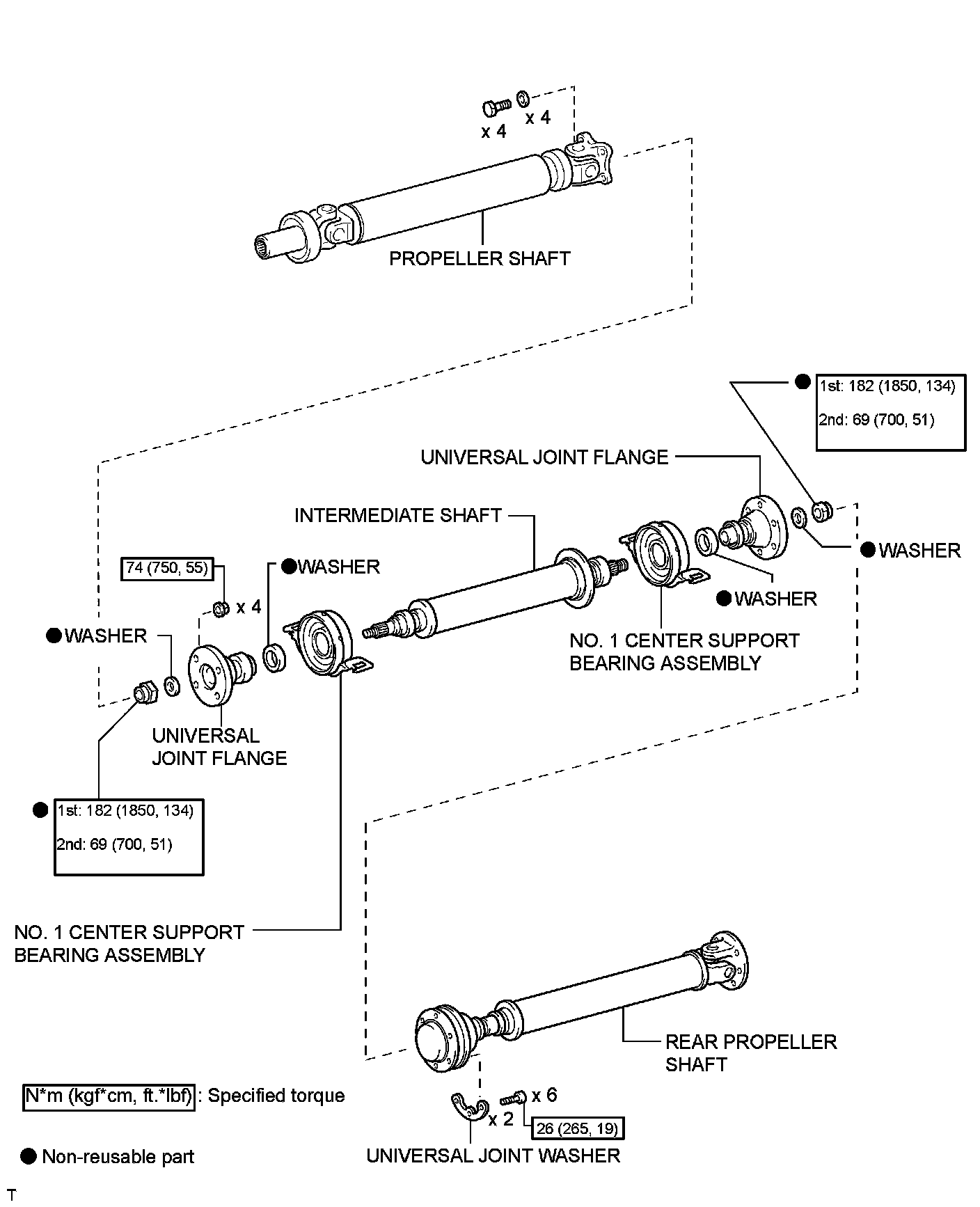

DRIVE SHAFT / PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY: COMPONENTS
