Matrix AWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Axle Beam
>>
Service and Repair
>>
Components
Components
REAR
SUSPENSION

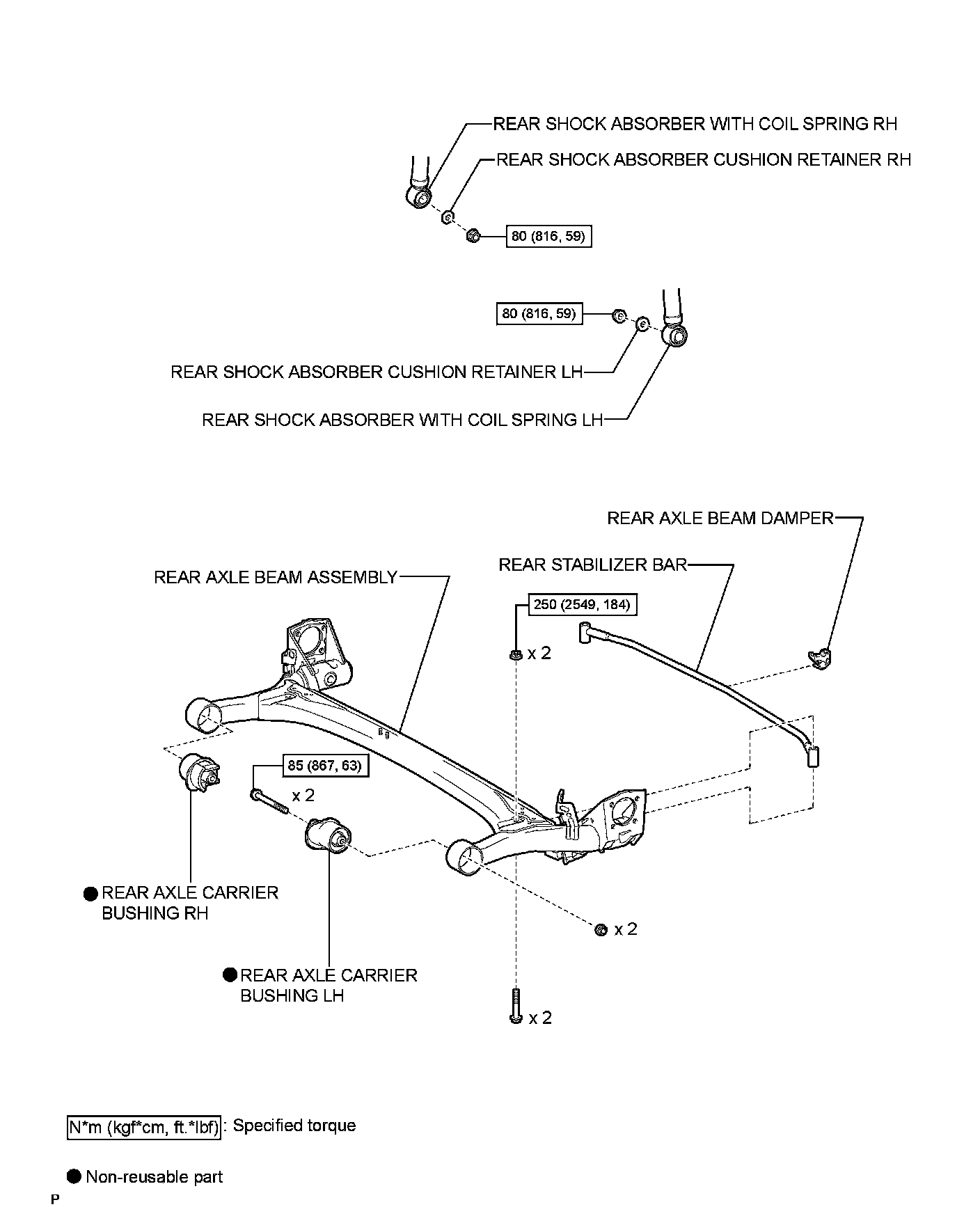

: REAR AXLE BEAM: COMPONENTS
