Service Data





SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: SERVICE DATA

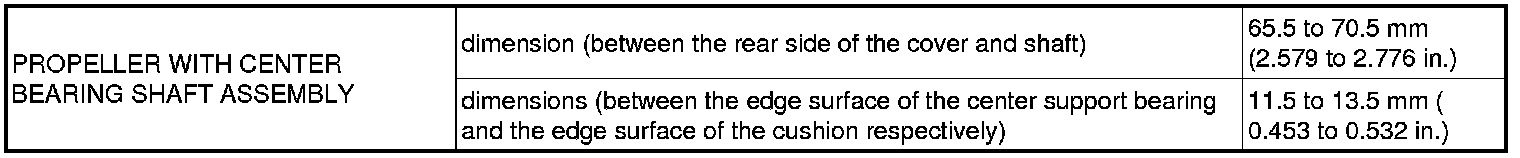

PROPELLER SHAFT

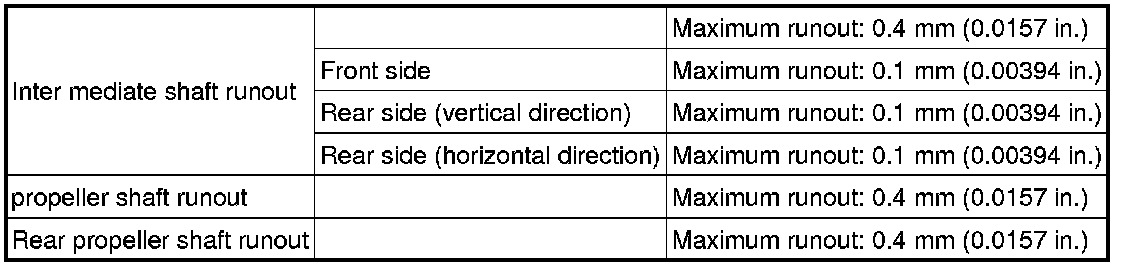

PROPELLER SHAFT






PROPELLER SHAFT






PROPELLER SHAFT
