Home >> Toyota >> 2012 >> Matrix AWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Service and Repair >> Removal and Replacement >> Front Seat Outer Belt Assembly >> Components

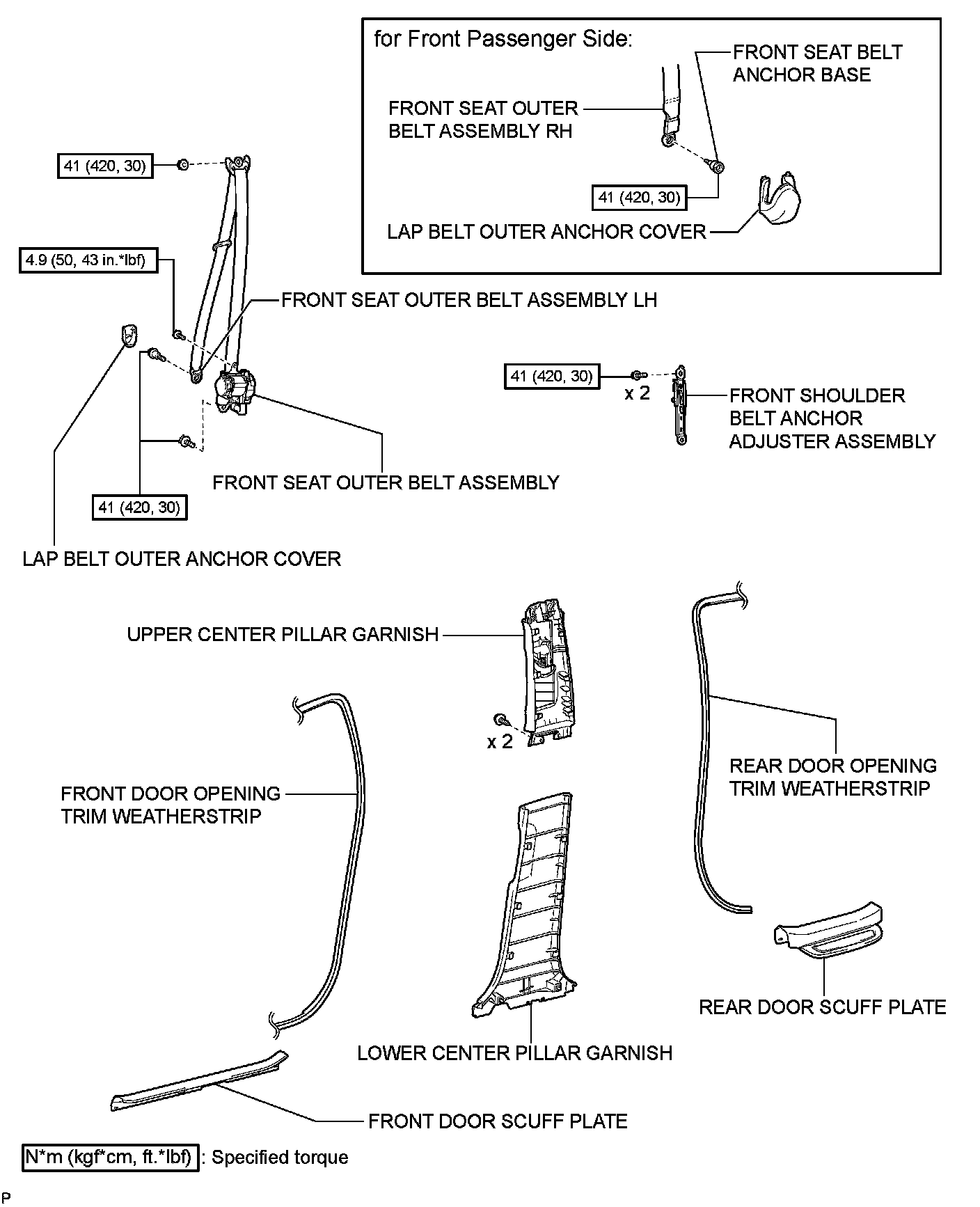

Components





SEAT BELT: FRONT SEAT OUTER BELT ASSEMBLY: COMPONENTS
