Matrix AWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Water Pump
>>
Service and Repair
>>
Components
Components

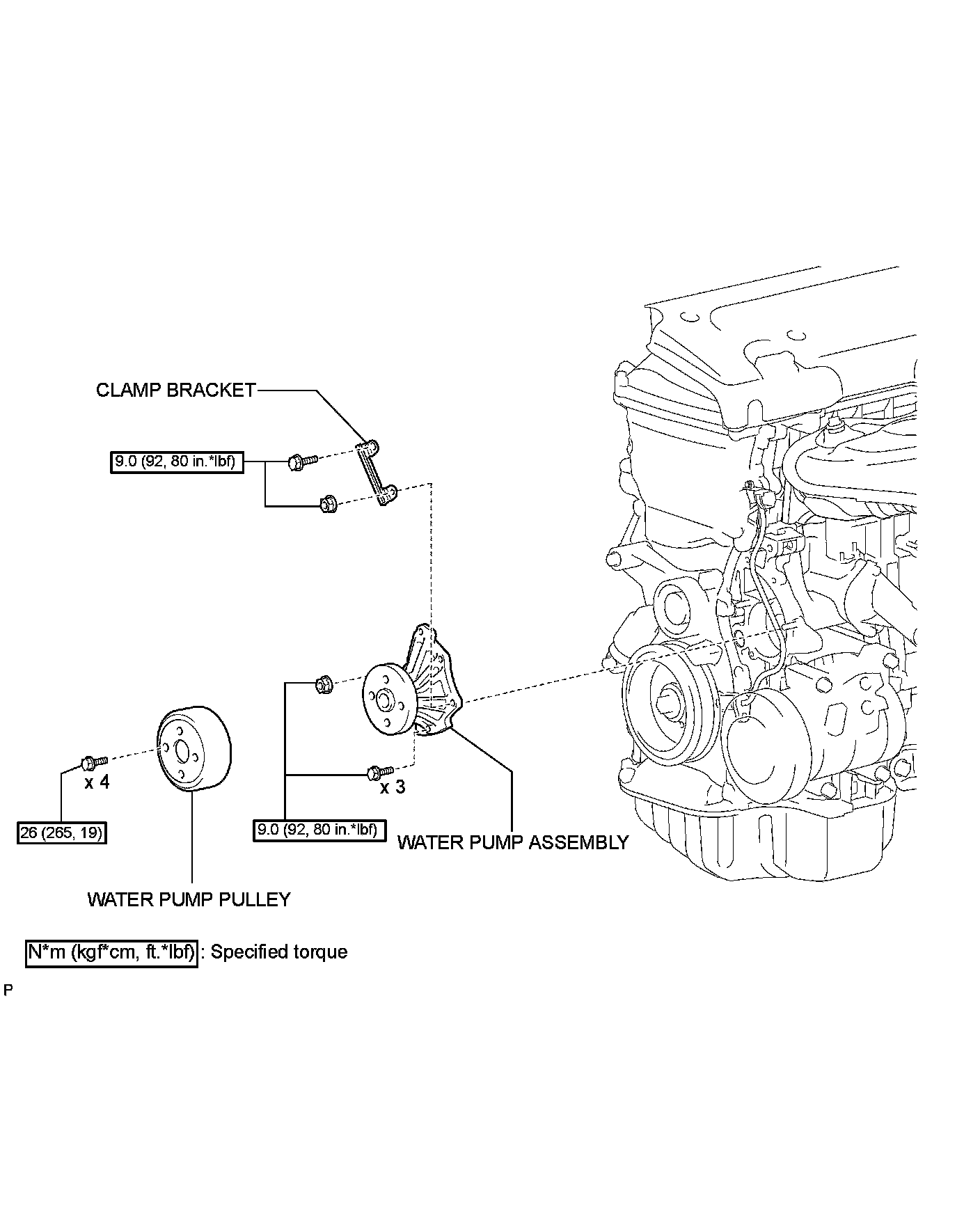

2AZ-FE COOLING: WATER PUMP: COMPONENTS
