Front Seat Assembly (w/o Seatback Board)
>>
Components
Components

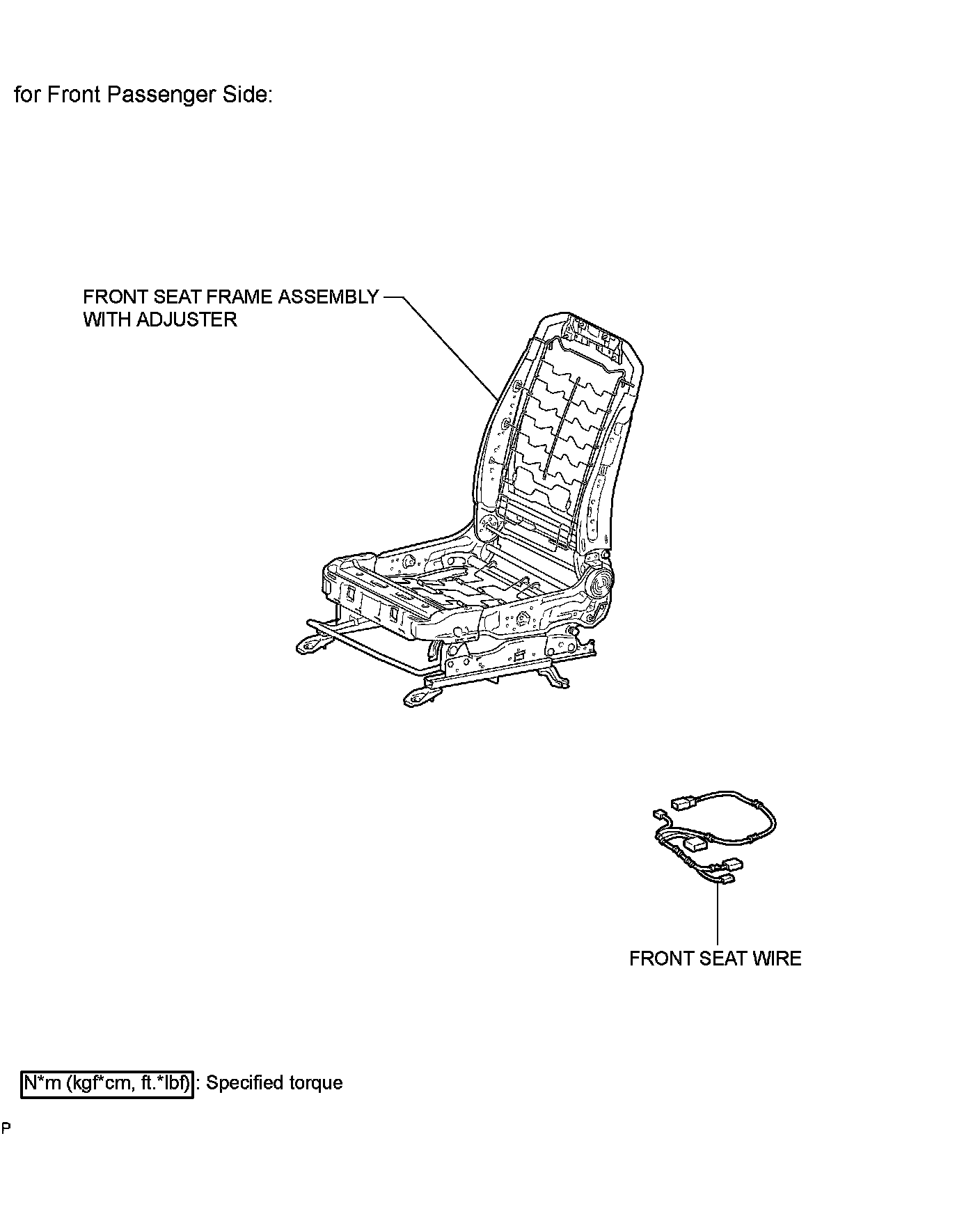

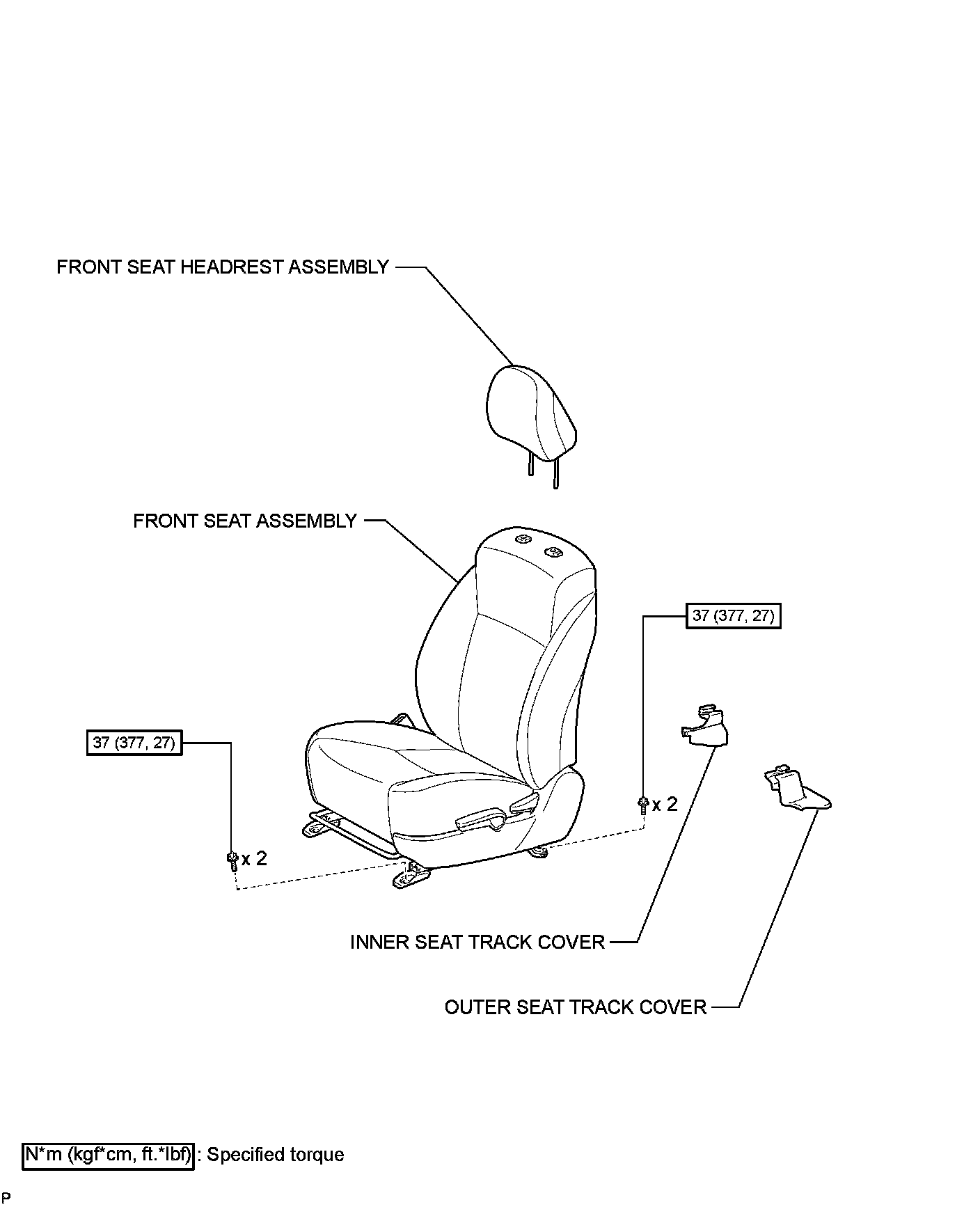

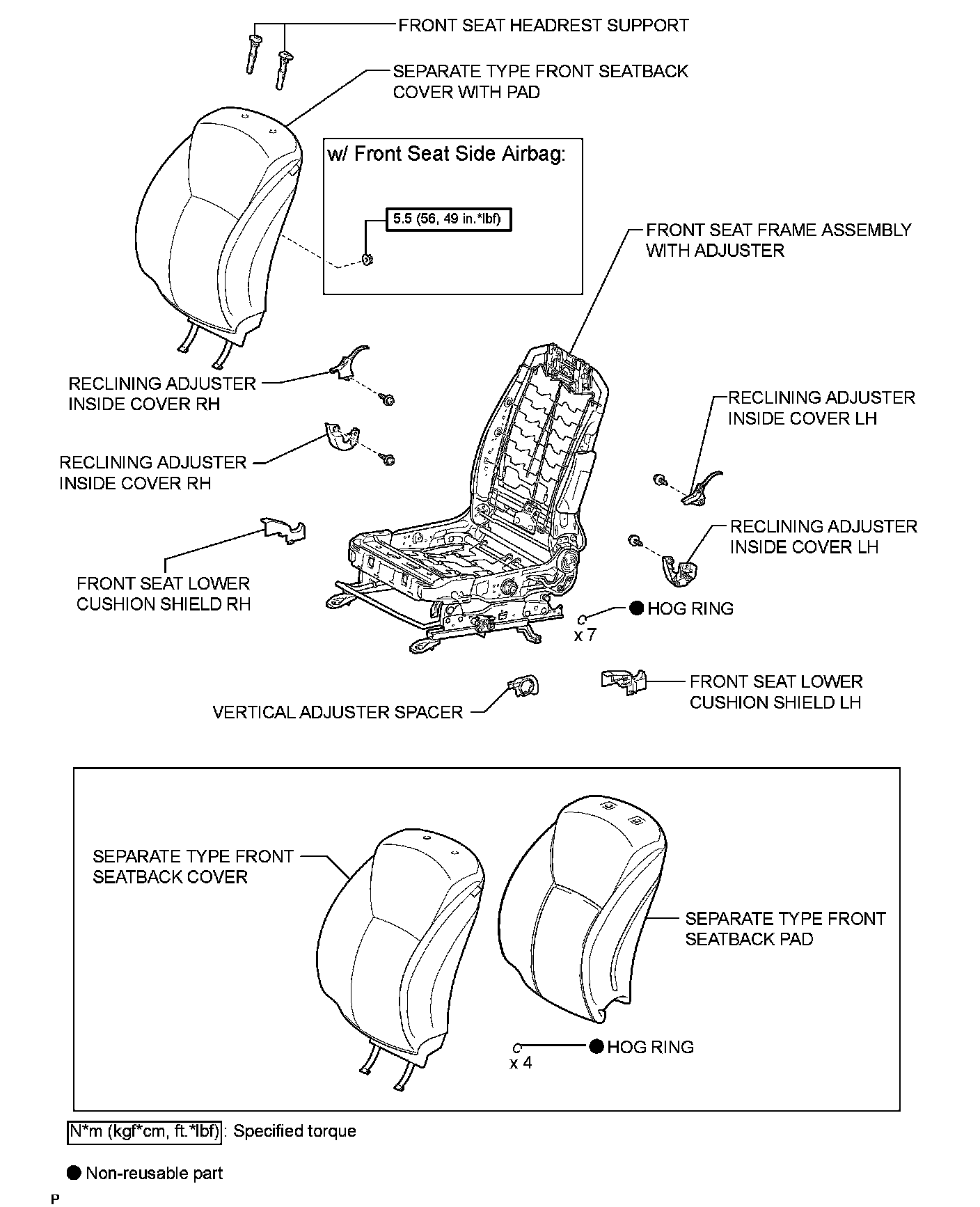

SEAT: FRONT SEAT ASSEMBLY (w/o Seatback Board): COMPONENTS
