Air Conditioning System (for Manual Air Conditioning System)
>>

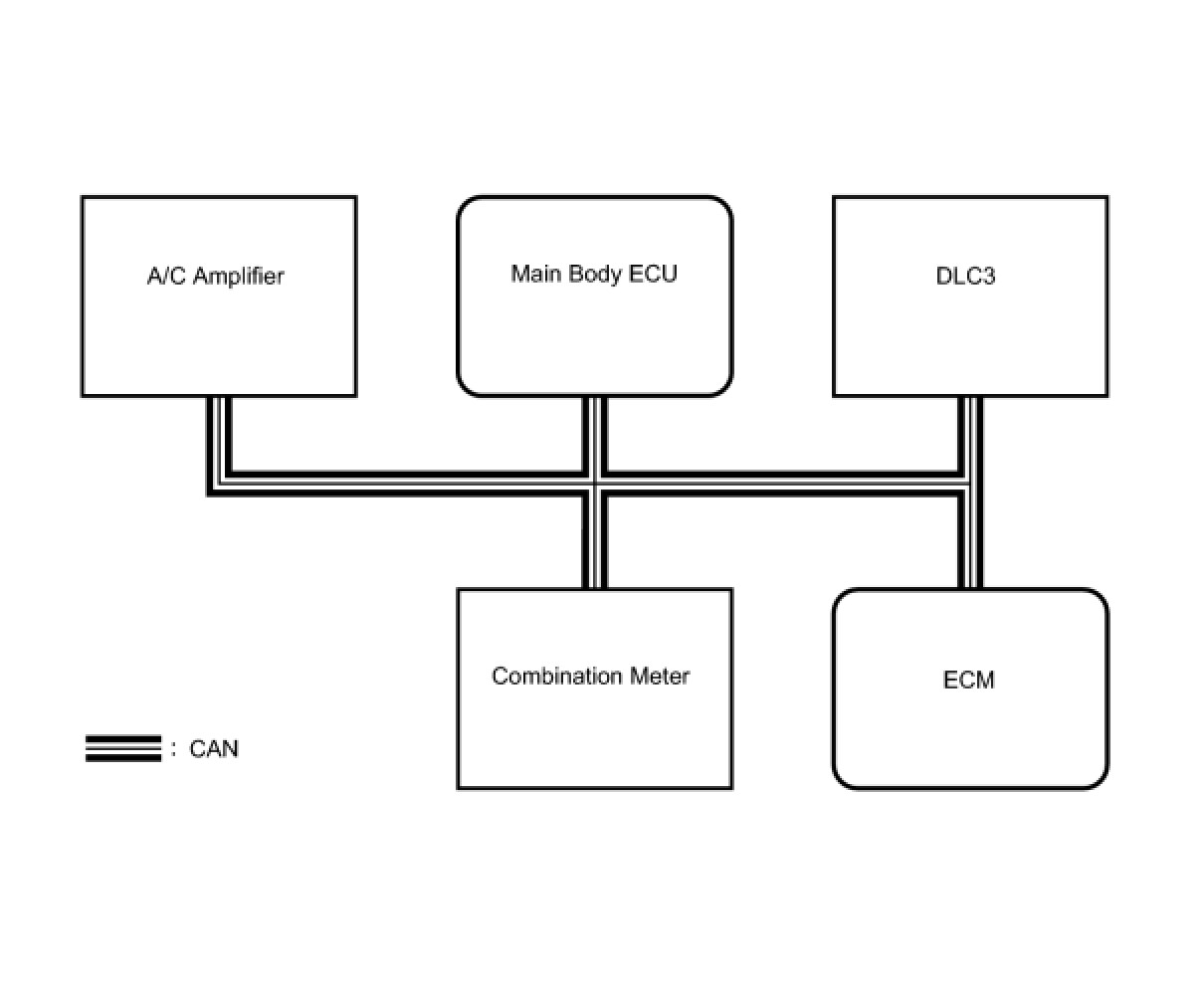

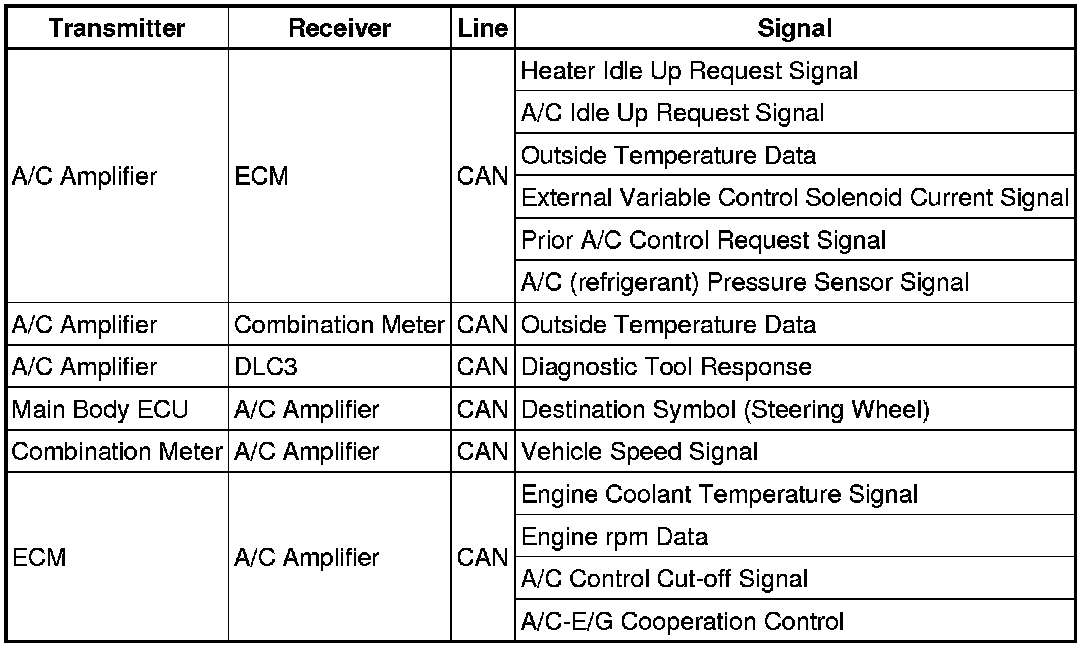

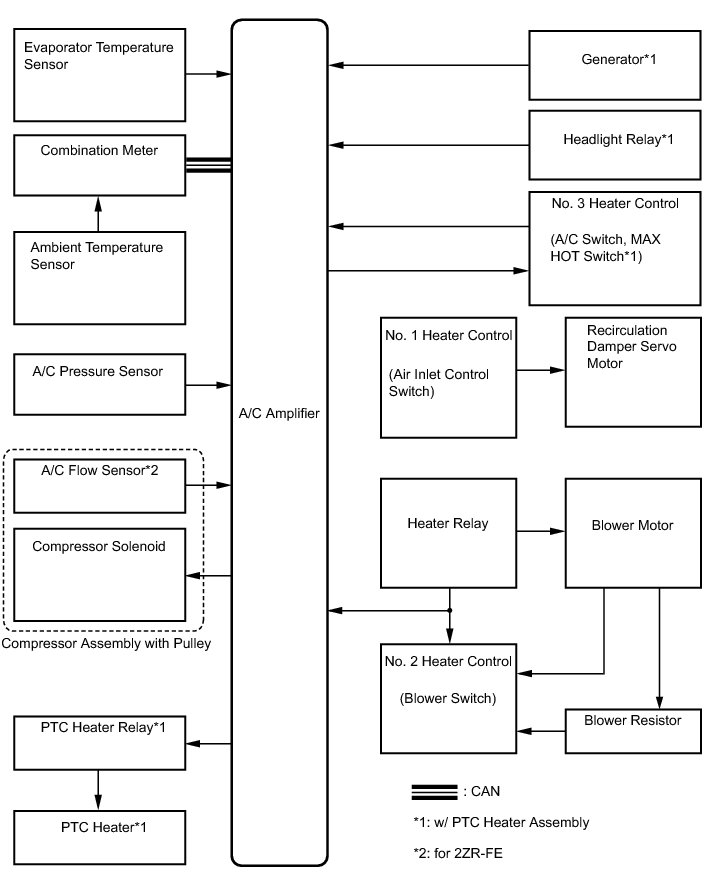

System Diagram
System Diagram
HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): SYSTEM DIAGRAM
