Power Seat Switch

SEAT: POWER SEAT SWITCH: INSPECTION

1. INSPECT POWER SEAT SWITCH





(a) Measure the resistance between the terminals when each switch is operated.

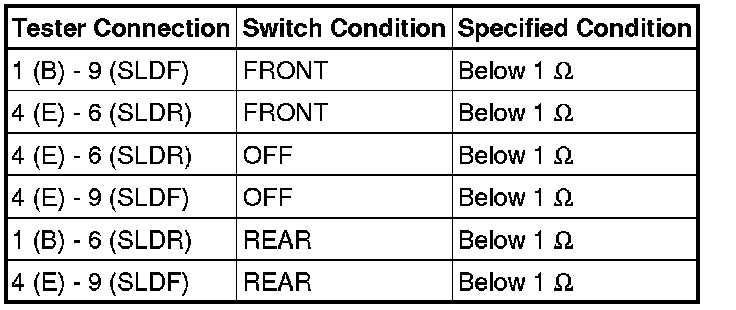

Standard Resistance (Slide Switch):

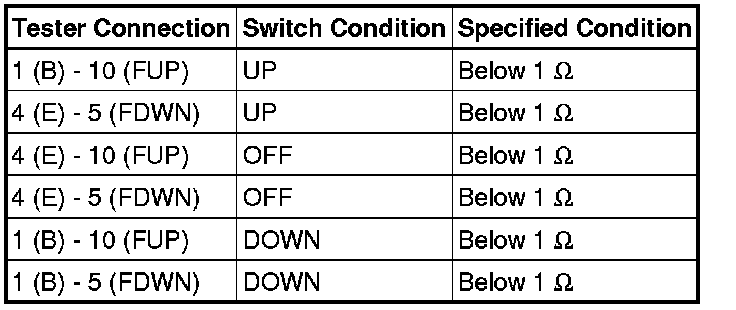

Standard Resistance (Front Vertical Switch):

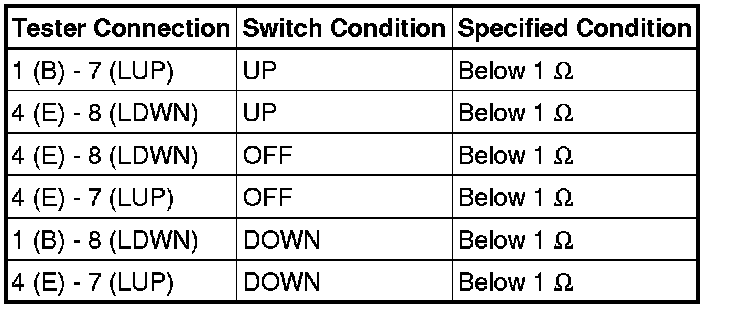

Standard Resistance (Lifter Switch):

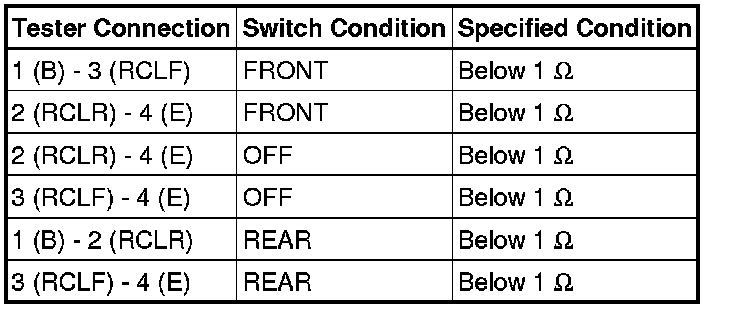

Standard Resistance (Reclining Switch):





If the result is not as specified, replace the switch.
