System Diagram
STEERING COLUMN

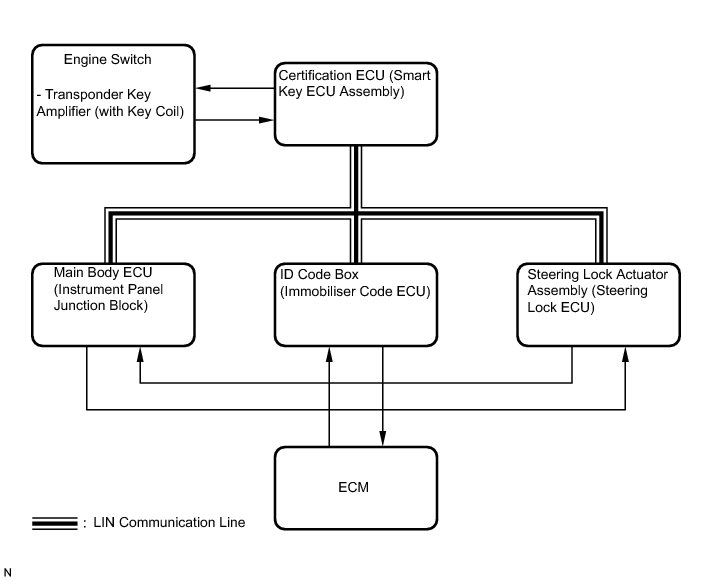

: STEERING LOCK SYSTEM: SYSTEM DIAGRAM

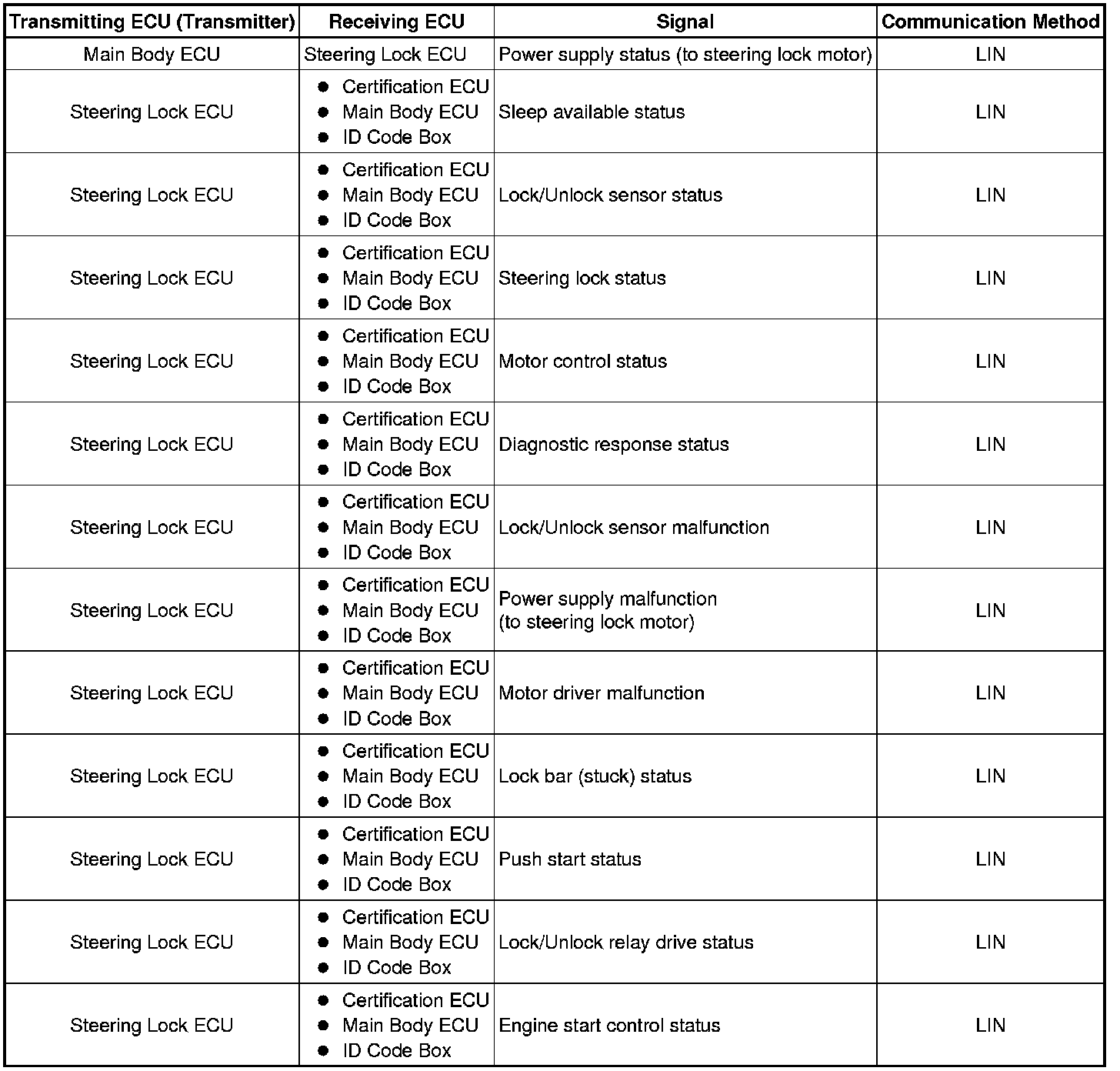

Input and Output Signals of Each ECU
