Reassembly

U660E AUTOMATIC TRANSMISSION / TRANSAXLE: OIL PUMP: REASSEMBLY

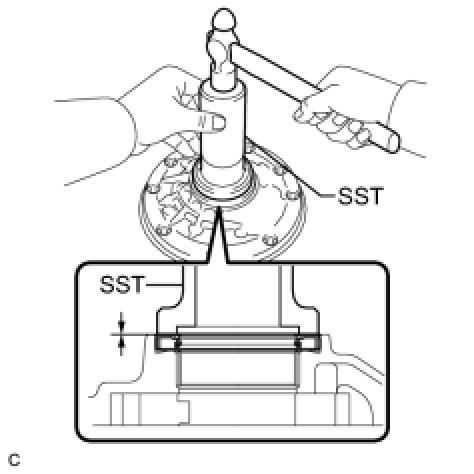

1. INSTALL FRONT OIL PUMP OIL SEAL

(a) Using SST and a hammer, install a new front oil pump oil seal to the front oil pump body sub-assembly.





SST : 09350-32014

09351-32140

Oil seal driven in depth:

-0.25 to 0.25 mm (-0.00984 to 0.00984 in.)

(b) Coat the lip of the front oil pump oil seal with MP grease.

2. INSTALL FRONT OIL PUMP BODY O-RING

(a) Coat a new O-ring with ATF and install it to the front oil pump body sub-assembly.





NOTICE:
Ensure that the O-ring is not twisted.

3. INSTALL FRONT OIL PUMP DRIVEN GEAR

(a) Coat the front oil pump driven gear with ATF and install it to the front oil pump body sub-assembly with the marked side facing up.





4. INSTALL FRONT OIL PUMP DRIVE GEAR

(a) Coat the front oil pump drive gear with ATF, and install it to the front oil pump body sub-assembly with the marked side facing up.





5. INSTALL STATOR SHAFT ASSEMBLY

(a) Align each knock pin of the stator shaft assembly with the holes in the front oil pump body sub-assembly and install the stator shaft assembly to the front oil pump body sub-assembly.





(b) Using a "TORX" socket wrench (T30), install the 16 bolts.

Torque : 9.3 Nm (95 kgf-cm, 82 in-lbf)

Bolt Length:

Bolt A
14 mm (0.551 in.)

Bolt B
26 mm (1.02 in.)

6. INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY Oil Pump
