Removal

2GR-FE EMISSION CONTROL: PCV VALVE: REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

2. REMOVE VENTILATION VALVE SUB-ASSEMBLY

(a) Disconnect the ventilation hose from the ventilation valve sub-assembly.

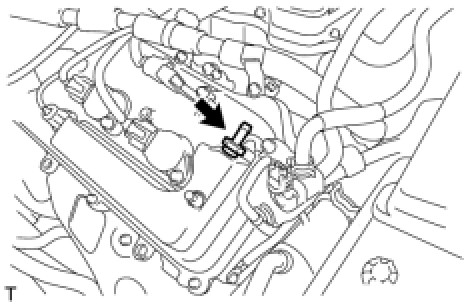

(b) Using a 19 mm deep socket wrench, remove the ventilation valve sub-assembly.
