Removal

2GR-FE ENGINE MECHANICAL: DRIVE BELT: REMOVAL

1. REMOVE FRONT WHEEL RH

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

3. REMOVE ENGINE UNDER COVER RH

4. REMOVE FRONT FENDER APRON SEAL RH

5. REMOVE V-RIBBED BELT

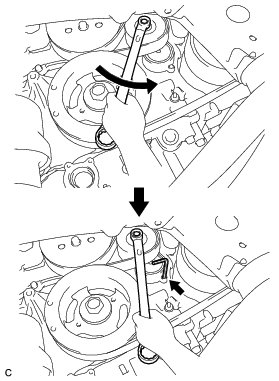

(a) Release the V-ribbed belt tension by turning the V-ribbed belt tensioner counterclockwise, and remove the V-ribbed belt from the V-ribbed belt tensioner.





(b) While turning the V-ribbed belt tensioner counterclockwise, align its holes, and then insert a 5 mm hexagon wrench into the holes to fix the V-ribbed belt tensioner.
