Removal

2GR-FE LUBRICATION: OIL PRESSURE SWITCH: REMOVAL

1. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

(a) Disconnect the connector.

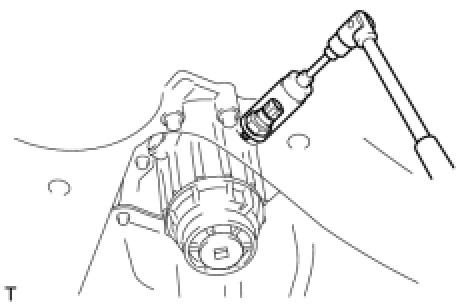

(b) Using a deep socket wrench, remove the oil pressure switch.
