46 - 49 - Position of Parts In Engine Compartment
46 - 49 - Position of Parts In Engine Compartment

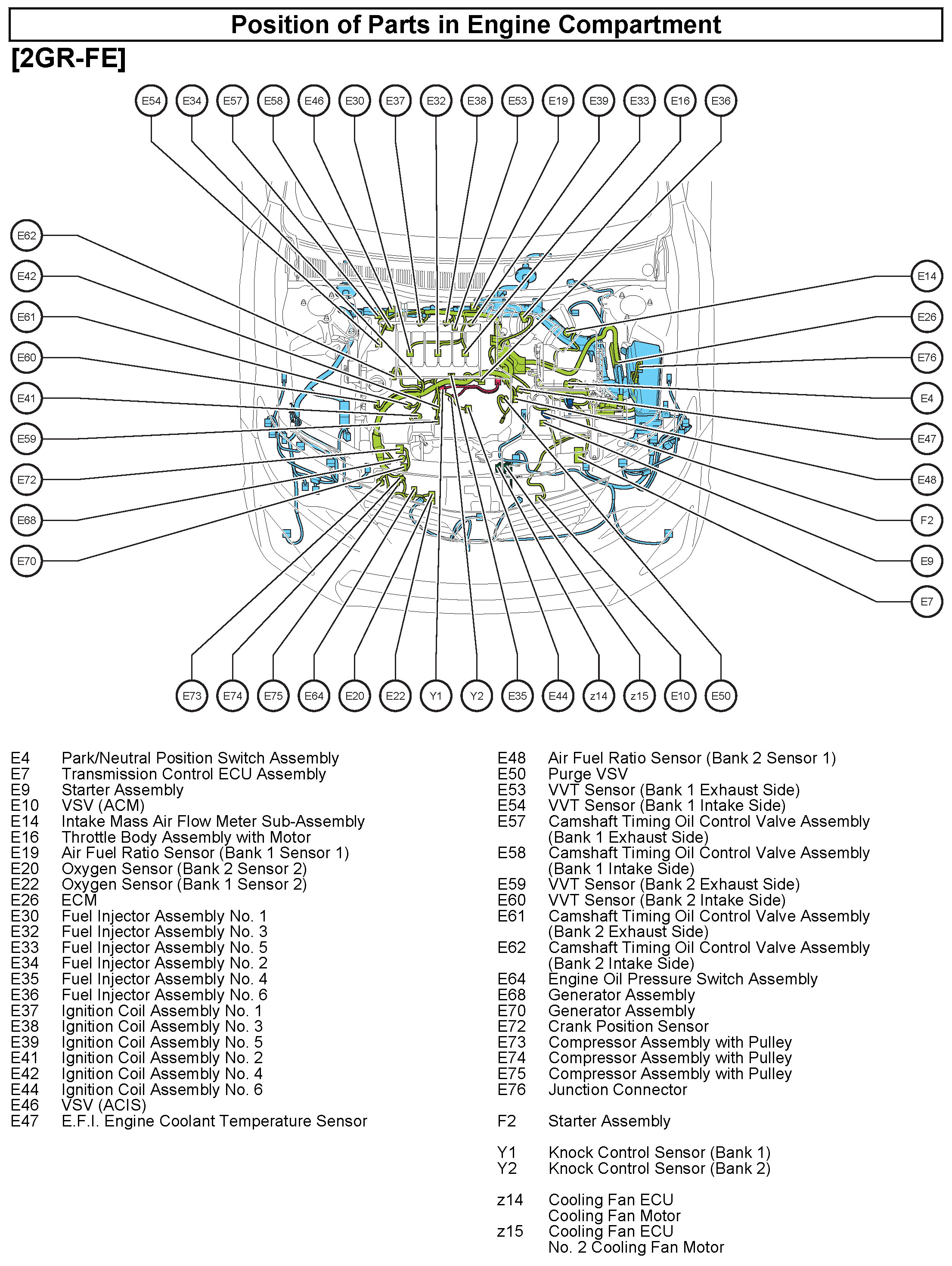

46 - Position of Parts in Engine Compartment:

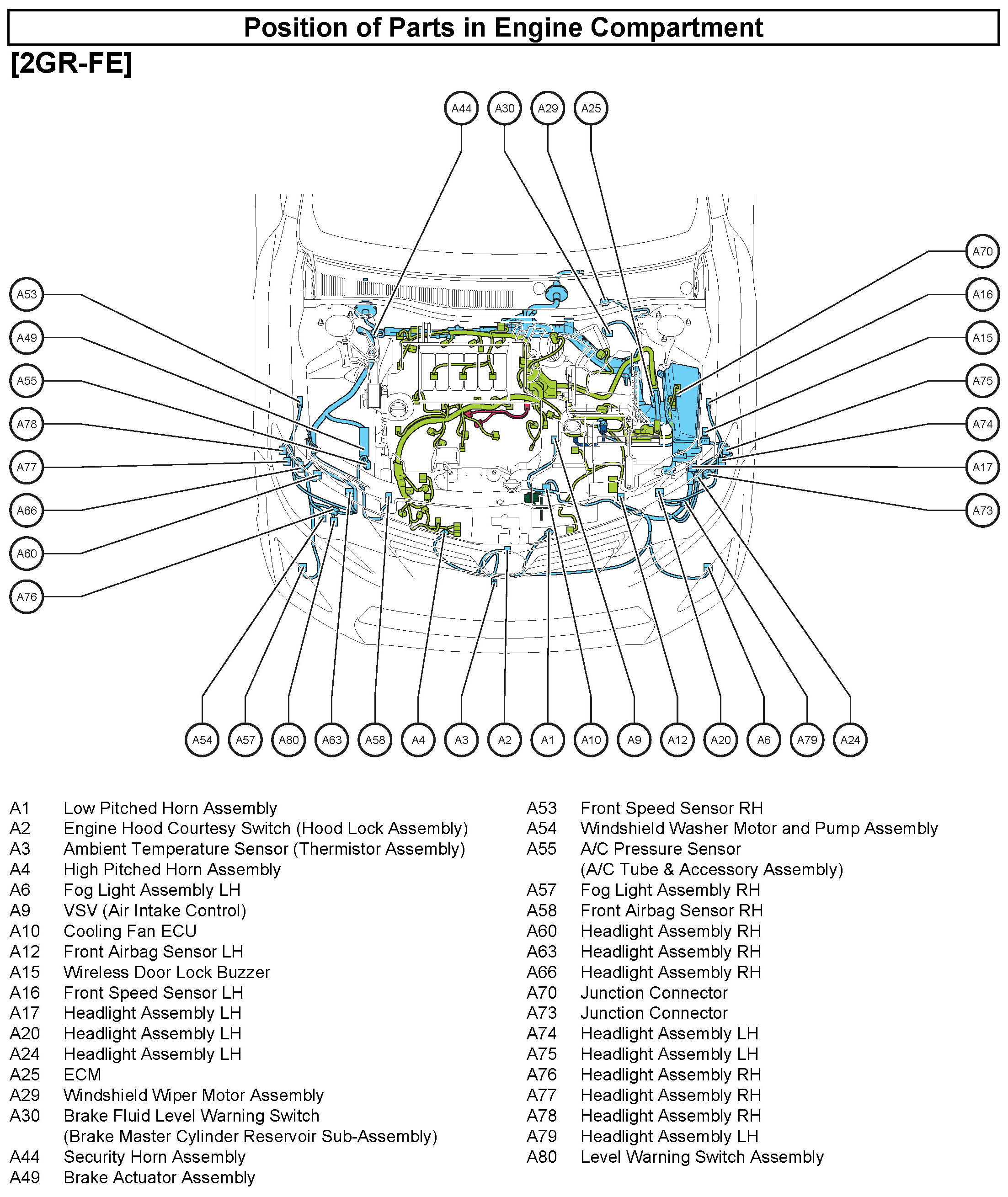

47 - Position of Parts in Engine Compartment:
