P0575

CRUISE CONTROL: CRUISE CONTROL SYSTEM: P0575: Cruise Control Input Circuit
P0575 - Cruise Control Input Circuit

DESCRIPTION

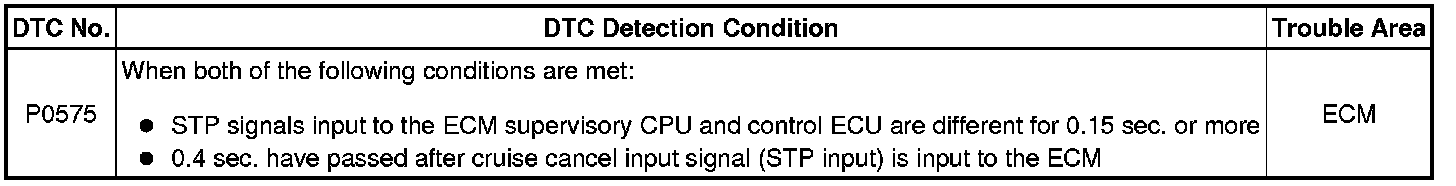

This DTC indicates an abnormality in the ECM.





HINT
The ECM receives signals from each sensor to control all functions of the cruise control system. When a trouble code is detected, the fail-safe function remains on until the ignition switch is turned off.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTCs

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(e) Perform the following to make sure that the DTC detection conditions are met.

HINT
If the detection conditions are not met, the malfunction cannot be detected.

(1) Drive the vehicle at a speed for which cruise control operation is possible.

(2) Turn the cruise control system on using the cruise control switch (ON-OFF button).

(3) Push the cruise control switch to -/SET to begin control of vehicle speed using the cruise control system.

(f) Check the DTCs Reading and Clearing Diagnostic Trouble Codes.

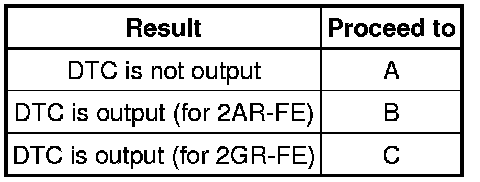

Result:





B -- REPLACE ECM Removal

C -- REPLACE ECM Removal

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
