SFI System

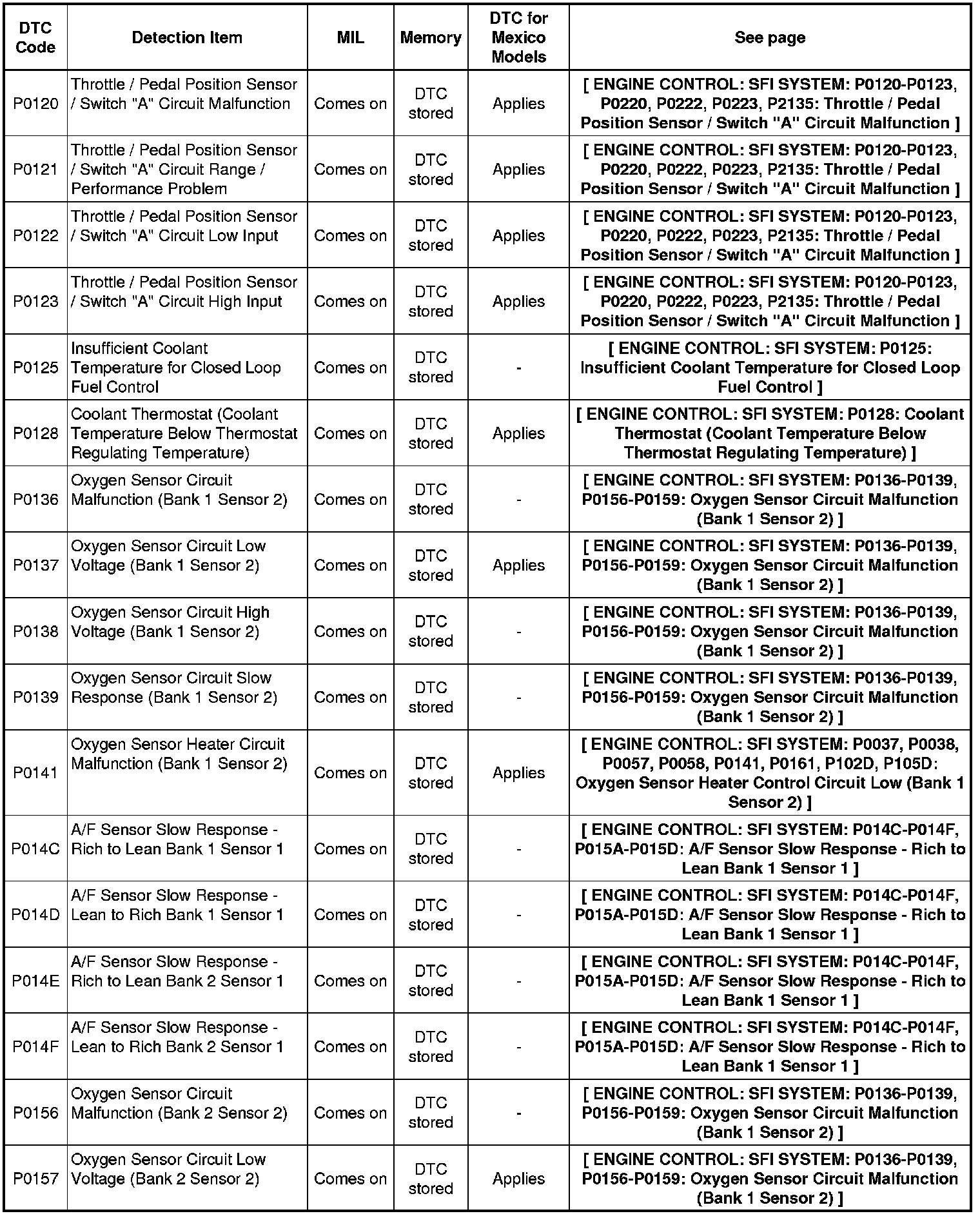

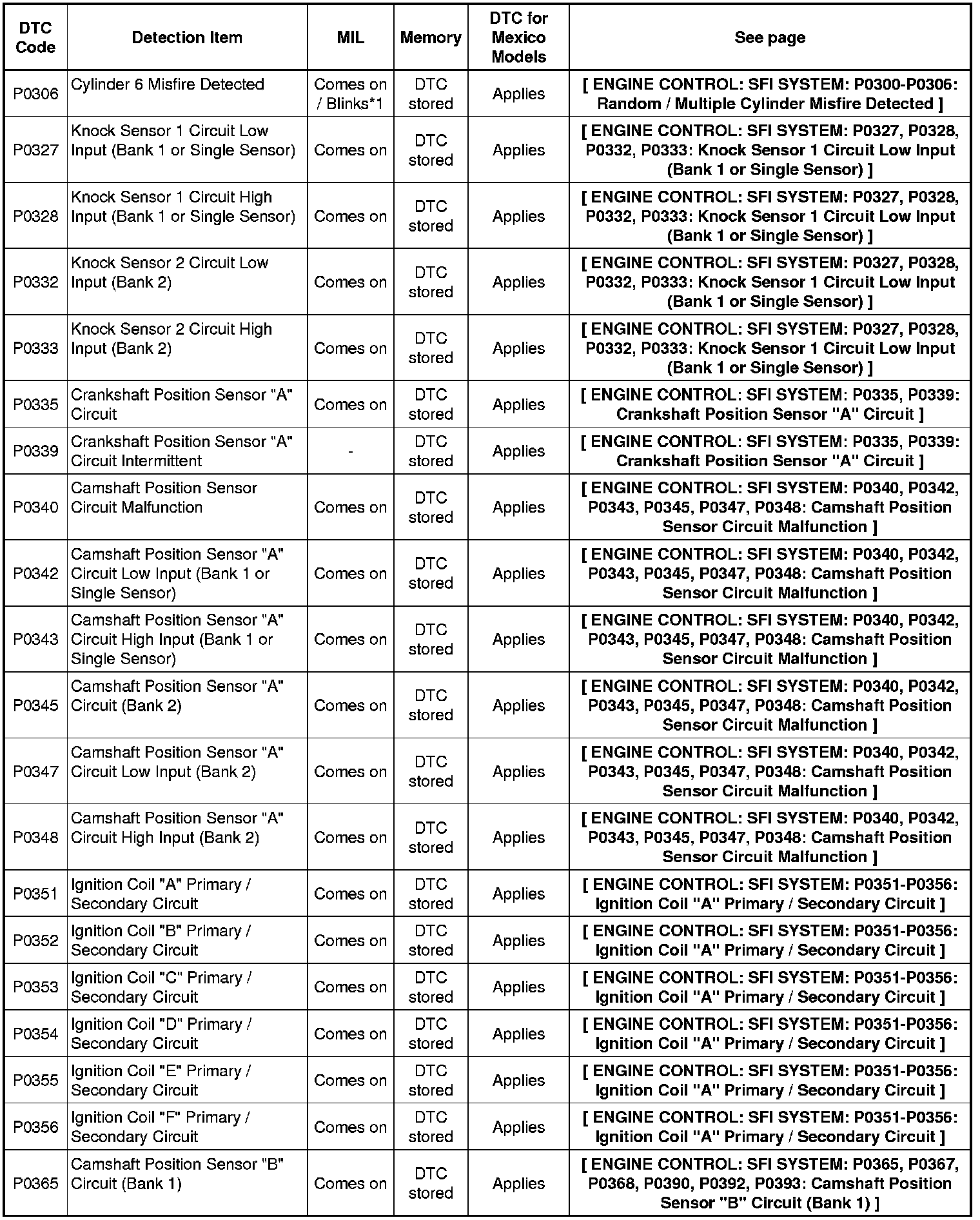

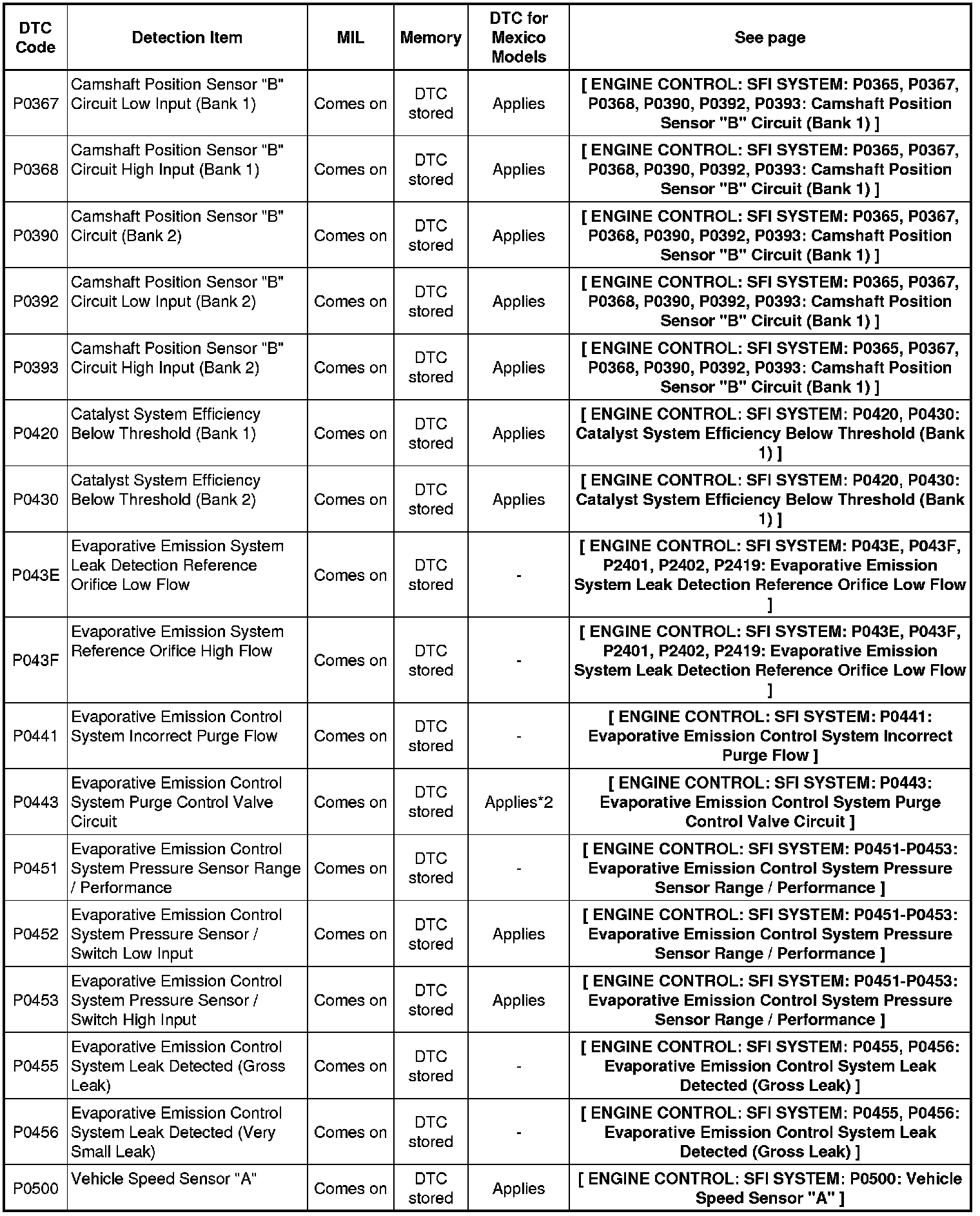

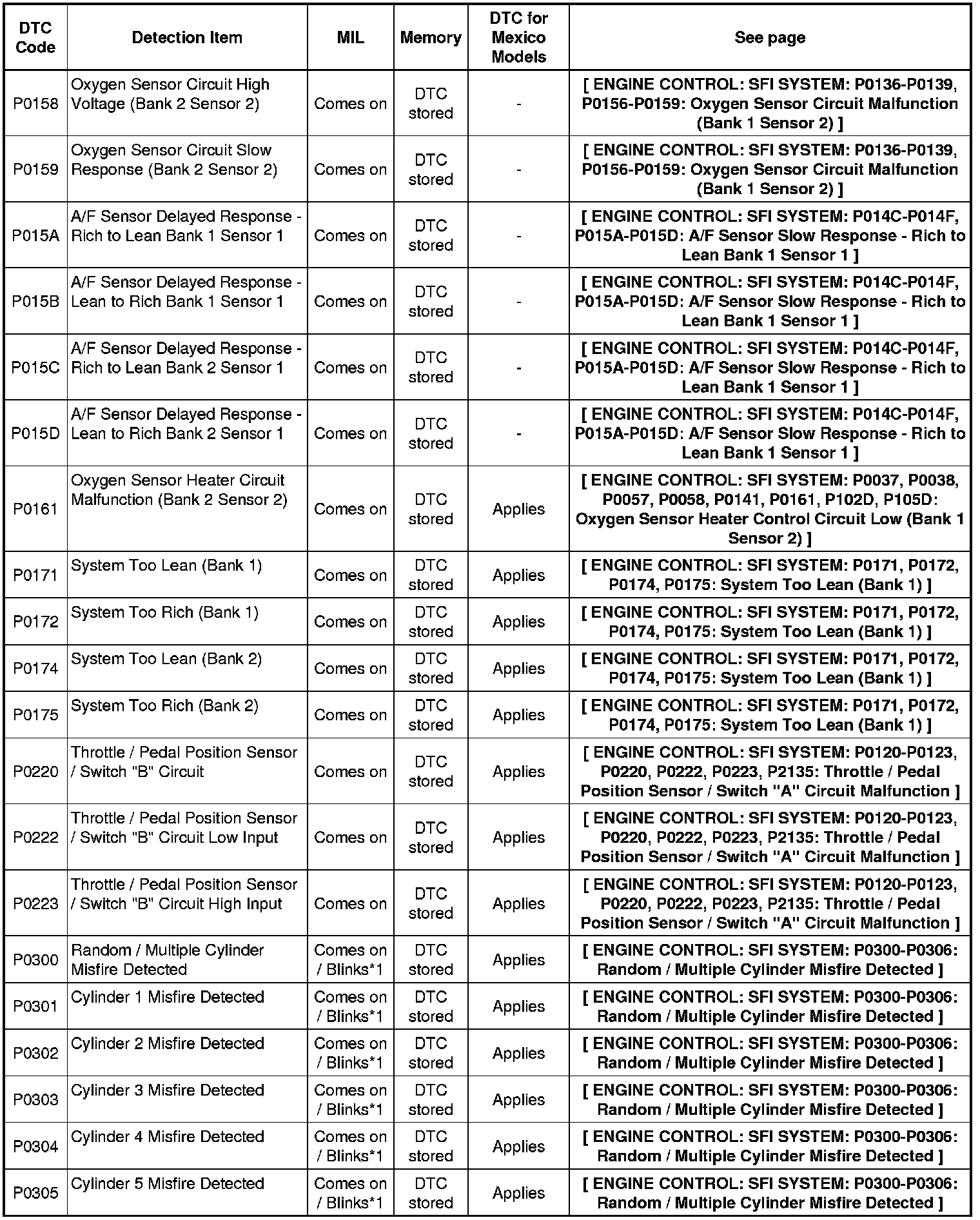

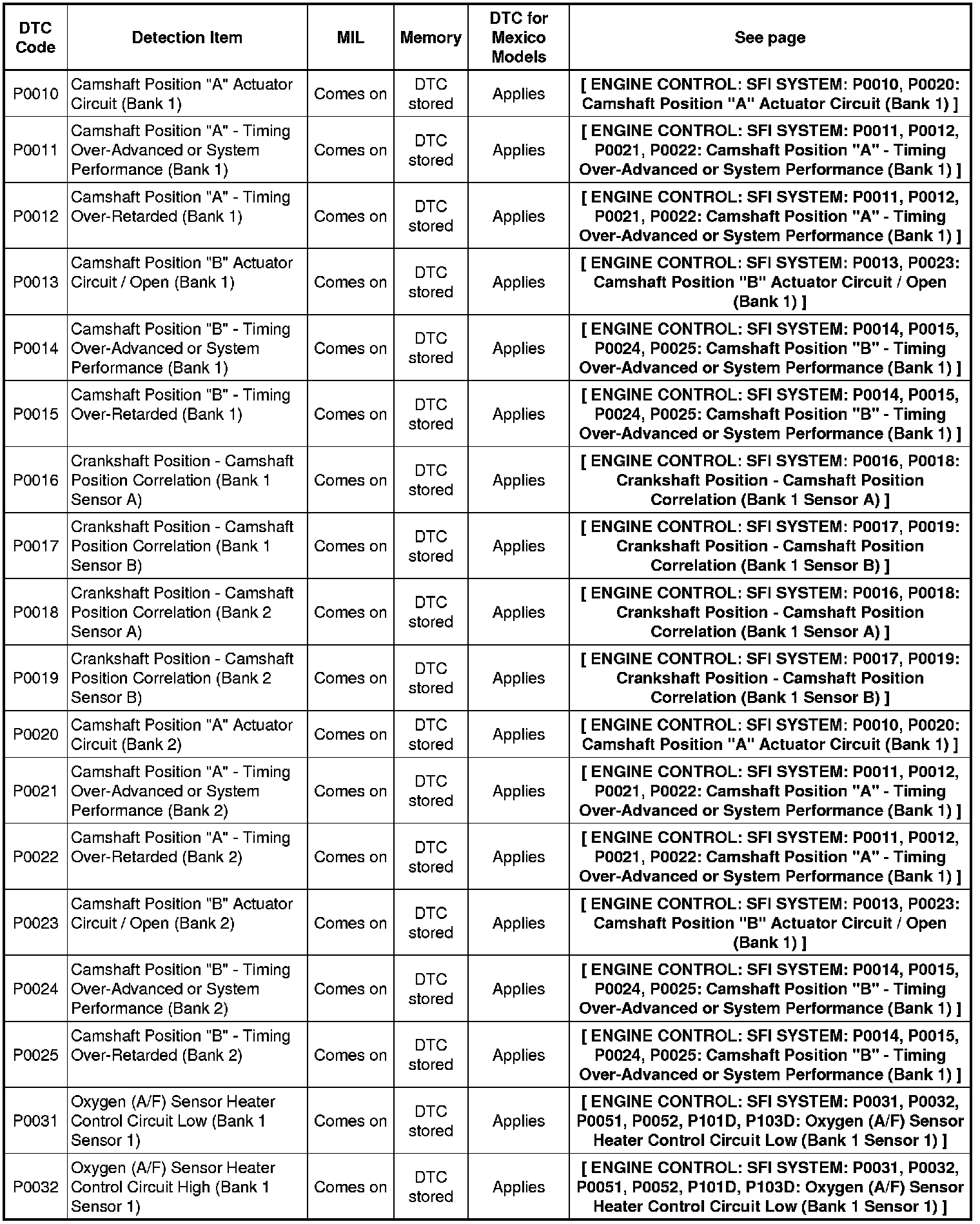

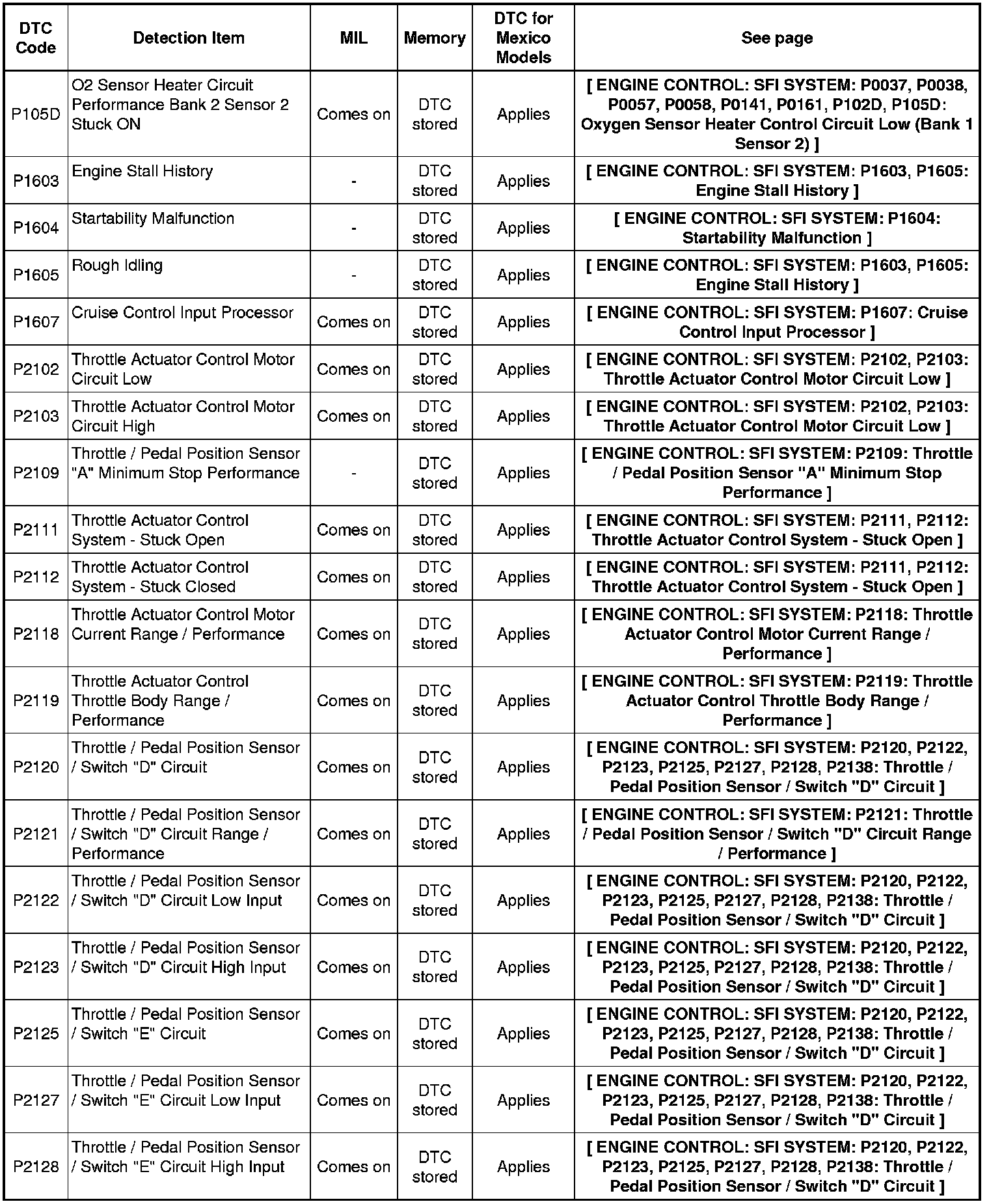

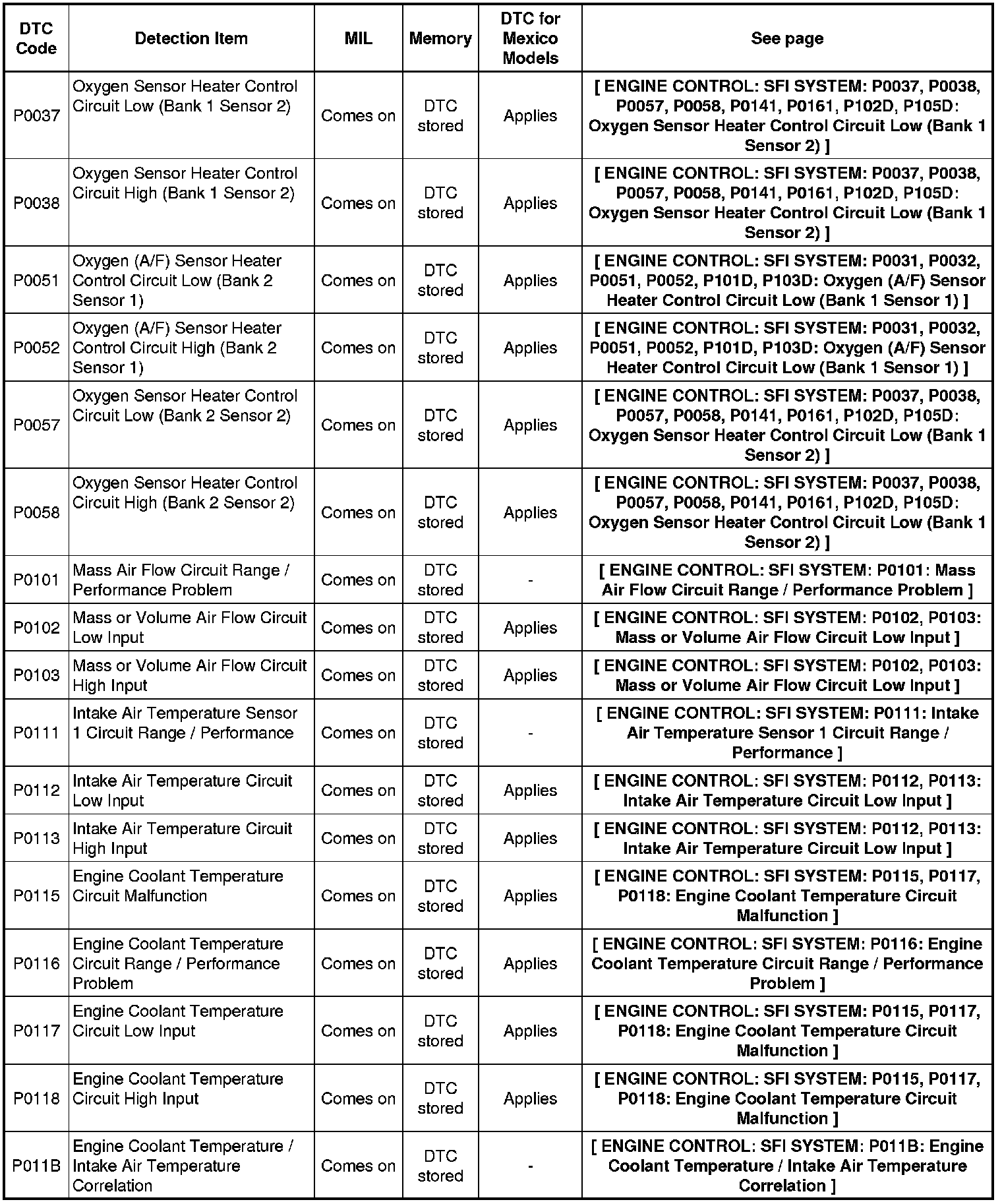

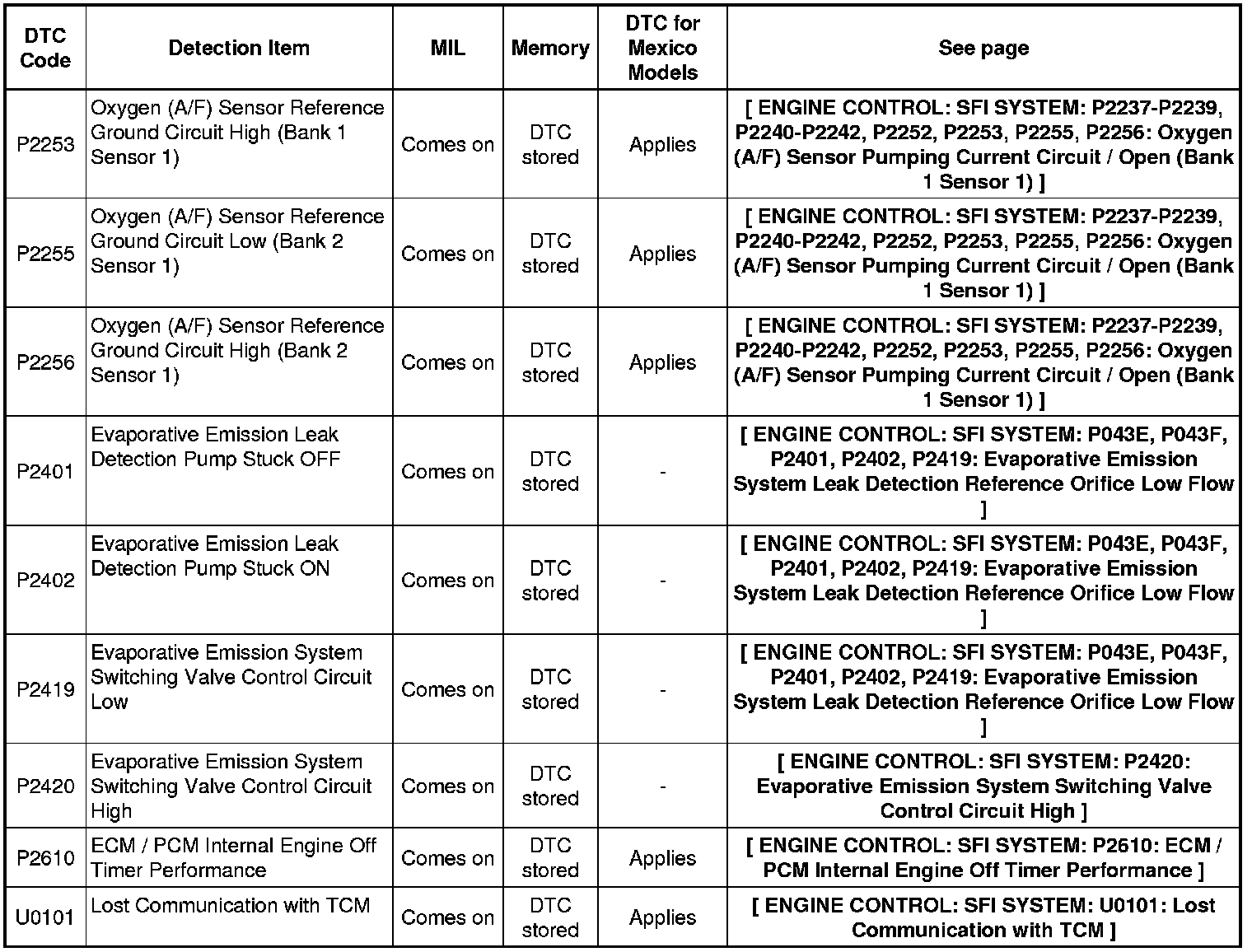

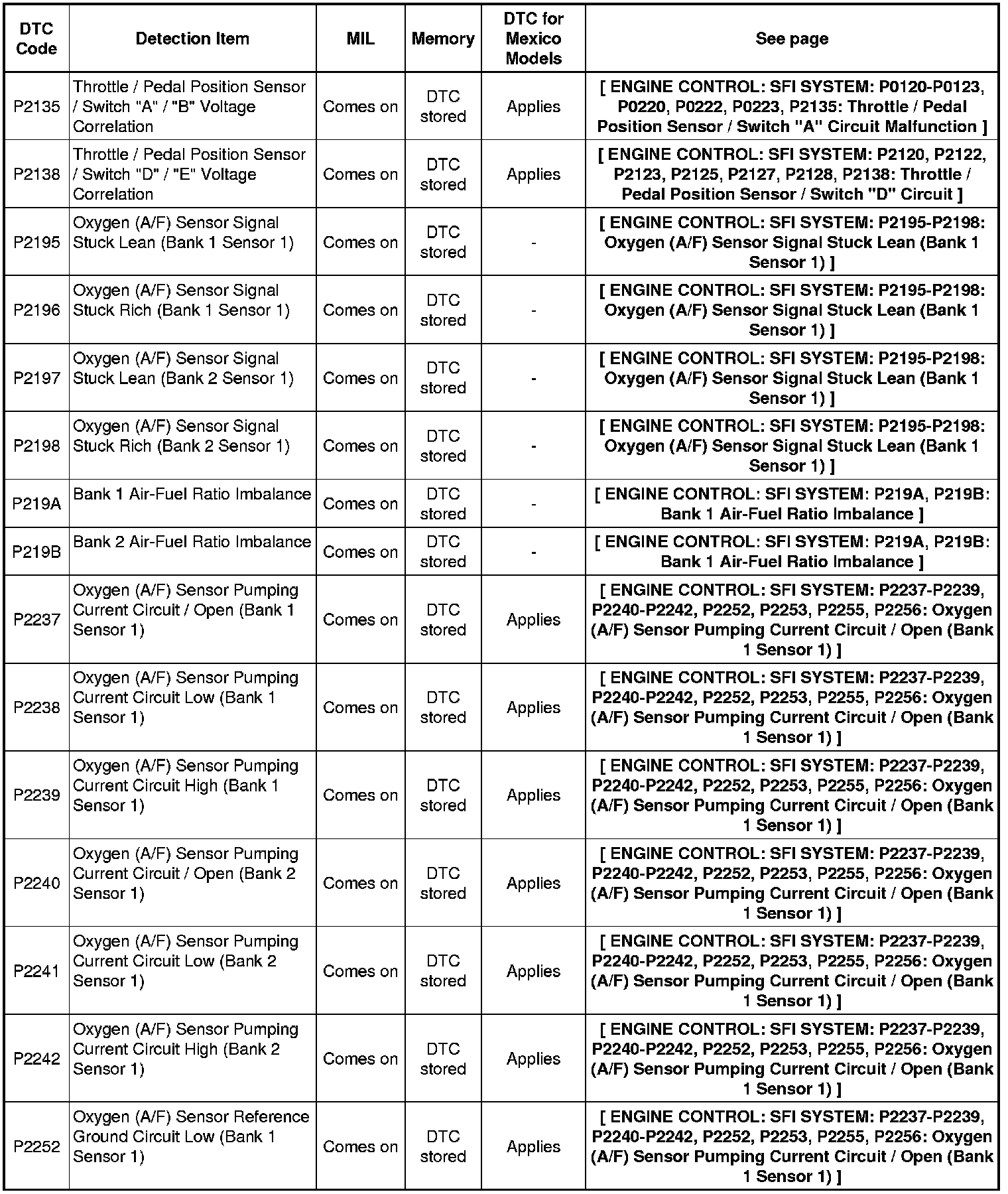

2GR-FE ENGINE CONTROL: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors. If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, follow the "See page" reference.

SFI System









































* *1: The MIL flashes when a catalyst-damaging misfire is detected.

* *2: Only for Mexico models.
