Power Steering System
POWER ASSIST SYSTEMS: POWER STEERING SYSTEM (for 2GR-FE): DIAGNOSTIC TROUBLE CODE CHART
HINT

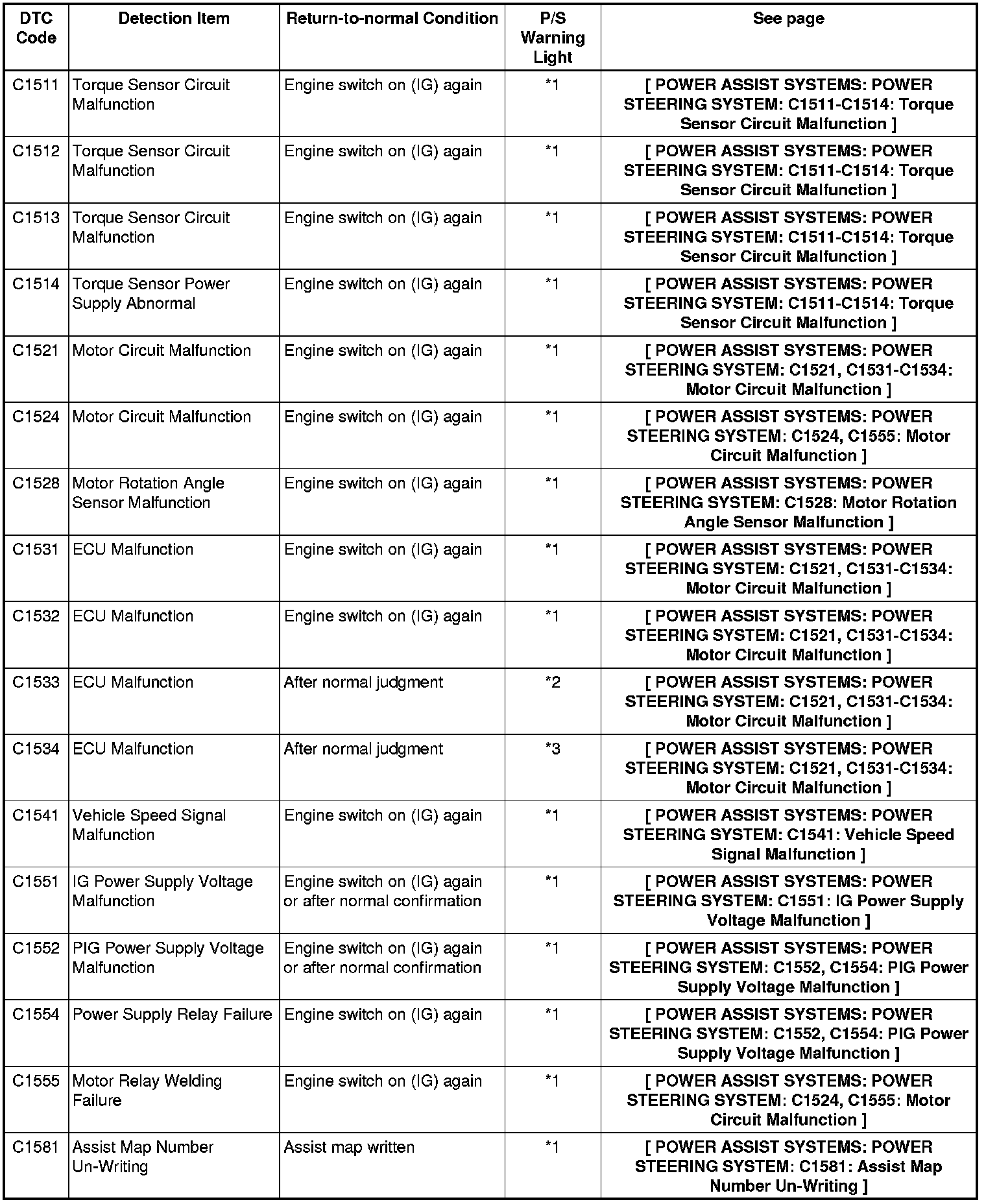

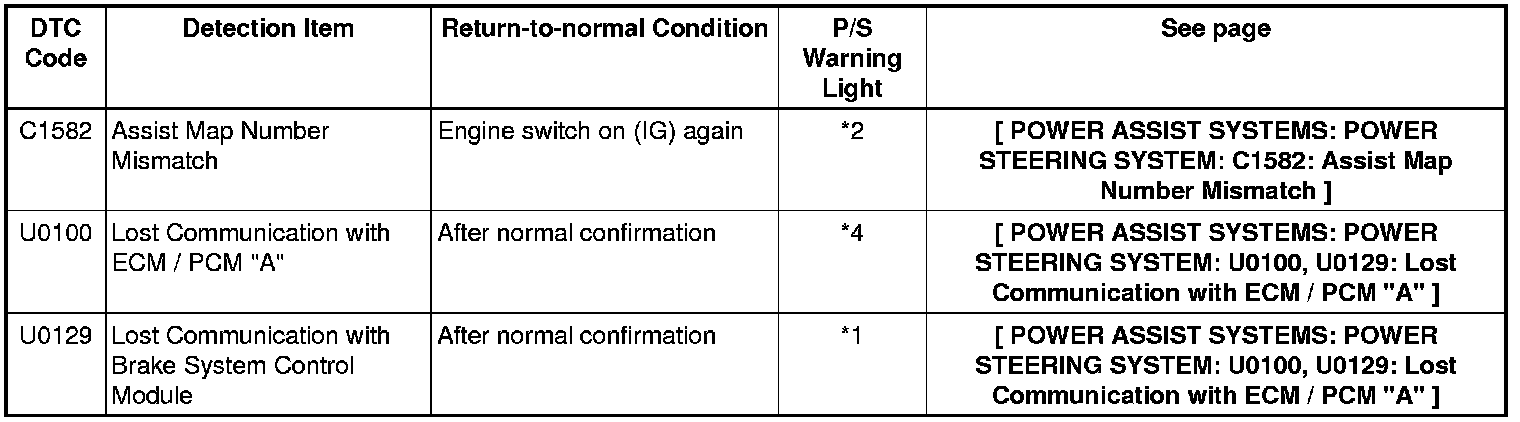

If any DTCs are displayed during the DTC check, inspect the circuit listed for those DTCs. For details of each DTC, refer to the page indicated in the DTC chart.
Power Steering System
HINT
* *1: Warning light comes on
* *2: Warning light turns off
* *3: Torque and motor rotation angle sensor adjustment is set to the default value and control is continued. In this case, the warning light illuminates.
* *4: When an error occurs during steering assist, the warning light does not illuminate. For errors that occur before assist (at the time of the decision to start assist), the warning light illuminates.
