C1A47

PARK ASSIST / MONITORING: BLIND SPOT MONITOR SYSTEM: C1A47: Steering Angle Sensor
C1A47 - Steering Angle Sensor

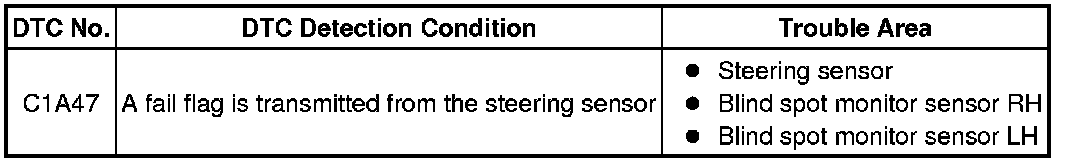

DESCRIPTION

The blind spot monitor sensor receives steering angle signals from the steering sensor via CAN communication.





INSPECTION PROCEDURE

NOTICE:
When checking for DTCs, make sure that the blind spot monitor main switch (warning canceling switch assembly) is on.

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Blind Spot Monitor System.

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE STEERING SENSOR

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

2. REPLACE STEERING SENSOR

(a) Replace the steering sensor Removal.

NEXT -- Continue to next step.

3. RECHECK DTC

(a) Clear the DTCs Blind Spot Monitor System.

(b) Recheck for DTCs and check if the same DTC is output again.

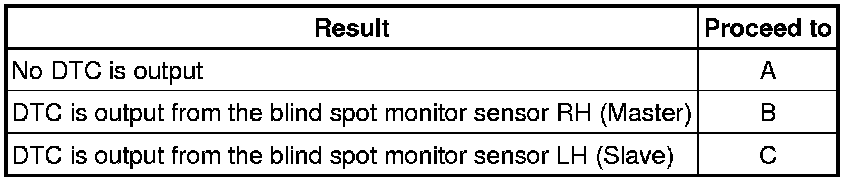

Result:





B -- REPLACE BLIND SPOT MONITOR SENSOR RH

C -- REPLACE BLIND SPOT MONITOR SENSOR LH

A -- END
