B278D

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/ Smart Key System): B278D: Malfunction of ID-BOX Recognition
B278D - Malfunction of ID-BOX Recognition

DESCRIPTION

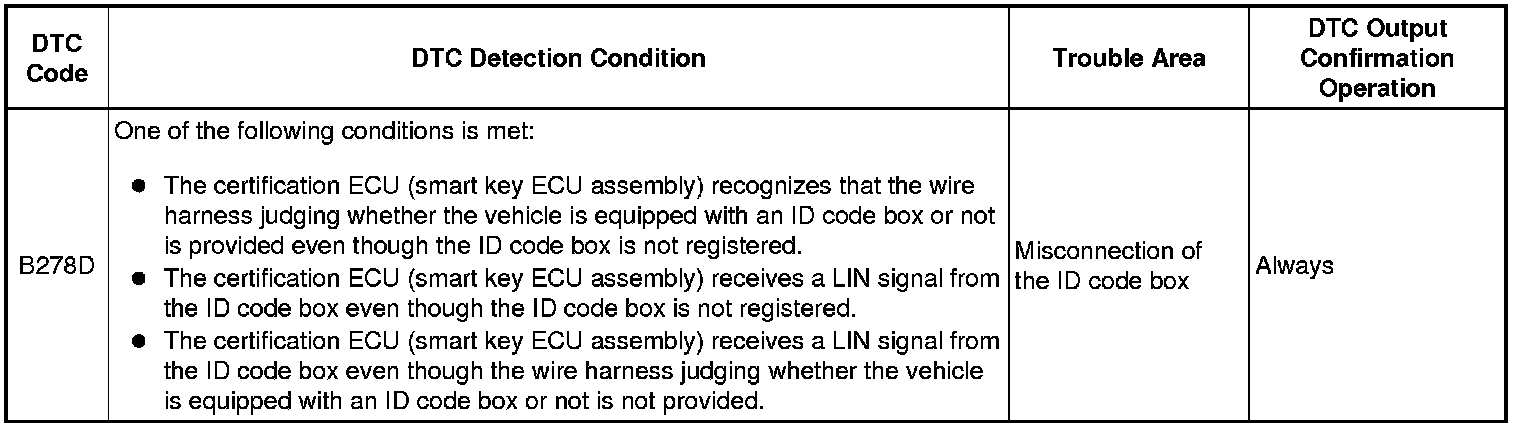

When the certification ECU (smart key ECU assembly) detects an input signal indicating that the vehicle is equipped with an ID code box even though the ID code box is not registered, the certification ECU (smart key ECU assembly) stores this DTC.





* *: Only output while a malfunction is present.

Vehicle Condition and Fail-safe Operation when Malfunction Detected





Related Data List and Active Test





INSPECTION PROCEDURE

NOTICE:
* Before performing following inspection procedure, check that the ID code box (immobiliser code ECU) is not installed on the vehicle.
* Before replacing the certification ECU (smart key ECU assembly), refer to Registration Engine Immobilizer System (w/ Smart Key System).
* After performing repairs, perform the operation that fulfills the DTC output confirmation operation, and then confirm that no DTCs are output again.

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs Engine Immobilizer System (w/ Smart Key System).

NEXT -- Continue to next step.

2. CHECK DTC OUTPUT

(a) Check for DTCs Engine Immobilizer System (w/ Smart Key System).

HINT
Before checking for DTCs, perform the "DTC Output Confirmation Operation" procedure.

OK:

DTC B278D is not output.

NG -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) Removal

OK -- END
