Engine Immobilizer System (w/ Smart Key System)

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/ Smart Key System): B2784: Antenna Coil Open / Short
B2784 - Antenna Coil Open / Short

DESCRIPTION

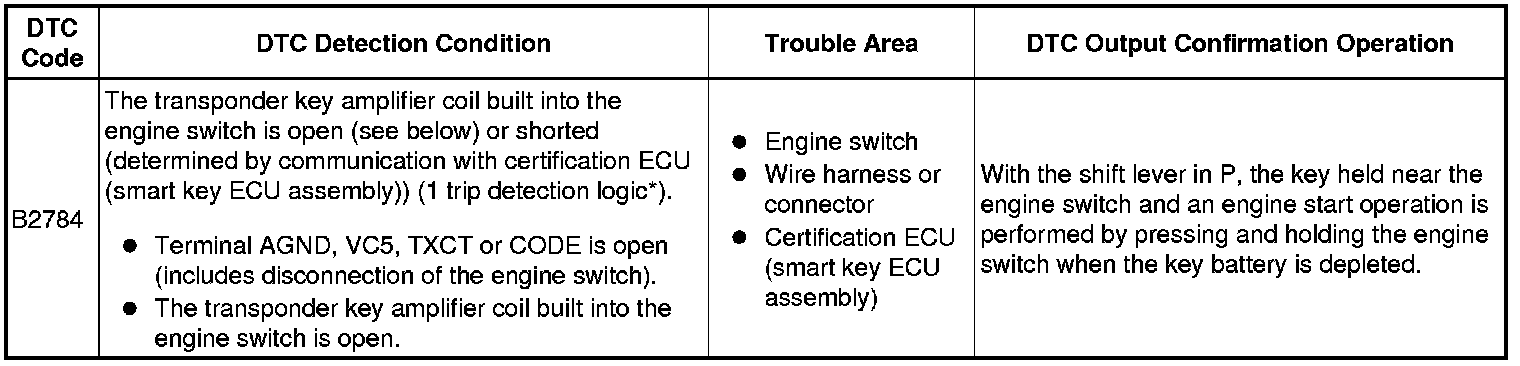

When an open or short circuit is detected in the transponder key amplifier coil built into the engine switch, the certification ECU (smart key ECU assembly) stores this DTC. This DTC is also stored as a past DTC.





* *: Only output while a malfunction is present.

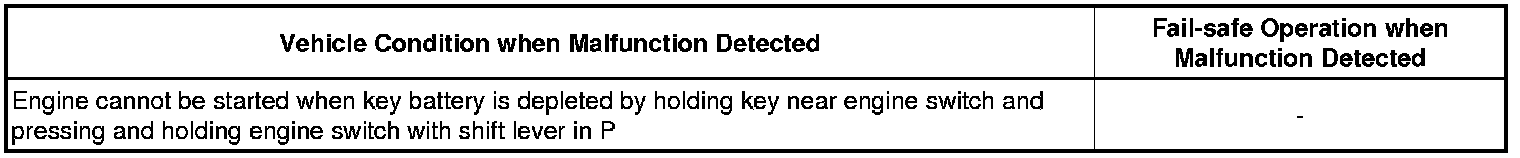

Vehicle Condition and Fail-safe Operation when Malfunction Detected





Related Data List and Active Test

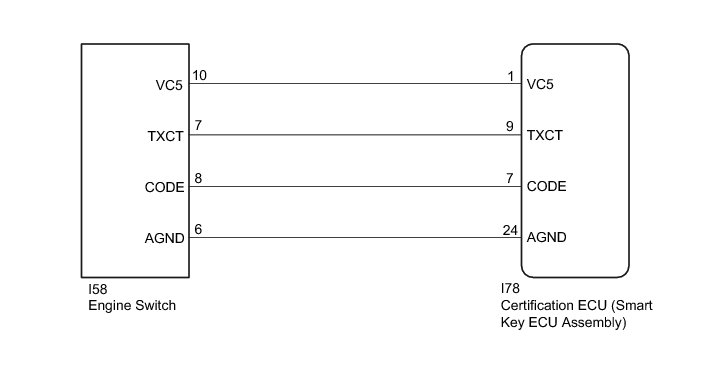

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* Before replacing the certification ECU (smart key ECU assembly), refer to Registration Engine Immobilizer System (w/ Smart Key System).
* After performing repairs, perform the operation that fulfills the DTC output confirmation operation, and then confirm that no DTCs are output again.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - ENGINE SWITCH)

(a) Disconnect the I78 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the I58 engine switch connector.

(c) Measure the resistance according to the value(s) in the table below.

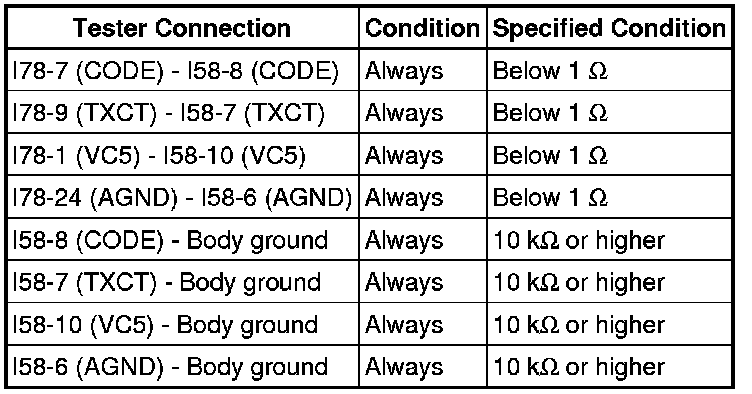

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. REPLACE ENGINE SWITCH

(a) Temporarily replace the engine switch with a new or known good one Removal for 2GR-FE, Removal for 2AR-FE).

NEXT -- Continue to next step.

3. CLEAR DTC

(a) Clear the DTCs Engine Immobilizer System (w/ Smart Key System).

NEXT -- Continue to next step.

4. CHECK DTC OUTPUT

(a) Check for DTCs Engine Immobilizer System (w/ Smart Key System).

HINT
Before checking for DTCs, perform the "DTC Output Confirmation Operation" procedure.

OK:

DTC B2784 is not output.

NG -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) Removal

OK -- END (ENGINE SWITCH WAS DEFECTIVE)
