B2335

THEFT DETERRENT / KEYLESS ENTRY: REMOTE ENGINE STARTER SYSTEM: B2335: Lost Communication with Immobiliser System
B2335 - Lost Communication with Immobiliser System

DESCRIPTION

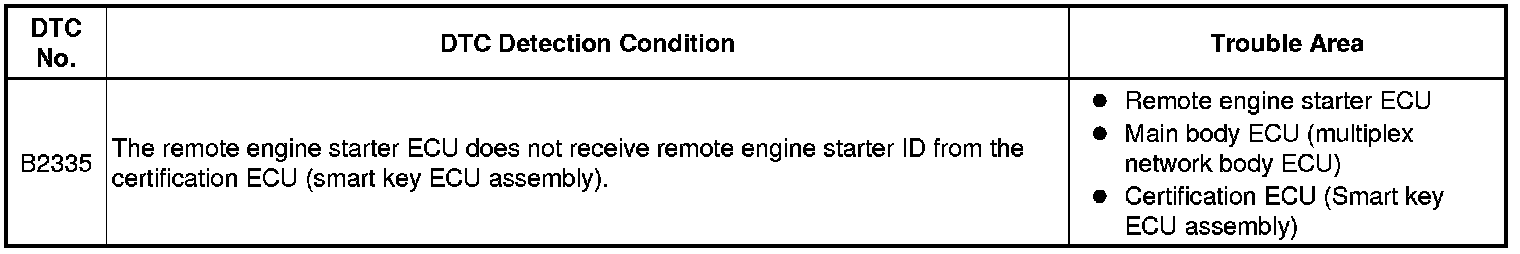

The certification ECU (smart key ECU assembly) sends the remote engine starter ID to the remote engine starter ECU through the main body ECU (multiplex network body ECU) via the CAN and BRAKES communication line. Then, the remote engine starter ECU certifies the ID code and sends the result to the certification ECU (smart key ECU assembly). When the remote engine starter ECU does not receive the remote engine starter ID from the certification ECU (smart key ECU assembly), this DTC is stored.





INSPECTION PROCEDURE

NOTICE:
* Before replacing the remote engine starter ECU, refer to Registration of the remote engine starter system Remote Engine Starter System.
* Before replacing the certification ECU (smart key ECU assembly), refer to Registration of the engine immobiliser system Engine Immobilizer System (w/ Smart Key System).

PROCEDURE

1. CHECK DTC OUTPUT

(a) Clear the DTC Remote Engine Starter System.

(b) Perform the remote engine start operation.

(c) Check for DTCs.

OK:

DTC B2779 and B126A are not output.

NG -- GO TO DIAGNOSTIC TROUBLE CODE CHART Remote Engine Starter System
OK -- Continue to next step.

2. REPLACE REMOTE ENGINE STARTER ECU

(a) Temporarily replace the remote engine starter ECU with a new one Removal.

NEXT -- Continue to next step.

3. REGISTER REMOTE ENGINE STARTER ID

(a) Register the remote engine starter ID Remote Engine Starter System.

NEXT -- Continue to next step.

4. CHECK DTC OUTPUT

(a) Clear the DTC Remote Engine Starter System.

(b) Perform the remote engine start operation.

(c) Check for DTCs.

OK:

DTC B2335 is not output.

NG -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

OK -- END (REMOTE ENGINE STARTER ECU WAS DEFECTIVE)

5. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Temporarily replace the certification ECU (smart key ECU assembly) with a new one Removal.

NEXT -- Continue to next step.

6. PERFORM REGISTRATION

(a) Register the key and ECU communication ID Engine Immobilizer System (w/ Smart Key System).

(b) Register the remote engine starter ID Remote Engine Starter System.

NEXT -- Continue to next step.

7. CHECK DTC OUTPUT

(a) Clear the DTC Remote Engine Starter System.

(b) Perform the remote engine start operation.

(c) Check for DTCs.

OK:

DTC B2335 is not output.

NG -- REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) Removal

OK -- END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)
