THEFT DETERRENT / KEYLESS ENTRY: SMART KEY SYSTEM (for Start Function): B2285: Steering Lock Position Signal Circuit Malfunction
B2285 - Steering Lock Position Signal Circuit Malfunction
DESCRIPTION

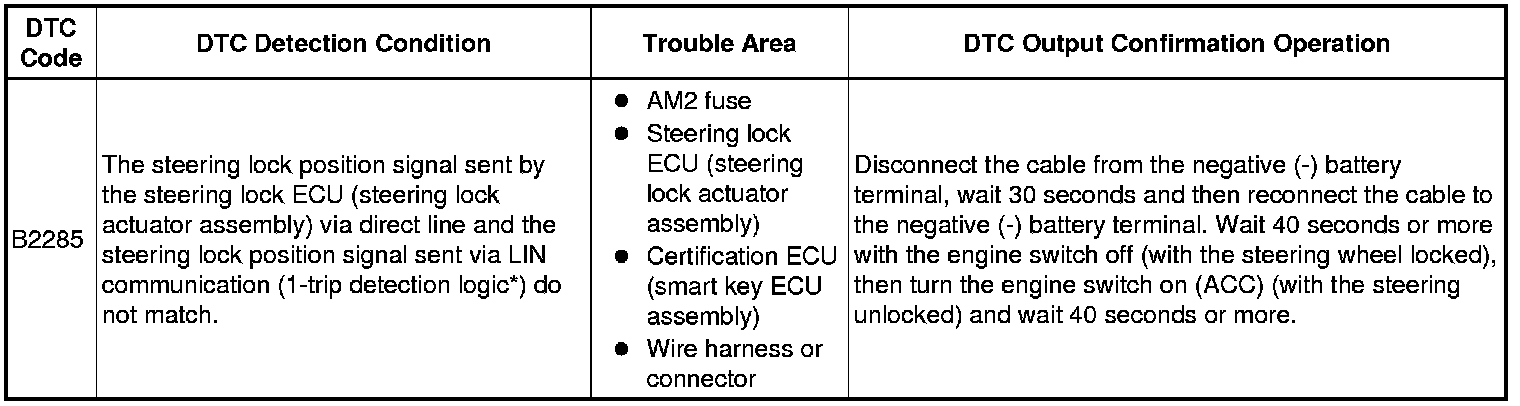

This DTC is stored when the steering lock position signal sent by the steering lock ECU (steering lock actuator assembly) via direct line and the steering lock position signal sent via LIN communication do not match.
HINT
When the cable is disconnected and reconnected to the negative (-) battery terminal, the power source mode returns to the state it was in before the cable was disconnected.
* *: Only detected while a malfunction is present and the engine switch is on (IG)
Vehicle Condition and Fail-safe Function when Malfunction Detected

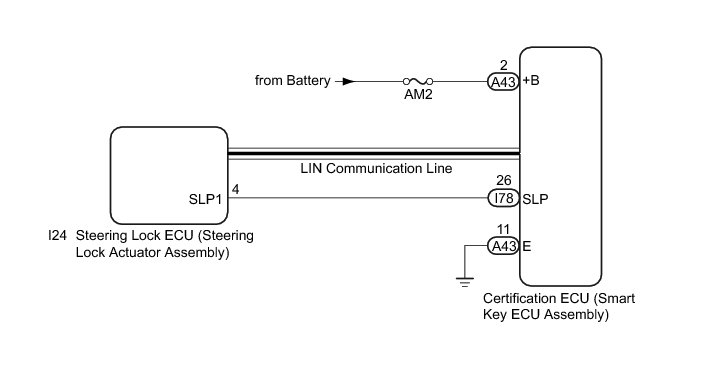

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
* When using the Techstream with the engine switch off, perform either of the following: 1) Turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and vehicle begins, or 2) connect the Techstream to the vehicle, select the vehicle type under manual mode, and then enter the following menus: Body Electrical / Smart Key / Trouble Codes.
* The smart key system (for Start Function) uses a multiplex communication system (LIN communication system) and the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting How To Proceed With Troubleshooting. Troubleshoot the smart key system (for Start Function) after confirming that the communication systems are functioning properly.
* Before replacing the certification ECU (smart key ECU assembly) or steering lock ECU (steering lock actuator assembly), refer to the smart key system (for Start Function) precaution Smart Key System (for Start Function).
* Inspect the fuses of circuits related to this system before performing the following inspection procedure.
* After performing repairs, perform the operation that fulfills the DTC output confirmation operation, and then confirm that no DTCs are output again.
HINT
Related Data List and Active Test Items
PROCEDURE
1. CHECK FOR DTC (LIN COMMUNICATION SYSTEM)
(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
LIN communication system DTC B2785 is not output simultaneously.
HINT
* If the steering wheel cannot be locked or unlocked, the engine switch cannot be turned on (IG) and the engine cannot be started.
* If LIN communication is not available, the steering wheel cannot be locked or unlocked.
NG -- GO TO DTC B2785 B2785
OK -- Continue to next step.
2. READ VALUE USING TECHSTREAM (STEERING UNLOCK SWITCH)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Power Source Control / Data List.
(e) According to the display on the Techstream, read the Data List.

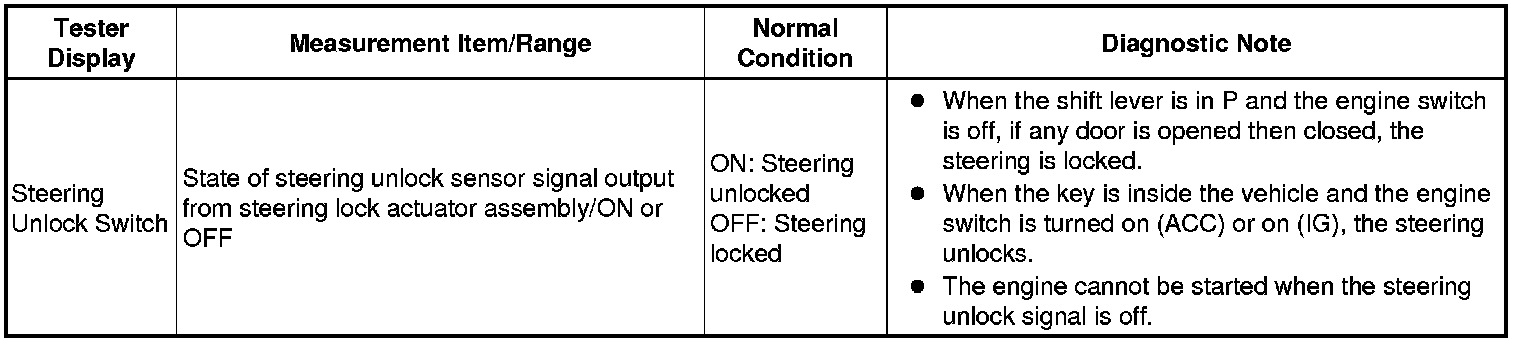

Power Source Control

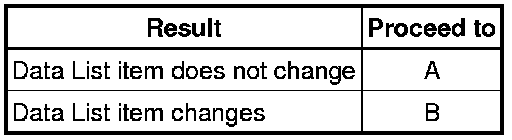

Result:
B -- REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) Disassembly
A -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (POWER SOURCE) B2271
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR IN CIRCUIT CONNECTED TO POWER SOURCE
OK -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (GROUND) B2271
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
5. INSPECT STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)
(a) Measure the resistance according to the value(s) in the table below.

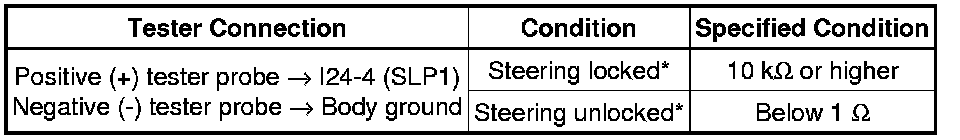

Standard Resistance:
HINT
* *: If any of the doors are opened then closed with the shift lever in P and the engine switch off, the steering wheel will be locked. If the engine switch is then turned on (ACC) or on (IG), the steering wheel will be unlocked.
* DTC B2285 may be stored due to a malfunction in the steering lock ECU (steering lock actuator assembly). The steering lock position signal and unlock position signal are sent from the steering lock ECU (steering lock actuator assembly) to the certification ECU (smart key ECU assembly) individually.
Text in Illustration
NG -- REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) Disassembly
OK -- Continue to next step.
6. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)
(a) Disconnect the I78 connector from the certification ECU (smart key ECU assembly).
(b) Disconnect the I24 connector from the steering lock ECU (steering lock actuator assembly).
(c) Measure the resistance according to the value(s) in the table below.

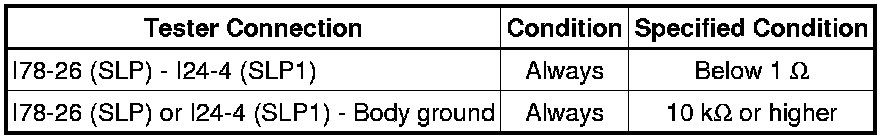

Standard Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) Removal
