B2277 - Detecting Vehicle Submersion

DESCRIPTION

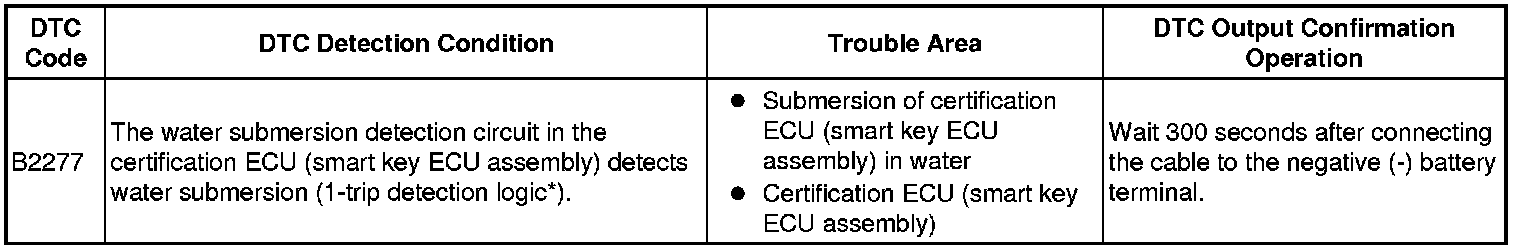

This DTC is stored when a malfunction in the water submersion detection circuit in the certification ECU (smart key ECU assembly) is detected.

HINT
When the cable is disconnected and reconnected to the negative (-) battery terminal, the power source mode returns to the state it was in before the cable was disconnected.





* *: Only detected while a malfunction is present.

Vehicle Condition and Fail-safe Function when Malfunction Detected





INSPECTION PROCEDURE

NOTICE:
* When using the Techstream with the engine switch off, perform either of the following: 1) Turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and vehicle begins, or 2) connect the Techstream to the vehicle, select the vehicle type under manual mode, and then enter the following menus: Body Electrical / Smart Key / Trouble Codes.
* The smart key system (for Start Function) uses a multiplex communication system (LIN communication system) and the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting How To Proceed With Troubleshooting. Troubleshoot the smart key system (for Start Function) after confirming that the communication systems are functioning properly.
* Before replacing the certification ECU (smart key ECU assembly), refer to the smart key system (for Start Function) precaution Smart Key System (for Start Function).
* After performing repairs, perform the operation that fulfills the DTC output confirmation operation, and then confirm that no DTCs are output again.

HINT

Related Data List and Active Test Items





HINT
Before proceeding with troubleshooting, check if there are any signs of water damage to the power management control ECU. If there are any signs of water damage, replace the power management control ECU and take measures against the cause of the water damage.

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Smart Key System (for Start Function).

(b) Turn the engine switch on (IG).

(c) After 330 seconds have elapsed, check if the DTC has been output again.

OK:

DTC B2277 is not output

HINT
If there are any signs that water was present, before replacing the certification ECU (smart key ECU assembly), take measures to prevent any further water entry.

NG -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
