B1794

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: B1794: Open in Occupant Classification ECU Battery Positive Line
B1794 - Open in Occupant Classification ECU Battery Positive Line

DESCRIPTION

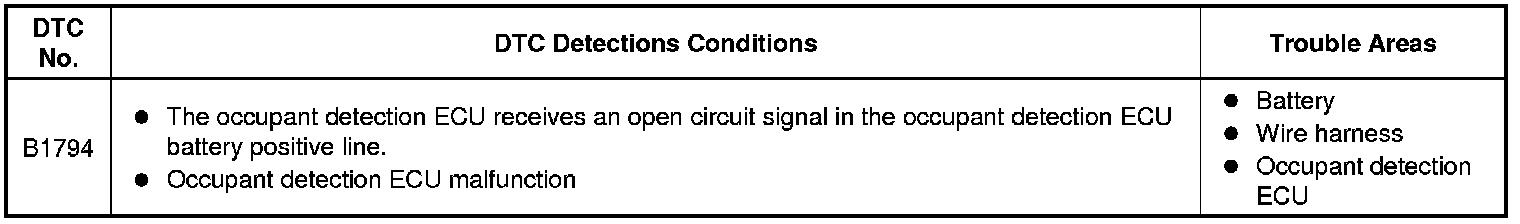

DTC B1794 is stored when a malfunction is detected in the occupant detection ECU battery positive line.





HINT
When DTC B1650/32 is detected as a result of troubleshooting for the airbag system, check the DTCs stored in the occupant detection ECU. When DTC B1794 is output, perform troubleshooting for the DTC.

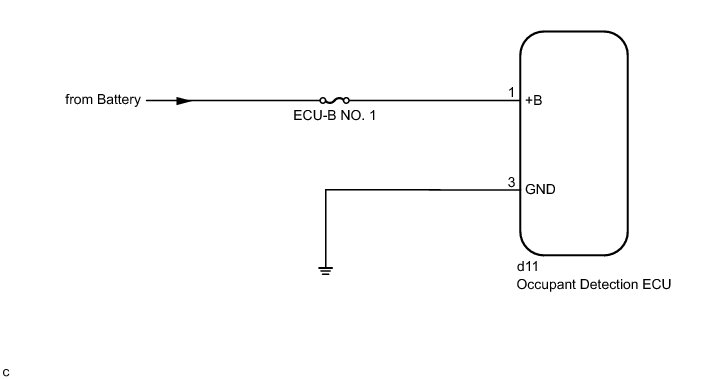

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work Service Precautions.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK BATTERY VOLTAGE

(a) Measure the voltage of the battery.

Standard Voltage:

11 to 14 V

Result:





B -- INSPECT CHARGING SYSTEM AND BATTERY Component Tests and General Diagnostics

C -- INSPECT CHARGING SYSTEM AND BATTERY Component Tests and General Diagnostics
A -- Continue to next step.

2. CHECK WIRE HARNESS (SOURCE VOLTAGE)

(a) Turn the ignition switch off.





(b) Disconnect the cable from the negative (-) battery terminal.

(c) Disconnect the connector from the occupant detection ECU.

(d) Connect the cable to the negative (-) battery terminal.

(e) Turn the ignition switch to ON.

(f) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(g) Turn the ignition switch off.

(h) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE WIRE HARNESS
OK -- Continue to next step.

3. CHECK DTC

(a) Disconnect the cable from the negative (-) battery terminal.

(b) Connect the connector to the occupant detection ECU.

(c) Connect the cable to the negative (-) battery terminal.

(d) Clear the DTCs stored in the occupant detection ECU Reading and Clearing Diagnostic Trouble Codes.

(e) Clear the DTCs stored in the airbag sensor assembly Separate Type Yaw Rate Sensor for Separate Type Yaw Rate Sensor, Built-in Type Yaw Rate Sensor for Built-in Type Yaw Rate Sensor).

(f) Turn the ignition switch off.

(g) Turn the ignition switch to ON, and wait for at least 10 seconds.

(h) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1794 is not output.

HINT
Codes other than DTC B1794 may be output at this time, but they are not related to this check.

(i) Turn the ignition switch off.

NG -- REPLACE OCCUPANT DETECTION ECU

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

4. REPLACE OCCUPANT DETECTION ECU

(a) Disconnect the cable from the negative (-) battery terminal.

(b) Replace the occupant detection ECU Removal.

(c) Connect the cable to the negative (-) battery terminal.

NEXT -- Continue to next step.

5. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK

(a) Using the Techstream, perform Zero Point Calibration and Sensitivity Check Programming and Relearning.

NEXT -- END
