Removal

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: TRANSMISSION WIRE: REMOVAL

1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

Removal

2. REMOVE TRANSMISSION WIRE

(a) Disconnect the connector of the transmission revolution sensor.





(b) Disconnect the 7 connectors of the shift solenoid valve.

(c) Disengage the clamp and disconnect the transmission wire.

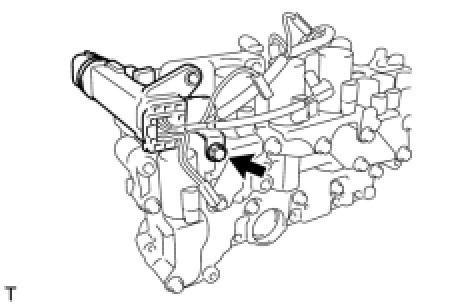

(d) Remove the bolt and lock plate and disconnect the temperature sensor from the transmission valve body assembly.

(e) Remove the bolt and lock plate and remove the transmission wire from the transmission valve body assembly.
